Features:

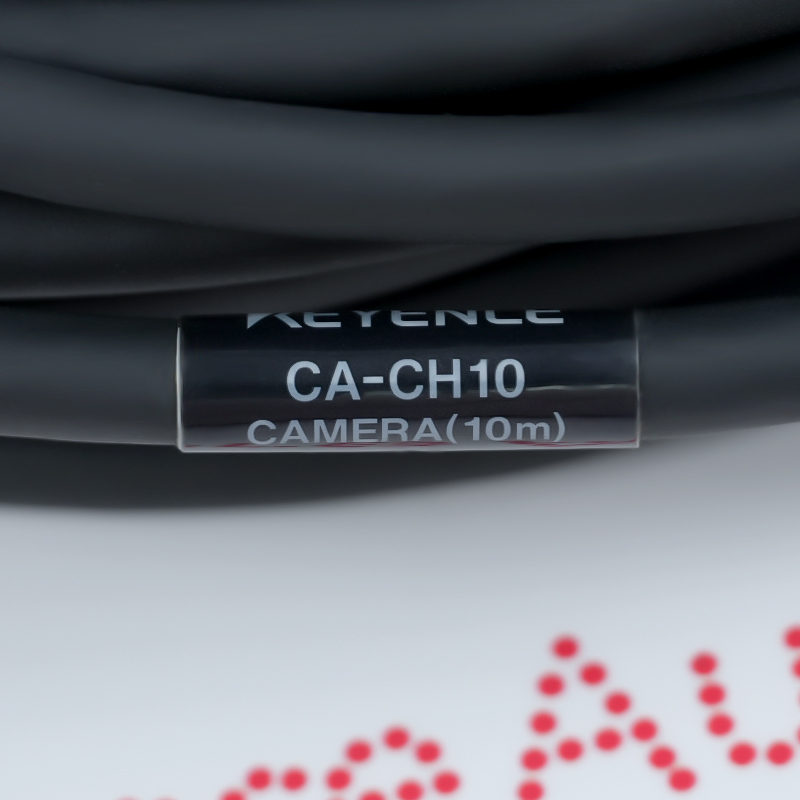

- CA-CH10 is identified by cable length 10 m within the documented KEYENCE high-speed vision camera cables configuration.
- The official specification gives cable function as High-speed camera connection, which must be retained during selection.
- Commissioning must also preserve cable version (Standard CA-CH10) and the stated connection limits.

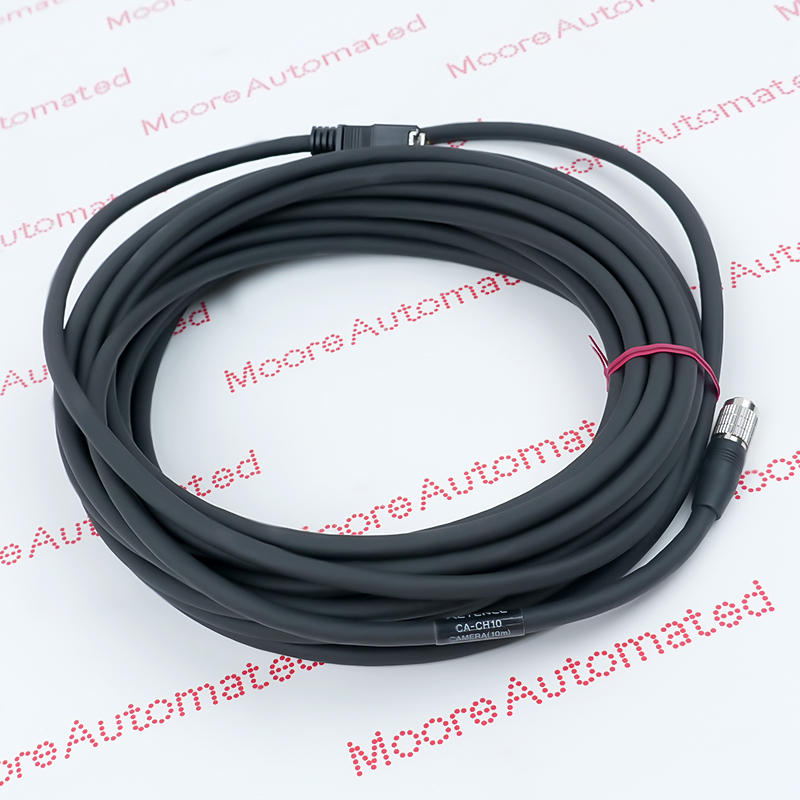

A 10 m camera cable for high-speed KEYENCE vision-system cameras. The CH10 code denotes the standard high-speed cable and must be distinguished from BP environment-resistant, L-shaped, flex-resistant and repeater-dedicated 10 m variants. Selection must preserve the complete label identity, connected-equipment compatibility and manufacturer installation limits.
Manufacturer reference: official KEYENCE high-speed vision camera cables documentation.
Moore Automated supports exact-item verification and spare-part enquiries for CA-CH10.
No public single-model PDF was located for CA-CH10; use the verified related internal resource before requesting exact documentation, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Confirm the complete CA-CH10 identity and compare cable length, cable function and cable version with the installed design before approving a replacement.
Match both the camera and controller to the documented high-speed cable interface. Verify whether the installation needs a standard, flex-resistant, environment-resistant, L-shaped or repeater-dedicated cable.
Route the 10 m cable within bend-radius and strain-relief limits, separate it from power wiring, lock both connectors without twisting and validate image transfer at the configured camera speed.
