Features:
- The 8 mm focal length provides a wide field of view for compatible machine-vision camera formats.
- Low published TV distortion helps preserve geometry for inspection, measurement and position-finding tasks.
- A manual F1.4–F16 aperture supports exposure and depth-of-field adjustment for the installed illumination.

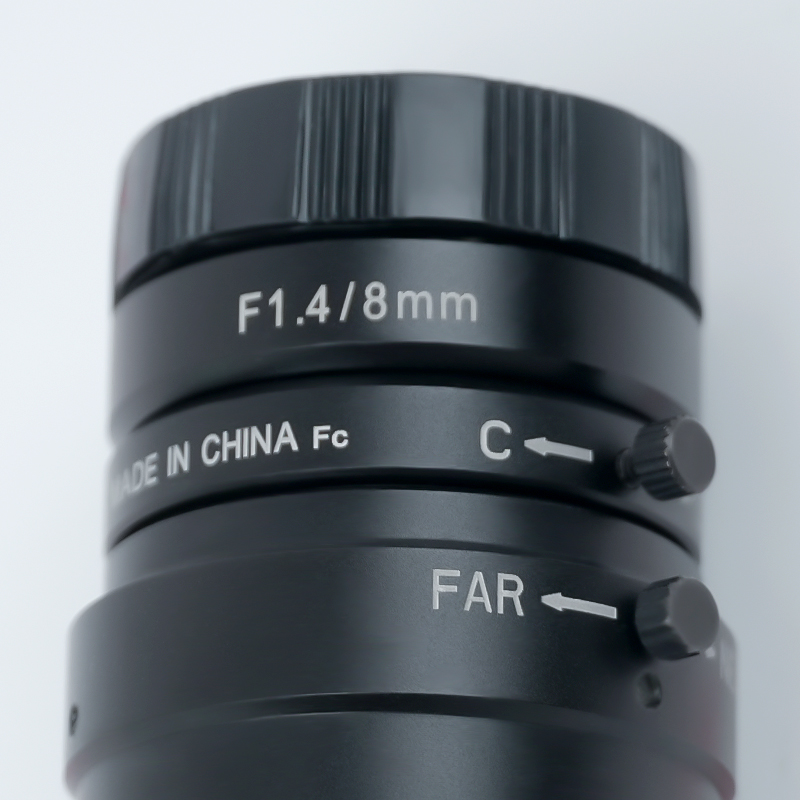

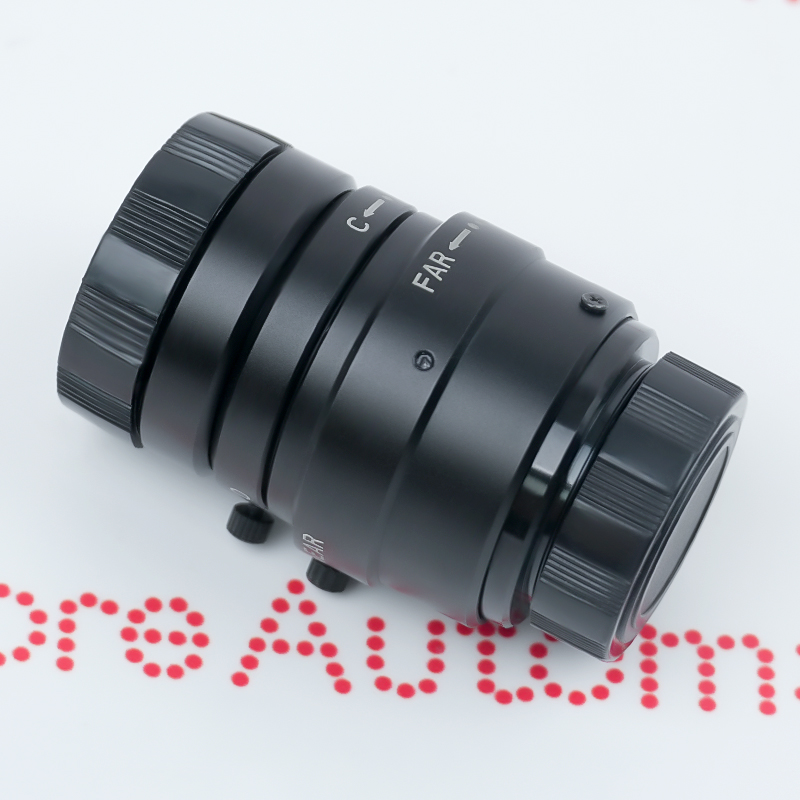

The KEYENCE CA-LH8 is an 8 mm C-mount machine-vision lens for image sensors up to 2/3 inch. Its F1.4–F16 aperture, 0.1 m minimum working distance and low TV distortion support wide-field inspection while retaining detail across the image.
Manufacturer reference: KEYENCE CA-LH8 official English model specifications.
Exact-model verification and sourcing support are available for CA-LH8.
KEYENCE CA-LH8 official documentation and relevant product resources, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
KEYENCE publishes -0.6% TV distortion for the supported 2/3-inch format and -0.28% for a 1/3-inch format. Calibrate the completed camera-and-lens assembly when dimensional or robot-coordinate results depend on image geometry.
Verify thread condition, flange seating, focus travel and aperture locking before installation. Add the manufacturer-specified close-up ring for CV-020, CV-070, CV-035C/M or CV-H035C/M applications.
The lens supports image sensors up to 2/3 inch. A smaller sensor crops the available image circle and changes the effective field of view, so validate the camera format and working distance together.
