Features:
- 3500/32M 4-Channel Relay Module
- Each relay of the four channels is switch selectable for Normally Deenergized or Normally Energized
- The 3500/32M requires 3500 Rack Configuration software, version 4.5 or later

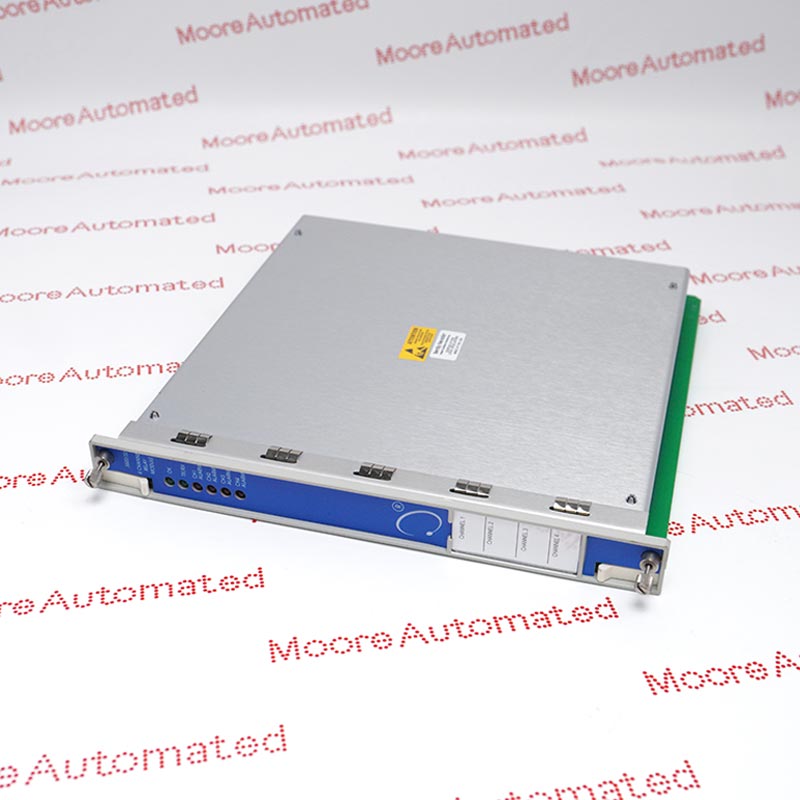

The 4-Channel Relay Module is a full-height module that provides four relay outputs. Any number of 4-Channel Relay Modules can be placed in any of the slots to the right of the Transient Data Interface Module. Each output of the 4-Channel Relay Module can be independently programmed to perform voting logic. Each relay utilized on the 4-Channel Relay Module includes Alarm Drive Logic.
Programming for the Alarm Drive Logic uses AND and OR logic, and can use alarming inputs (Alert and Danger statuses), Not- OK, or individual PPLs from any monitor channel or any combination of monitor channels in the rack. You can program this Alarm Drive to meet your application needs using the Bently Nevada™ 3500 Rack Configuration Software.
The 3500/32 125712-01 Bently Nevada 4 Channel Relay Module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 3500/32 125712-01 4 Channel Relay Module Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
- Model: 3500/32 125712-01
- Warranty: One-year warranty
- Condition: Brand new, original, in stock
- Product Family: 3500/32M 4-Channel Relay Module
3500 4-Channel Relay Module
3500/32 -Axx-Bxx
A: Output Module
01: 4-Channel Relay Output Module
B: Agency Approval
00: None
01: cNRTLus (Class I, Div 2)
02: ATEX/IECEx/CSA (Class I, Zone 2)
Select the following spare parts
149986-02: Spare 4-Channel Relay Control Module
125720-01: Spare 4-Channel Relay Output Module (available for repair only)
125720-02: Spare 4-Channel Relay Output Module for hazardous area systems and functional safety systems
04425545: Grounding wrist strap (single use)
00580453: Connector header, internal termination, 16-position, green
00580436: Connector header, internal termination, 6-position, green
166M2390: Connector header, push-inspring type (alternative for PN 00580436)

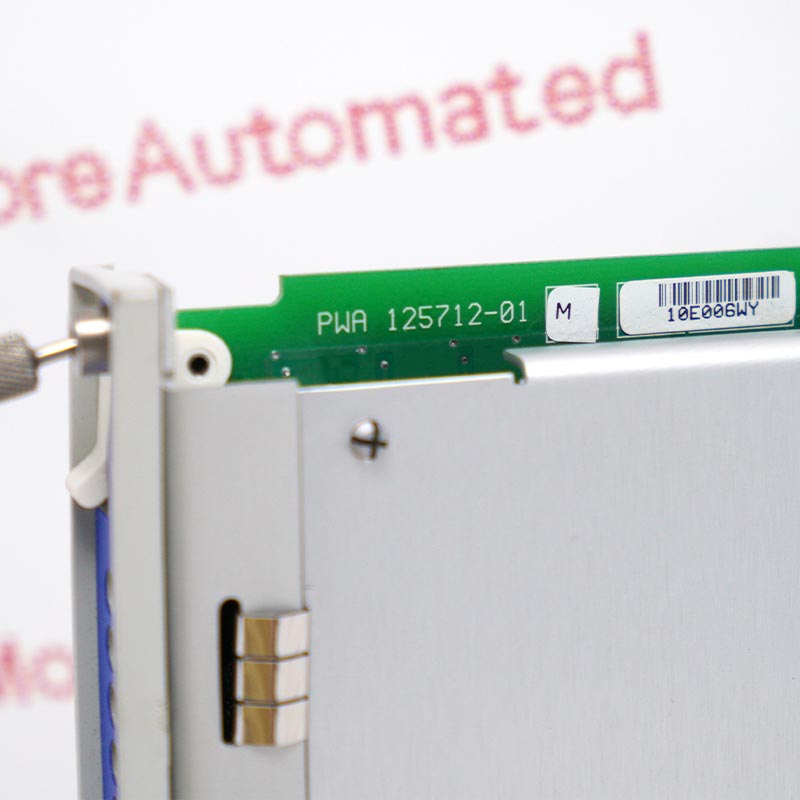

The 125712-01 main module card on the front panel must always be paired with its corresponding rear interface terminal block (referred to as the 125720-01 4-channel relay I/O module), where the physical field trip line terminates.
