Features:
- Seven-inch 800 × 480 analog-resistive touch display with 16 million colors and 12 MB configuration memory.
- Integrated two-port PROFINET switch plus combined RS422/485 interface for the documented MPI/PROFIBUS DP connection.
- 24 VDC panel with IP65 front protection; project conversion, cutout, interfaces and accessories must be checked before replacement.

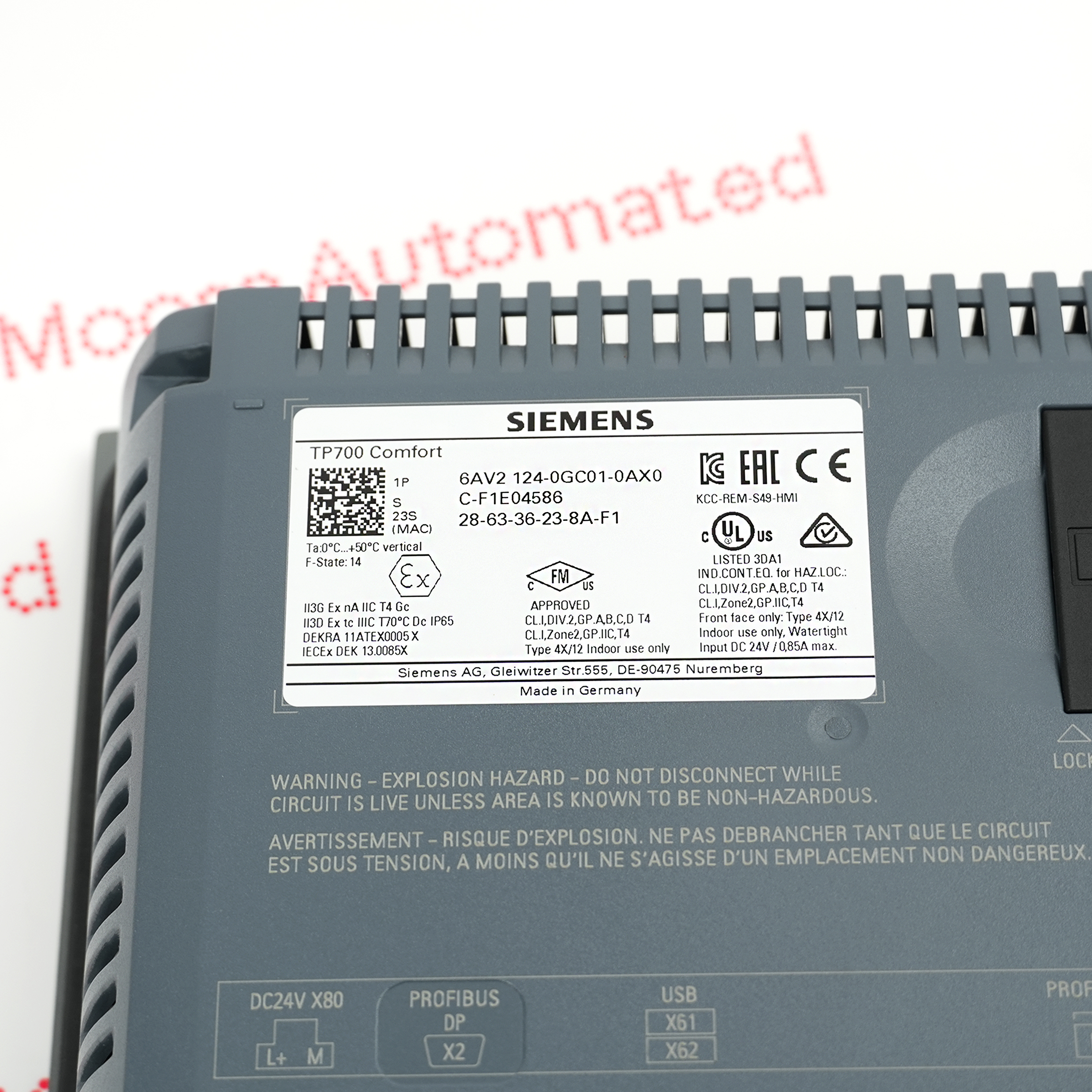

Siemens 6AV2124-0GC01-0AX0 is a TP700 Comfort operator panel with a 7-inch widescreen TFT display, touch operation and 12 MB configuration memory. It provides PROFINET through an integrated two-port switch and MPI/PROFIBUS DP through the combined RS422/485 interface. Replacement must include the electrical, mechanical and project-engineering checks rather than relying on screen size alone.
Siemens official product data for 6AV2124-0GC01-0AX0. The ratings below are taken from the exact article datasheet, not from a different TP700 generation. Accessories and cables are included only when stated in the written quotation.
Siemens lists 6AV2124-0GC01-0AX0 in its official product data. Current order and successor status must be checked in Siemens Industry Mall for the destination and date of purchase; a product-page status must not be replaced with an unsupported EOL statement.
Siemens 6AV2124-0GC01-0AX0 official product datasheet, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Verify the 7-inch 800 × 480 panel, 24 VDC supply range and cabinet cutout before mechanical replacement.
Match PROFINET, MPI/PROFIBUS DP, USB, device addressing and the existing communication drivers.
Back up and validate the WinCC project, scripts, recipes, archives, users and memory-card data before commissioning.
