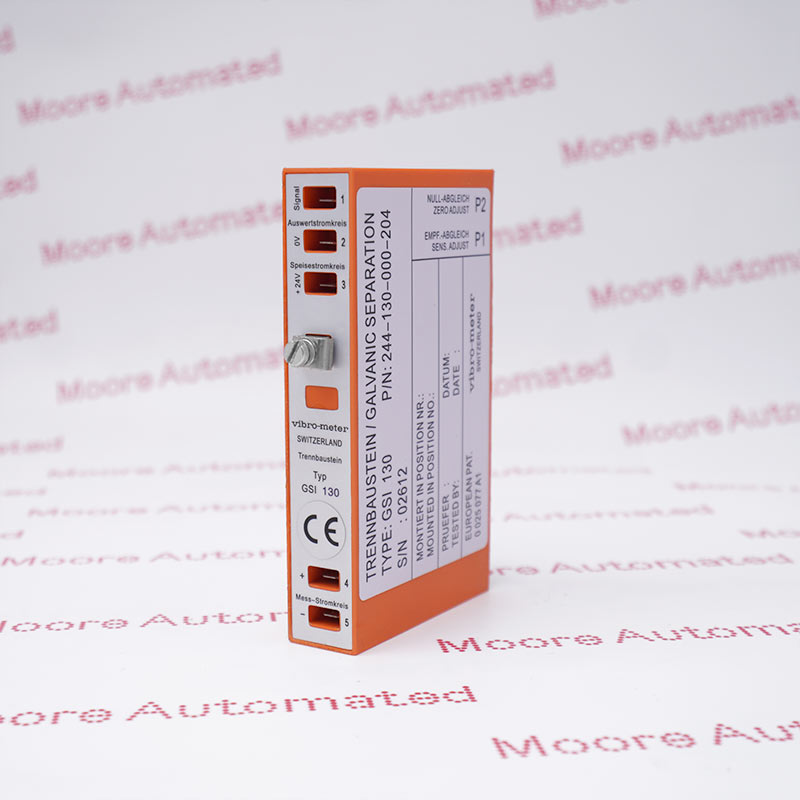

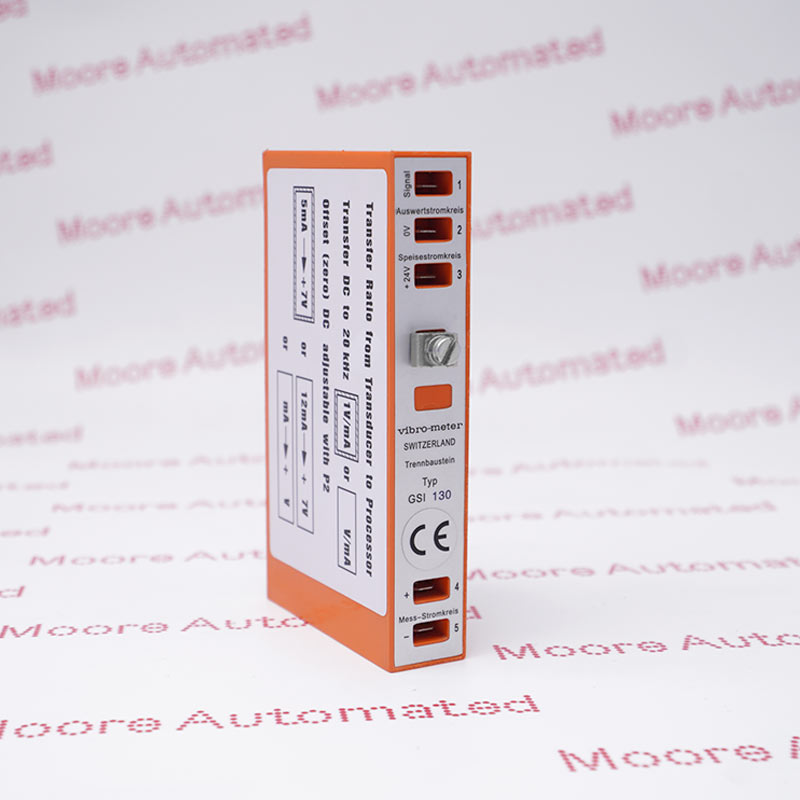

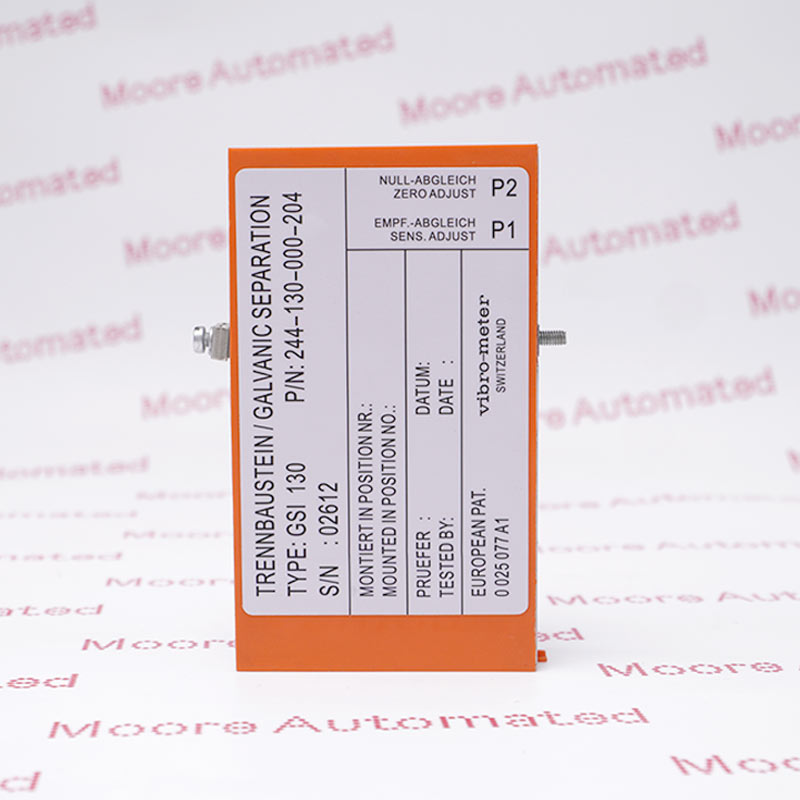

      Vibro-Meter GSI130 244-130-000-204
      Vibro-Meter GSI130 244-130-000-204
      Vibro-Meter GSI130 244-130-000-204
      Vibro-Meter GSI130 244-130-000-204
      Vibro-Meter GSI130 244-130-000-204
      Vibro-Meter GSI130 244-130-000-204
      · Product image is representative; revision or series may vary. Contact us to request a specific version.
      Get a Quote

      GSI130 244-130-000-204

      Galvanic Separation Unit
      In Stock
      Ships by Tuesday, June 23
      Fast Shipping Available

      Product Information:

      The GSI 130 (part number 244-130-000-204) is a high-reliability, electrically isolated sensor power supply unit manufactured by Meggitt (vibro-meter®). It serves as a dual-purpose safety interface, providing stable power to field-installed regulators while also providing electrical isolation for dynamic signals sent back to the monitoring processor. Designed for two-wire current transmission systems, this power supply unit is commonly used in piezoelectric sensor chains (e.g., pairing an IPC 704 charge amplifier with a CP 106 dynamic pressure sensor).

      Warranty Policy
      We provide 1 year warranty for all remaining parts.
      The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
      Return Notice
      The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
      In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
      Shiping Mode
      Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
      Parts Availability
      Moore automated offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
      Expand All
      Collapse all

      Technical specifications for GSI130 244-130-000-204

      • Manufacturer:
        Vibro-Meter
      • Product Category:
        General Automation
      • Spare Part Number:
        244-130-000-204
      • Estimated shipping dimensions:
        2.4 x 13 x 7.4 cm
      • Weight:
        0.43 kg
      • Tariff Code:
        8537101190
      • Country of origin:
        USA
      • Place of shipment:
        Xiamen, Fujian, China
      • Supply voltage (to GSI):
        +24 V ±5% (e.g. from UVC... processor)
      • Ripple (100 Hz):
        100 mV pp max.
      • Short-circuit current:
        60 mA
      • Pass-band:
        DC to 10 kHz ±0.5%, -1 dB at 20 kHz
      • Transfer function:
        1 V/mA factory set (potentiometer P1)
      • Temperature drift:
        <200 ppm/°C
      • Linearity:
        ±0.5% over dynamic measuring range
      • Galvanic separation between the input and output circuit:
        ≥4 kV RMS
      • Electrical connections:
        5 lugs, type AMP-Faston 6.3
      • Operating temperature:
        0°C to +55°C
      • Ambient Storage Temperature:
        -20°C to +70°C
      • CENELEC/PTB certificate:
        Ex-80/2184, type EEx ib II C
      • Max. residual on signal:
        12 mVpp at 5 mA DC 25 mVpp at 12 mA DC
      • Stock:
        100
      Ask for Quote

      Alternative Names

      GSI130 244-130-000-204 GS1130 244-130-000-204 GSII30 244-I30-000-204 GSI13O 244-13O-OOO-2O4 GSI 130 GSI 130 244-130-000-204 GSI 122 GSI122 244-122-000-20 244-130-000-20 GSI 122 244-122-000-20 GSI 130 244-130-000-20

      Information

      Overview Manuals Installation & Wiring Reference

      Features:

      • Vibration monitoring
      • Long distance signal transmission
      • CENELEC / PTB approved CSA approved
      The GSI 122/130 galvanic separation unit is used for supplying transducers and conditioners and for reading off signals given by them. It is used in 2-wire transmission systems. In a more general application it serves for supplying any electronic system with a consumption of less than 20 mA. This unit outputs a voltage signal proportional to the current consumed by the conditioner. This voltage signal is directly available for analysis of the conditioner signal.

      The GSI 122/130 module avoids any problems due to voltage differences between the measuring point and the signal processing (e.g. earth loops). The GSI 122 Version 20x conforms to the CENELEC and CSA standards concerning the powering of transducers and conditioners mounted in explosive areas.

      The GSI130 244-130-000-204 Vibro-Meter Galvanic Separation Unit may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
      Vibro-Meter GSI130 244-130-000-204 Galvanic Separation Unit manual(Datasheets), Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
      Using the GSI 130 interface in the circuit layout eliminates the need for a traditional Zener safety barrier. This avoids secondary voltage drops, thereby maximizing the total permissible transmission line length and improving the system's dynamic measurement range. Terminal configurations and standard loop schematics can be viewed directly on page 1 of the official Vibro-Meter GSI 122 and GSI 130 technical datasheets.

      Manuals

      Technical notes

      The Meggitt Vibro-Meter GSI130 (244-130-000-204) is a high-performance ionization isolation module designed to power sensors in hazardous environments and eliminate ground loop noise in two-wire transmissions. This module offers electrical isolation up to 4 kV RMS, supports signal processing from DC to 20 kHz, and DC zero-offset calibration up to 12 mA / +7 V.

      Ask our team:

      Related Products

      Browsing history

      FAQ

      View All Faqs
      • How can the GSI130 244-130-000-204 improve measurement accuracy in advanced machinery monitoring systems using its electrical isolation architecture and high-integrity signal conditioning capabilities?
        The GSI130 244-130-000-204 is designed to provide reliable electrical isolation and stable signal transmission, thus helping to maintain accurate machinery condition data acquisition.
      • Why is the GSI130 244-130-000-204 considered a key electrical isolation interface in vibration monitoring and machinery protection applications, providing superior signal integrity?
        The GSI130 244-130-000-204 minimizes electrical interference and supports reliable communication between sensing devices and monitoring electronics.
      • What operational advantages does the GSI130 244-130-000-204 offer with its industrial-grade isolation technology, optimized electrical performance, and strong environmental adaptability?
        The GSI130 244-130-000-204 enhances the reliability of monitoring systems while protecting critical instruments from electrical interference and grounding loop effects.
      • How does the GSI130 244-130-000-204 maintain excellent signal linearity and suppress common-mode interference when deployed in high-precision rotating equipment monitoring infrastructure?
        The GSI130 244-130-000-204 is designed to maintain measurement accuracy and ensure signal conditioning stability in harsh industrial environments.
      • How does the GSI130 244-130-000-204 minimize signal attenuation through advanced electrical isolation technology and precise signal management?
        The GSI130 244-130-000-204 supports accurate diagnostics by maintaining interference-free signal transmission throughout the monitoring chain.
