Features:
- Integrated uncontrolled standstill and safe stop
- Integrated connection for motor holding brake and temperature sensor
- Two fully independent power inverters in one inverter module contained in 2-axis modules

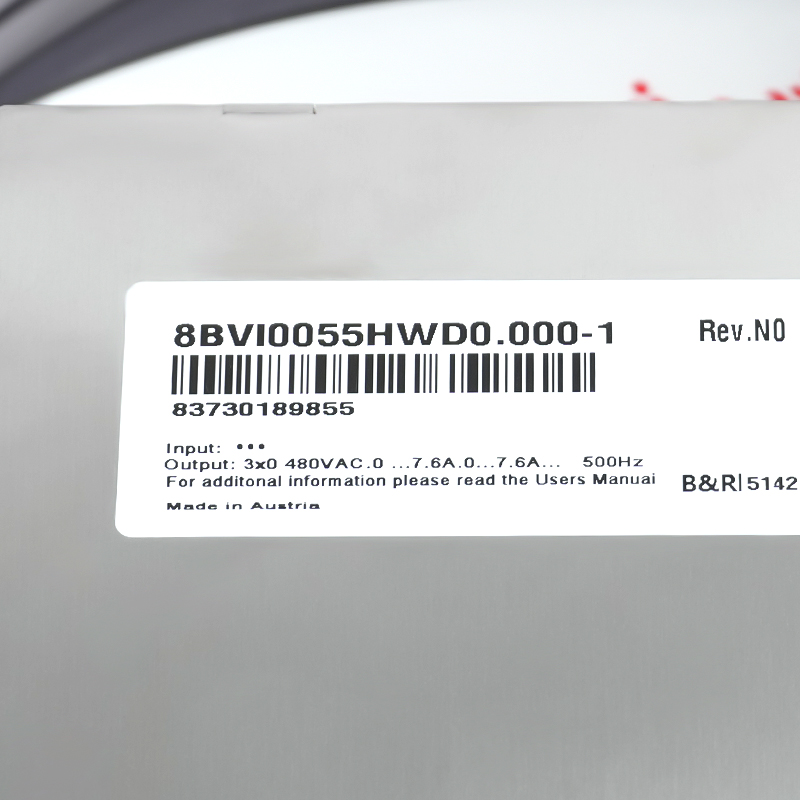

The 8BVI0055HWD0.000-1 is a high-performance dual-axis frequency converter module from the B&R ACOPOSmulti series. Its core function is to provide precise motion control for servo motors in industrial automation systems. Each axis can output 7.6 A of continuous current, supporting motor power up to 5.5 kW. This module integrates two completely independent frequency converters within a compact housing, allowing simultaneous independent control of two servo axes, significantly saving control cabinet installation space and reducing system wiring costs.
Furthermore, this module boasts a high degree of intelligence and safety integration. It integrates uncontrolled shutdown and safety stop mechanisms, effectively ensuring safe equipment shutdown in the event of sudden malfunctions. The module also integrates a motor brake interface, temperature sensor connection terminals, and two ACOPOSmulti plug-in slots, allowing direct monitoring of motor status and flexible expansion of communication or encoder interfaces, providing a highly scalable and safe drive solution for precision production lines.
The 8BVI0055HWD0.000-1 B&R Servo drive inverter module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
B&R 8BVI0055HWD0.000-1 Servo drive inverter module manual(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
High-end lithium battery and paper winding/unwinding equipment: Utilizing the high synchronization and energy-sharing characteristics of dual-axis inverters, it controls the tension and drive axes of lithium battery coating and rewinding machines, achieving alignment and stable speed under high dynamic conditions.
Multi-axis linkage intelligent industrial robots/robotic arms: In handling, stacking, or SCARA robotic arms, the integrated dual-axis design enables coordinated control of articulated motors, significantly reducing the physical space of the control cabinet and simplifying wiring.
Multi-row high-speed packaging and filling equipment: Combining electronic cams and tracking shear control algorithms, it achieves rapid transport, synchronous sealing, and cutting of packaging bags on multi-channel packaging lines.
Precision CNC machine tools and metal forming machinery: Driving X/Y dual-axis gantry machining or dual-screw high-precision interpolation motion ensures micron-level machining accuracy and rapid response.
This power module does not include external electrical connectors at the time of shipment. For on-site installation, you will need to select and order a dedicated screw terminal block kit (product part number 8BZVI0055D0.000-1A) separately. This kit includes all the standard connectors required for controlling the motor brake, DC bus connection, and motor power cable.
