Features:
- The documented value for cable length is 8.5 ft (2.59 m); retain this dimension when checking mounting geometry, routing and compatibility with the installed hardware.
- The documented value for system role is Maintains 50 Ω impedance; retain this specification when matching the exact 3300 xl 8mm extension cable and installed Bently Nevada 3300 hardware.
- The documented value for capacitance is 98 pF/m (30 pF/ft); retain this specification when matching the exact 3300 xl 8mm extension cable and installed Bently Nevada 3300 hardware.

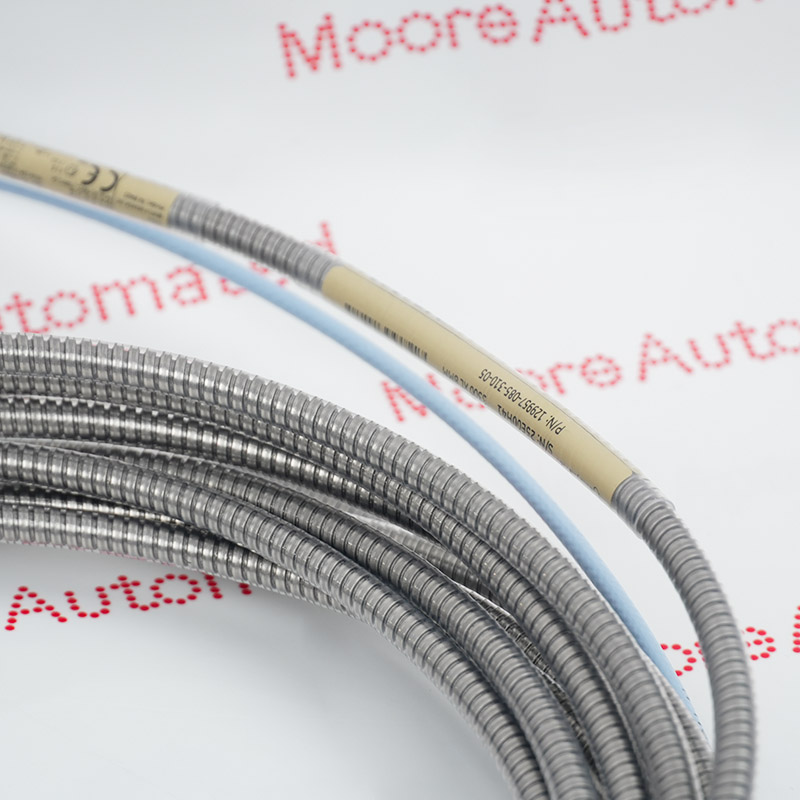

129957-085-310-05 is a Bently Nevada 3300 XL 8mm Extension Cable for the 3300 system. It connects the probe to a compatible Proximitor Sensor. Key specifications: Cable Length: 8.5 ft (2.59 m); System Role: Maintains 50 Ω impedance. Match the full order code and hardware before replacement.
Confirm the complete 129957-085-310-05 order code, installed signal chain, mounting arrangement and commissioning record before replacement.
The exact 129957-085-310-05 execution must be confirmed by its complete order code, condition, connected 3300 system and included scope before purchase or replacement.
Bently Nevada 129957-085-310-05 3300 XL 8mm Extension Cable manual (Datasheet), Link
No verified product-specific PDF is attached to this listing.
Important Notice: Confirm the complete order code, hardware execution and connected system before replacement. Accessories, cables, calibration data, software and certificates are included only when stated in the written quotation.
Review 129957-085-310-05 by complete length and construction code. Retained facts: Cable Length: 8.5 ft (2.59 m); System Role: Maintains 50 Ω impedance; Capacitance: 98 pF/m (30 pF/ft). Do not change the calibrated total system length when replacing an extension or integral lead.
Match every connector, protector, armor or FluidLoc option and the receiving probe/Proximitor Sensor. Route the cable without sharp bends, crushing, connector side-load or contamination.
Inspect continuity and insulation where applicable, seat the connectors, compare channel bias with the recorded value and confirm stable vibration or position response before release.
