- Product family: 3300 XL 50 mm Proximity Transducer System
- Component: Proximitor Sensor
- Ordering code: 330878-X1-00

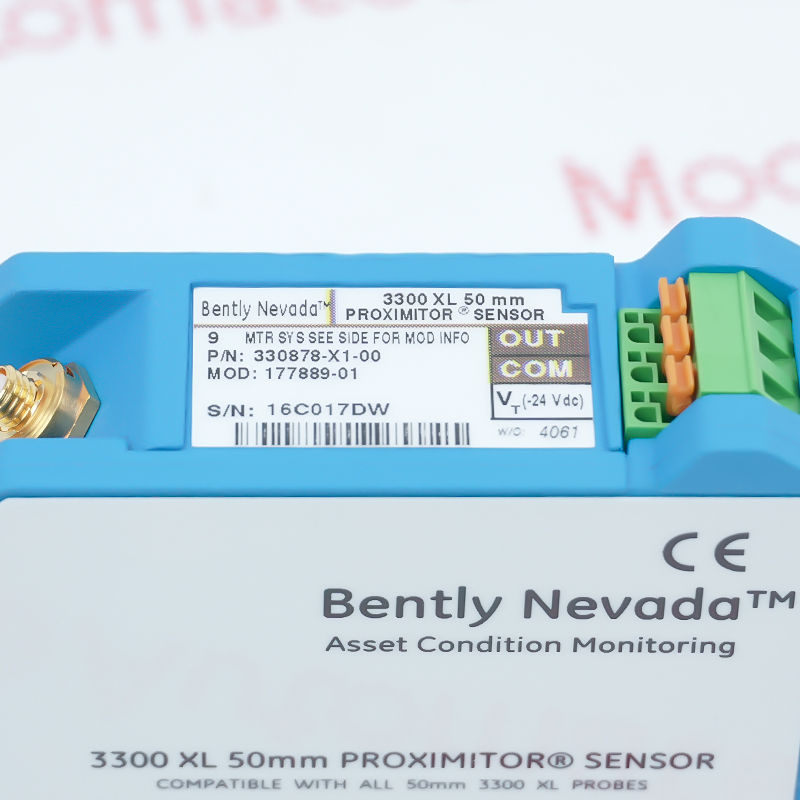

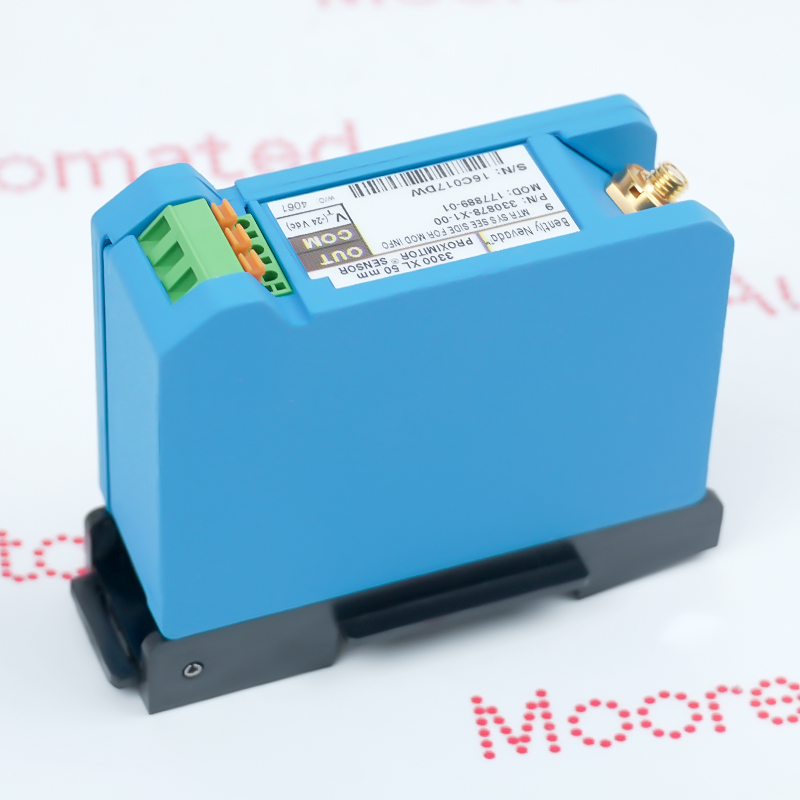

Bently Nevada 330878-X1-00 MOD:177889-01 is a custom 3300 XL 50 mm Proximitor Sensor configuration for large-range non-contact displacement and vibration measurements.
The 50 mm transducer system provides a 27.9 mm linear range and a nominal scale factor of 0.394 V/mm when used as a matched probe, extension cable and Proximitor Sensor system. The sensor operates from a −17.5 to −26 V DC supply and draws no more than 12 mA.
The X1 option and MOD 177889-01 identify a custom configuration; they must not be decoded as a standard AA option. Verify the nameplate, probe, extension-cable electrical length, mounting style and approval requirements before replacement.
The Bently Nevada 330878-X1-00 MOD:177889-01 may be supplied and supported by Moore Automated according to the official product lifecycle: Active/Available from OEM.
Bently Nevada 330878-X1-00 MOD:177889-01 3300 XL 50 mm Proximitor Sensor Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, licenses and related items are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Technical details:
- Product family: 3300 XL 50 mm Proximity Transducer System
- Component: Proximitor Sensor
- Ordering code: 330878-X1-00
- Modification: 177889-01
- Linear range: 27.9 mm
- Nominal scale factor: 0.394 V/mm
330878-X1-00 MOD 177889-01 is part of the matched 3300 XL 50 mm eddy-current system, whose probe, extension cable and Proximitor Sensor jointly determine the 27.9 mm calibrated range and 0.394 V/mm scale factor. Because X1 is a custom option, field replacement must be based on the complete nameplate and modification record rather than a standard option-code assumption.
Compatibility: Use only with the matching 3300 XL 50 mm probe and extension cable configuration specified for the installed system; electrical length and custom MOD details must agree.
Configuration: Verify the negative DC supply, grounding, probe target geometry, mechanical clearances and complete custom modification record before calibration and commissioning.
Application: It conditions large-range eddy-current probe signals for shaft radial position, differential expansion and other long-range displacement measurements.
Lifecycle: The 3300 XL 50 mm system remains supported in current Bently Nevada technical documentation; availability of the X1 custom modification must be confirmed.
330878-X1-00 MOD 177889-01 is part of the matched 3300 XL 50 mm eddy-current system, whose probe, extension cable and Proximitor Sensor jointly determine the 27.9 mm calibrated range and 0.394 V/mm scale factor. Because X1 is a custom option, field replacement must be based on the complete nameplate and modification record rather than a standard option-code assumption.
