Features:
- 3300 XL 8 mm Proximity Probes
- 3300 XL 8 mm Proximity Transducer System

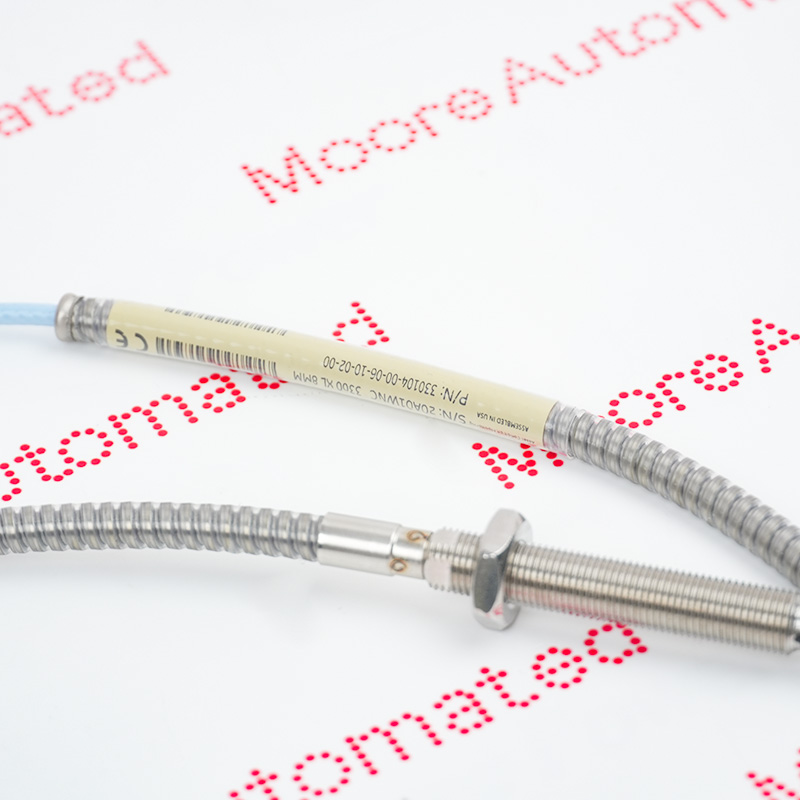

- 330104 3300 XL 8 mm Probe, M10 x 1 thread,with armor
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable4 with other nonXL 3300 series 5 mm and 8 mm transducer system components. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.
The 330104-00-06-10-02-00 Bently Nevada 3300 XL 8 mm Proximity Probes may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
330104-00-06-10-02-00 Bently Nevada 3300 XL Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
Vibration Measurement: Captures dynamic radial vibrations of shafts in hydrodynamic bearing machinery such as pumps, motors, and fans.
Position Measurement: Monitors static axial (thrust) position to detect rotor motion that could lead to machine failure.
Keyphasor and Speed Reference: Provides timing signals for phase measurement and speed monitoring.
Bearing Clearance Monitoring: Integrated into turbine and compressor control panels for monitoring critical bearing clearances.
Checks before installation:
- M10×1 mounting thread
- Connector clearance and cable routing
- Initial gap-voltage setting
The checks above are specific to the Bently Nevada 330104-00-06-10-02-00 and should be completed before installation.
