Features:
- 3300 XL extension cable
- Standard extension cable
- 040 — 4.0 m

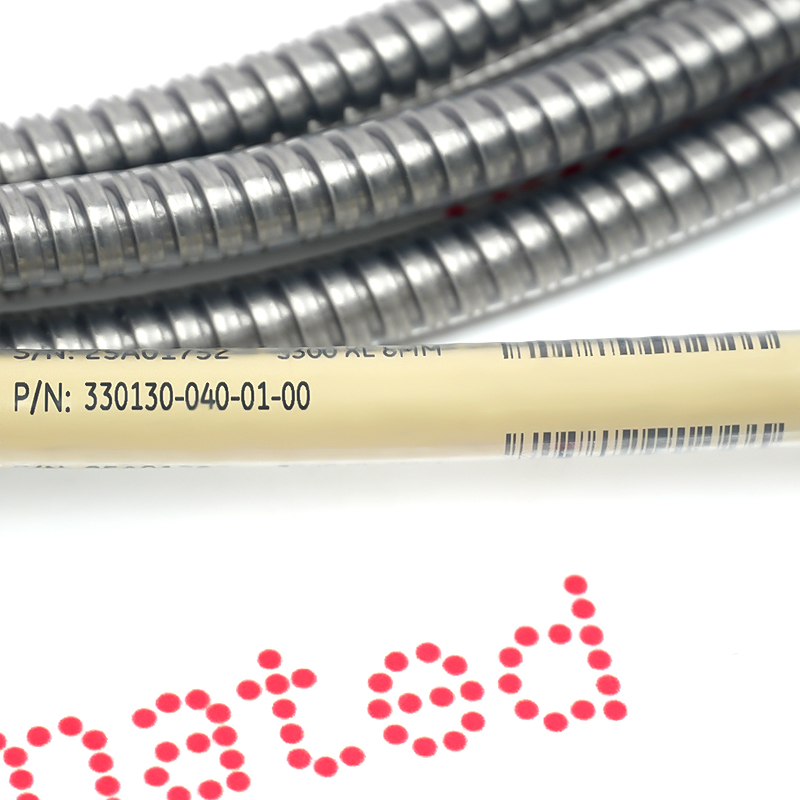

330130-040-01-00 is the documented Bently Nevada ordering code for a 3300 XL extension cable. The full cable length and connector suffixes must be confirmed together with the matched probe and Proximitor sensor before replacement.
The cable forms part of a calibrated transducer chain and should not be substituted solely by physical appearance. Routing, connector condition and total electrical length must follow the applicable Bently Nevada system documentation.
The 330130-040-01-00 Bently Nevada extension cable may be available from Moore Automated according to confirmed stock and configuration.
330130-040-01-00 Bently Nevada 3300 XL Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Ordering details:
- 040: 4.0 m length
- 01: connector protector
- 00: no approval option
The information above is specific to the Bently Nevada 330130-040-01-00 and should be checked against the matched probe, sensor and routing requirements before replacement.
Confirm before ordering:
- Probe product family
- Proximitor Sensor catalog number
- Required total electrical length
The information above is specific to the Bently Nevada 330130-040-01-00 and should be checked against the matched probe, sensor and routing requirements before replacement.
Installation safeguards:
- Protect coaxial connectors
- Separate from high-power wiring
- Avoid tight bends and crushing
The information above is specific to the Bently Nevada 330130-040-01-00 and should be checked against the matched probe, sensor and routing requirements before replacement.
