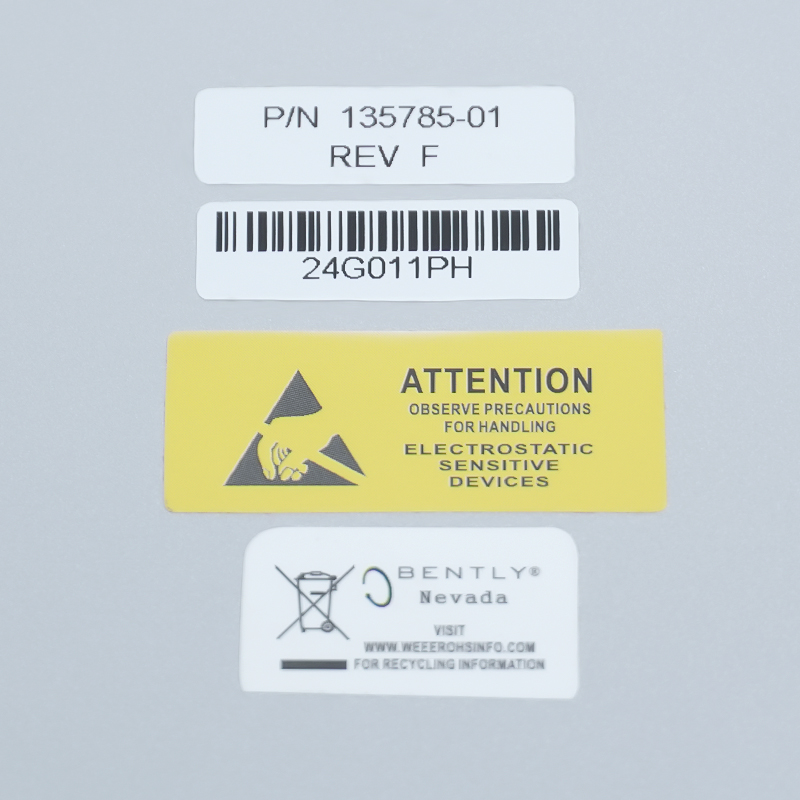

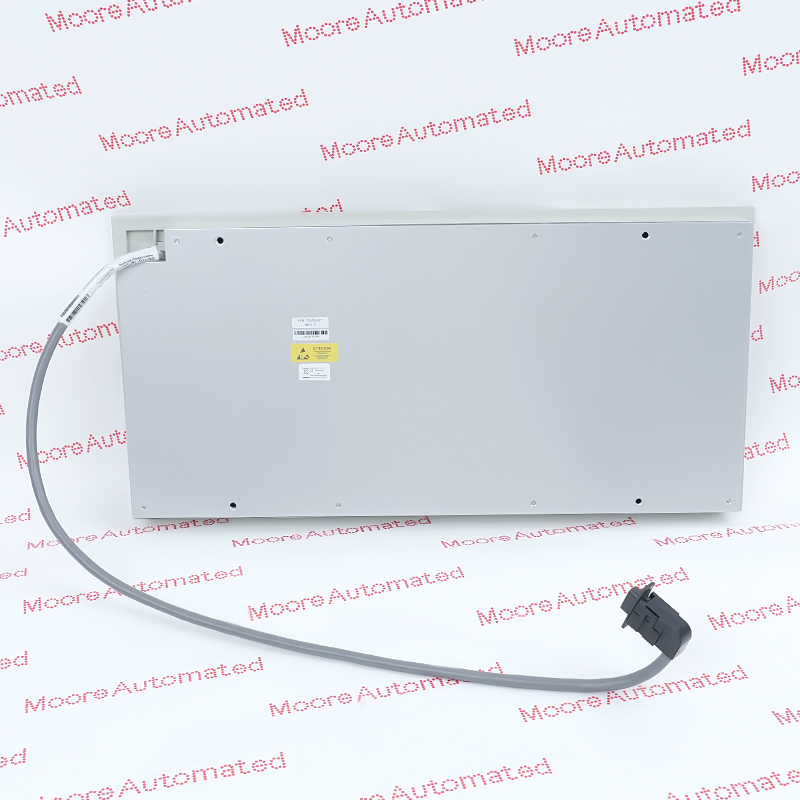

      Bently Nevada 3500/93 135785-01
      Bently Nevada 3500/93 135785-01
      · Product image is representative; revision or series may vary. Contact us to request a specific version.
      Get a Quote

      3500/93 135785-01

      3500/93 Display Unit, non backlighted
      In Stock
      Ships by Monday, August 10
      Fast Shipping Available

      Product Information:

      The 3500/93 135785-01 is an LCD module manufactured by Bently Nevada, specifically designed for its 3500 series machinery protection systems. As a key visualization window for the system, it provides operators with real-time, intuitive information, including operating data from all monitors, relays, and keypad modules, system health status, and alarm status. This module conforms to API 670 (American Petroleum Institute) standards and is commonly used for monitoring critical rotating machinery in heavy industries such as petroleum, chemical, and power generation.

      The 3500/93 135785-01 features a unique hardware configuration: a 640 x 200 dot-matrix FSTN non-backlit reflective LCD display, making it particularly suitable for well-lit industrial environments. Its maximum power consumption is only 5.6 watts, ensuring excellent cost-effectiveness and stable operation. The display panel integrates multiple clear LED status indicators (such as OK, Alert, Danger, etc.), allowing engineers to quickly determine whether equipment has malfunctioned or exceeded safety thresholds during data refresh (typically less than one second).

      In terms of installation and system architecture, the 3500/93 135785-01 offers exceptional flexibility, supporting multiple deployment methods, including panel mounting, 19-inch standard rack mounting, and freestanding wall mounting. In practical applications, it must be used in conjunction with a Display Interface Module (DIM, such as the 135799-01), which is inserted into slot 15 of the 3500 rack via a connecting cable. It acquires backplane data via an internal high-speed network with a standard transmission distance of up to 100 feet, significantly simplifying mechanical fault diagnosis and routine inspections in industrial environments.

      Warranty Policy
      We provide 1-year warranty for all remaining parts.
      The warranty period is 1-year warranty from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
      Return Notice
      The warranty period is 1-year warranty from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
      In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
      Shipping Methods
      Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
      Parts Availability
      Moore Automated offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
      Expand All
      Collapse all

      Technical specifications for 3500/93 135785-01

      • Manufacturer:
        Bently Nevada
      • Product Category:
        TSI System
      • Estimated shipping dimensions:
        15.2 x 20 x 28 cm
      • Weight:
        2.56 kg
      • Tariff Code:
        8537101190
      • Country of origin:
        USA
      • Place of shipment:
        Xiamen, Fujian, China
      • Product Type:
        Display Unit
      • Category Series:
        3500 Machinery Protection Systems
      • Power Consumption:
        15.5 watt maximum
      • Communication:
        RS422 Interface
      • Channel update rate:
        1 second, typical
      • Operating temperature:
        -20°C to +65°C (-4°F to +149°F)
      • Storage Temperature:
        -30°C to +80°C (-22°F to +176°F)
      • Humidity:
        95%, noncondensing
      • Hazardous Area Approvals:
        CSA/NRTL/C: Class I, Division 2, Groups A through D
      • Stock:
        1
      Ask for Quote

      Alternative Names

      3500/93 135785-01 3500 93 135785-01 3500 93 135785 01 3500-93 135785-01 3500-93 135785 01 350093 13578501 3500/93 135785-02 135785-02 3500/93 135799-01 135799-01 35OO/93 135785-O1 3500/93 I35785-0I 3500/93 1357B5-01

      Information

      Overview Manuals General Info Accessories and Spares Architecture and Installation

      Features:

      • 3500/93 Display Unit, non backlighted
      • 3500/93 System Display
      • Ideal for well-lit central control rooms or standard industrial environments
      The 3500/93 System Display is designed to meet the requirements of American Petroleum Institute Standard 670 and provide local or remote visual indication of all 3500 Machinery Protection System information residing in the rack. Up to two displays can be connected to each 3500 rack and each display requires one empty 3500 rack slot for insertion of its corresponding DIM. When the display is not face-mounted, the cable connection between the DIM and the Display can be made from the front of the 3500 rack or from the I/O module at the rear of the rack. Applications that require a cable longer than 100 feet must use the External Power Supply and Cable Adapter.

      Applications that use the back lighted Display Unit must use the External Power Supply. There are two External Power Supplies: one for connection to 115 Vac and the other for connection to 230 Vac. The External Power/Terminal Strip Mounting Kit eases installation of External Power Supplies. The External Power/Terminal Strip Mounting Kit is designed to fit in the Independent Mount Housing. The Kit streamlines installation of an External Power Supply in both the Independent Mount Housing or a user supplied housing.

      The 3500/93 135785-01 Bently Nevada 3500/93 Display Unit, non backlighted may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
      Bently Nevada 3500/93 135785-01 3500/93 Display Unit, non backlighted Manuals(Datasheets), Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
      • Model: 3500/93 135785-01
      • Warranty: One-year warranty
      • Condition: Brand new, original, in stock
      • Product Family: 3500/93 System Display
      135785-01: 3500/93 Display Unit, non backlighted
      135785-02: 3500/93 Display Unit, back-lighted
      137412-01: 3500/93 Manual
      135799-01: 3500/93 Display Interface Module
      135799-02: 3500/93 Display Interface Module (use with A05 option only)
      135813-01: 3500/93 Display Interface I/O Module
      136634-0010-01: 10 Foot (3 metres) Cable (PVC)
      136634-0050-01: 50 Foot (15 metres) Cable (PVC)
      136634-0050-02: 50 Foot (15 metres) Cable (Teflon? )
      136634-0100-01: 100 Foot (30 metres) Cable (PVC)
      136634-0100-02: 100 Foot (30 metres) Cable (Teflon? )
      130121-02-01: 500 Foot (152 metres) Extension Cable (PVC)
      130121-02-02: 500 Foot (152 metres) Extension Cable (Teflon? )
      02200271: External Power Supply for 115 Vac
      02200272: External Power Supply for 230 Vac
      138227-01: Cable Adapter
      146085-01: Power Cable
      137224-01: System Mounting Assembly (sheet metal for A01 & A05 options)
      04309007: 4-40 X 0.63 Phillips head screw for System Mounting Assembly, 4 are required
      04344178: 10-32 x 0.37 Phillips head screw for System Mounting Assembly, 4 are required
      136978-01: 19” EIA Rack Mounting Adaptor
      136977-01: Panel Mounting Clamp
      136976-01: NEMA Gasket
      04300148: 10-32 x 1.25 Phillips head screw for Panel Mounting Adaptor, 4 are required
      137835-01: Independent Mounting Housing
      138228-01: External Power/Terminal Strip Mounting Kit includes:
      138227-01: Cable Adapter
      137833-01: Mounting Plate
      01660111: Terminal Strip
      04310447: 6-32 x 0.37 Phillips head screw for Terminal Strip, 2 are required.
      04330900: 4-40 x 0.18 Phillips pan head screw for Power Supply, 4 are required.
      04344178: 10-32 x 0.37 Phillips pan head screw for Mounting Plate, 4 are required.
      This monitor cannot operate independently and must be used in conjunction with the frame and dedicated interfaces to form a complete hardware system. DIM Module Pairing: It must connect via a dedicated cable to the **Display Interface Module (DIM, e.g., 135799-01)** located in slot 15 (far right) of the 3500 frame to acquire dynamic data from all monitoring modules via the internal high-speed network.

      Flexible Multi-Scenario Deployment: The device supports four standard physical installation methods, including panel mounting, 19-inch standard EIA rack mounting, independent wall mounting, and face mounting (directly covering the front of the 3500 frame).

      Transmission and Configuration: Interface and parameter definitions are performed using the standard 3500 frame configuration software; the included standard cable supports a maximum transmission distance of 100 feet (for further extension, an external independent power supply can be used).

      Manuals

      Technical notes

      The Bently Nevada 3500/93 135785-01 is a non-backlit industrial-grade LCD display unit designed specifically for the 3500 Series machine protection system. Its technical specifications are summarized below: This display unit conforms to the API 670 standard and connects to a high-speed intranet via the Display Interface Module (DIM) in rack slot 15. It enables real-time local or remote display of rack status, amplitude, system and alarm event lists, and channel data, with a refresh rate of less than 1 second. The module has a maximum power consumption of 15.5W, supports multiple installation methods including panel mounting, frame mounting, or standalone external mounting, has a standard transmission distance of 100 feet (expandable to 4000 feet with an external power supply), and an IP65 protection rating, ensuring stable operation in harsh industrial environments ranging from -20°C to +65°C.

      • Product Lifecycle Stage

        Active/Available from OEM

        Moore Automated provides high-quality, reliable Bently Nevada replacement modules and spare parts, offering fast global shipping. Our cost-effective solutions help minimize unplanned downtime, extend the life of critical monitoring systems, and ensure continuity of industrial operations.

      Ask our team:

      Related Products

      Browsing history

      FAQ

      View All Faqs
      • How does the 3500/93 135785-01 optimize deterministic communication between the 3500 monitoring rack and the operator workstation?
        The 3500/93 135785-01 employs a high-performance communication architecture, enabling continuous exchange of rack status, channel data, event logs, alarm status, and system diagnostic information with the operator display. This deterministic communication capability enables the 3500/93 135785-01 to provide precise and low-latency monitoring of critical rotating machinery.
      • Which communication interfaces does the 3500/93 135785-01 support for industrial monitoring applications?
        The 3500/93 135785-01 supports Ethernet communication, allowing integration with the Bently Nevada 3500 display system while maintaining compatibility with standard industrial network infrastructure. The 3500/93 135785-01 can efficiently transmit machine status monitoring data throughout the control network.
      • How do the rack compatibility specifications of the 3500/93 135785-01 differ within the Bently Nevada 3500 series platform?
        The 3500/93 135785-01 is fully compatible with the Bently Nevada 3500 machine protection system and integrates seamlessly with vibration monitors, position monitors, temperature monitors, relay modules, communication gateways, and rack interface modules installed within the same 3500 rack.
      • How does the 3500/93 135785-01 enhance the operator's visualization experience of machine condition monitoring parameters?
        The 3500/93 135785-01 continuously transmits real-time process values, machine protection status, alarm conditions, sensor diagnostic information, event history, and configuration information to the operator interface. This enables the 3500/93 135785-01 to provide comprehensive visualization of equipment health and operational integrity.
      • Which key industrial applications typically use the 3500/93 135785-01 for mechanical protection visualization?
        3500/93 135785-01 is widely used in steam turbines, gas turbines, centrifugal compressors, generators, pumps, petrochemical facilities, power plants, offshore platforms, oil refineries, and large industrial rotating equipment that requires centralized mechanical protection and display functions.
