Features:

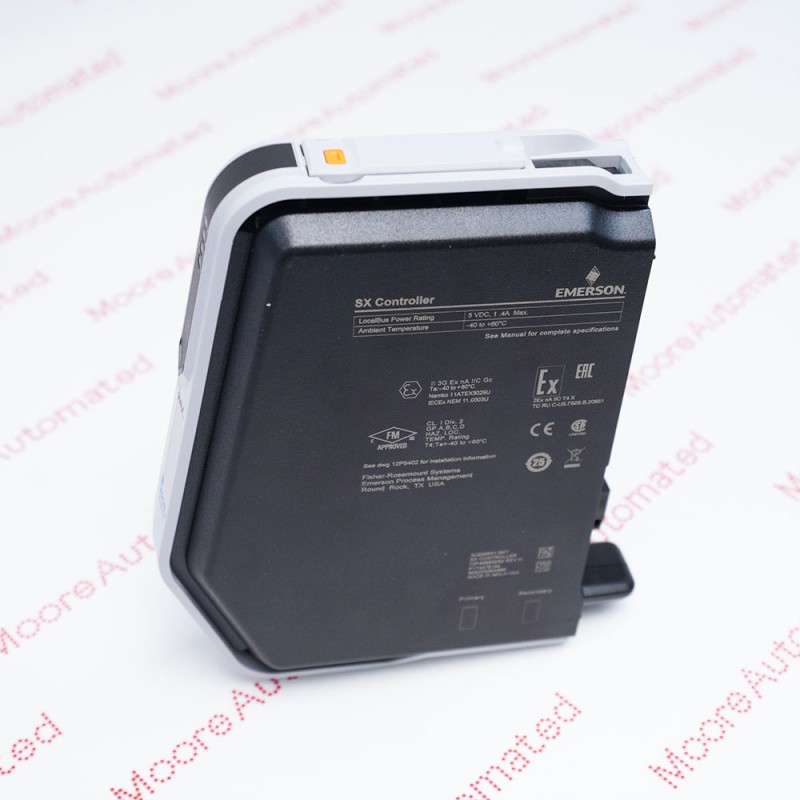

- SE3007 DeltaV SX Controller Module
- Supports stable communication and efficient data exchange between field devices and the control network
- A highly reliable fieldbus interface module designed specifically for distributed control system (DCS) architectures
The main function of this module is to realize structured data transmission and integrate various field devices such as sensors, transmitters, and actuators into the automation network. This module provides a reliable communication bridge, ensuring accurate acquisition and transmission of process data for monitoring.
It is widely used in industries such as oil and gas, chemical, power generation, and manufacturing automation. This module is meticulously designed to maintain signal integrity and communication stability even in high-noise industrial environments.
The KJ2005X1-BK1 12P4688X052 SE3007 Emerson DeltaV SX Controller Module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Emerson KJ2005X1-BK1 12P4688X052 SE3007 SX Controller Module datasheet(manual), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The module receives data signals from connected field devices and processes them through its internal communication circuitry. The processed signals are formatted according to the system communication protocol and sent to the main controller or control network. Simultaneously, control commands issued by the system are also routed to the corresponding field devices through this module. Through continuous bidirectional data exchange and protocol processing, this module ensures the accuracy and reliability of communication within the automation system.
1. Plug and Play: The DeltaV controller features automatic addressing and positioning, automatically recognizing itself and all I/O interface channels upon power-up without manual DIP switch configuration.
2. Data Protection: All online changes to control parameters are automatically stored and uploaded to the engineering database to ensure record consistency.
3. Redundancy: Supports online backup; in the event of a main controller failure, a redundant controller automatically comes online, ensuring uninterrupted system operation.
4. Scalability: The system initially supports 50 Device Signal Tags (DSTs), expandable to a maximum of 750 DSTs via software licensing.
1. Process Industries: Widely used in industries such as oil and gas, chemicals, pharmaceuticals, and power generation for continuous and intermittent process control.
2. Large Equipment: Ideal for large industrial equipment requiring a higher number of I/Os, supporting up to 1500 independent I/O signals.

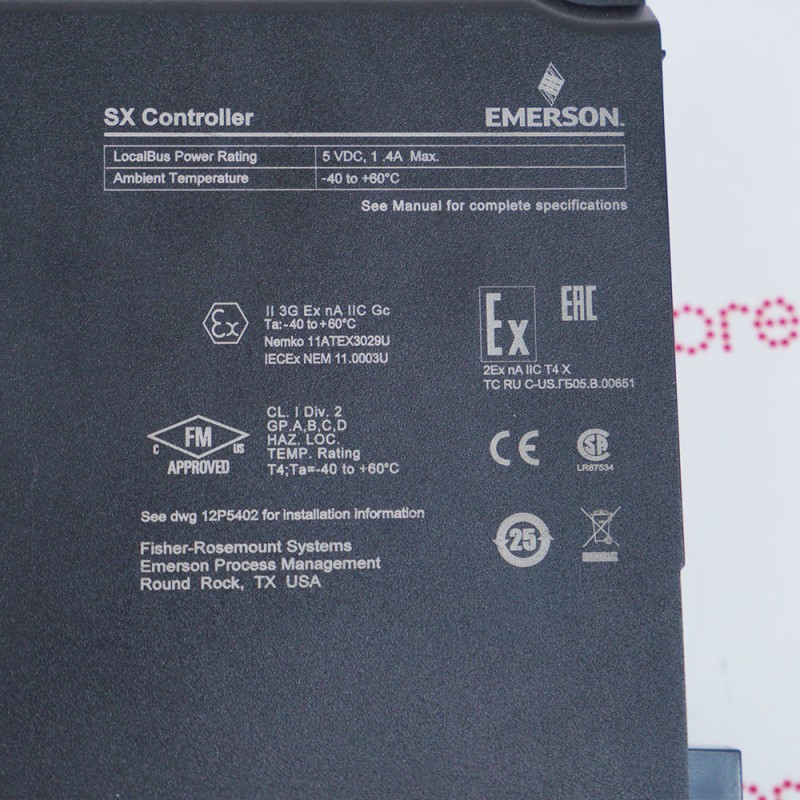

3. Harsh Environments: Rated for G3 corrosive environments and extreme temperatures (-40°C to 60°C), allowing for field installation close to process equipment, rather than being confined to temperature-controlled rooms.
