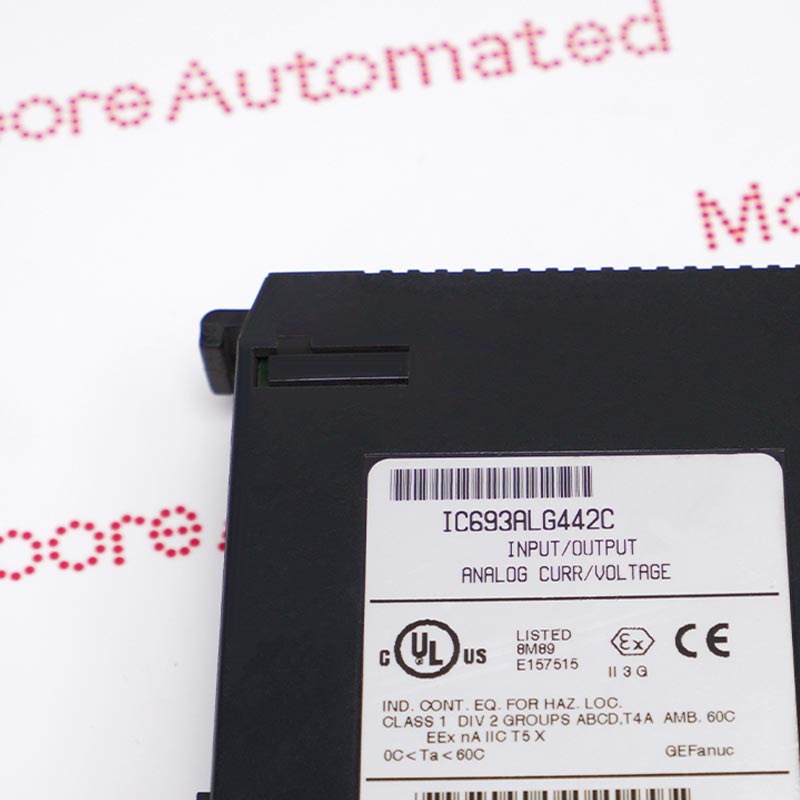

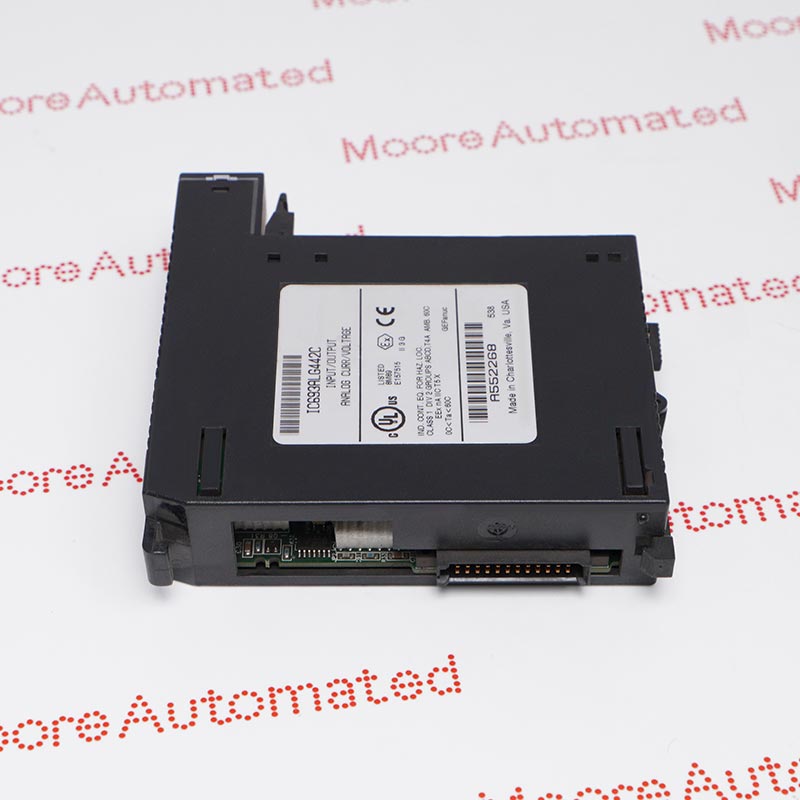

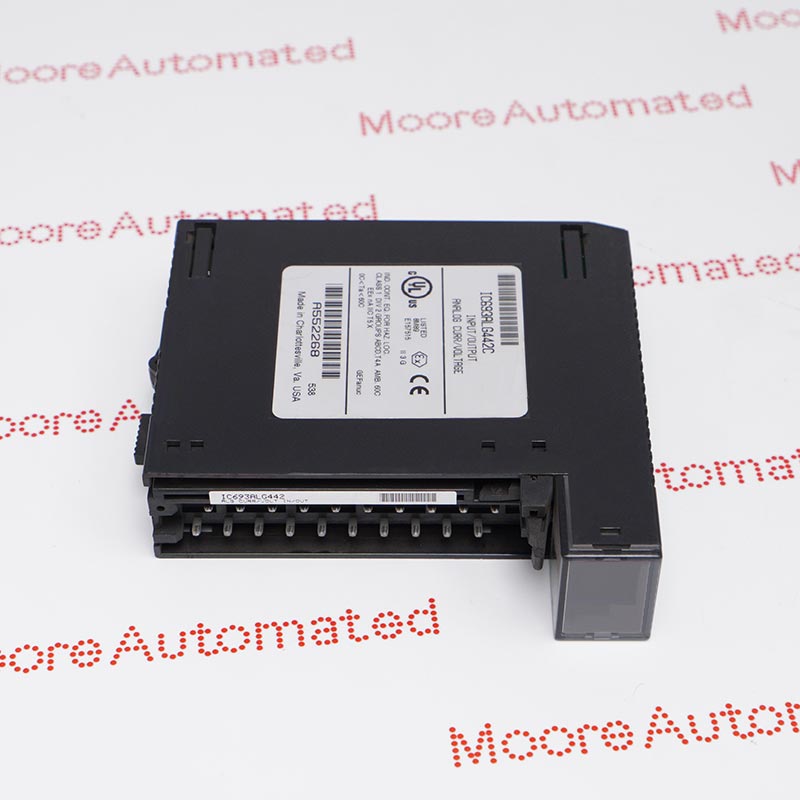

      IC693ALG442

      Analog I/O Module
      In Stock

      Product Information:

      Series 90-30 module

      This module is an analog voltage / current

      combination module. It features Four (4)

      input channels compatible with 0 to +10

      volts (unipolar)


      Warranty Policy
      We provide 1 year warranty for all remaining parts.
      The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
      Return Notice
      The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
      In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
      Shiping Mode
      Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
      Parts Availability
      Moore automated offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
      Expand All
      Collapse all

      Technical specifications for IC693ALG442

      • Manufacturer:
        General Electric
      • Product Category:
        PLC System
      • Estimated shipping dimensions:
        3.6x13x13.5cm
      • Weight:
        0.38 kg
      • Tariff Code:
        8537101190
      • Country of origin:
        USA
      • Place of shipment:
        Xiamen, Fujian, China
      • Product Line:
        Series 90-30
      • Accuracy:
        0.25% at 25 degree Celsius
      • No of Output Channels:
        2, single-ended
      • Update Rate:
        8 milliseconds
      • Output Current Range:
        0-20 mA, 4-20 mA
      • Resolution at 4-20 mA:
        0.5 microamps
      • External Supply Voltage Range:
        20 to 30 VDC (24 VDC typically)
      • Stock:
        30
      Ask for Quote

      Revisions

      Revision Part #

      Also known as

      IC693ALG442A
      IC693ALG442-A, Series A, Rev A
      Get Parts Quote
      IC693ALG442B
      IC693ALG442-B, Series B, Rev B
      Get Parts Quote
      IC693ALG442C
      IC693ALG442-C, Series C, Rev C
      Get Parts Quote
      IC693ALG442DA
      IC693ALG442-DA, Series DA, Rev DA
      Get Parts Quote
      IC693ALG442DC
      IC693ALG442-DC, Series DC, Rev DC
      Get Parts Quote

      Information

      Overview Manuals Principle Functionality

      Features:

      • Module of GE Fanuc series 90-30 PLC systems
      • Series 90-30 Analog I/O Module
      • This module is an analog voltage / current combination module
      This module is an analog voltage/current combination module. It requires an external power supply of 20 to 30 VDC (nominal 24 VDC) with a permissible voltage ripple of 10%. With internal +5V power, the module consumes 95 mA; with external power, the module consumes 129 mA.

      The IC693ALG442 analog current/voltage combination module offers two current ranges: 4 to 20 mA or 0 to 20 mA. It provides open-loop fault detection in current mode. Unipolar mode allows users to adjust data and is the default mode for this module. It also sends status information and updates to the PLC, such as module performance data, overload/open-circuit detection, alarm status updates, and user-provided system power status updates.

      The IC693ALG442 GENERAL ELECTRIC Analog I/O Module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
      GENERAL ELECTRIC IC693ALG442 Analog I/O Module datasheet(manual), Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
      With internal +5V power, the IC693ALG442 combination module consumes 95 mA; with external user power, the module consumes 129 mA. The 20-pin connector on the front of the module facilitates field wiring. If the received value is out of range, the module will convert it to the nearest valid value and send it to the ADC. By default, both outputs are set to standard operating mode.
      1. Software Configuration: Except for the hardware jumpers required for current input mode, all channel settings (range, scaling) are controlled via software (Logicmaster or Proficy).
      2. Ramp Mode: The output can be configured to ramp between values, adjusting every millisecond.
      3. Diagnostics: Provides status information to the CPU, including module health status, open-circuit or overload detection in output mode, and input alarm limits.
      4. Fault Detection: Monitors for wiring problems in current-mode output and reports them as open-loop faults.
