Features:
- Expansion Backplane Cable its length is 1 meter
- The bus expansion cable can be used as a Y-adapter
- For baseboard expansion ports, CPUs, and remote racks

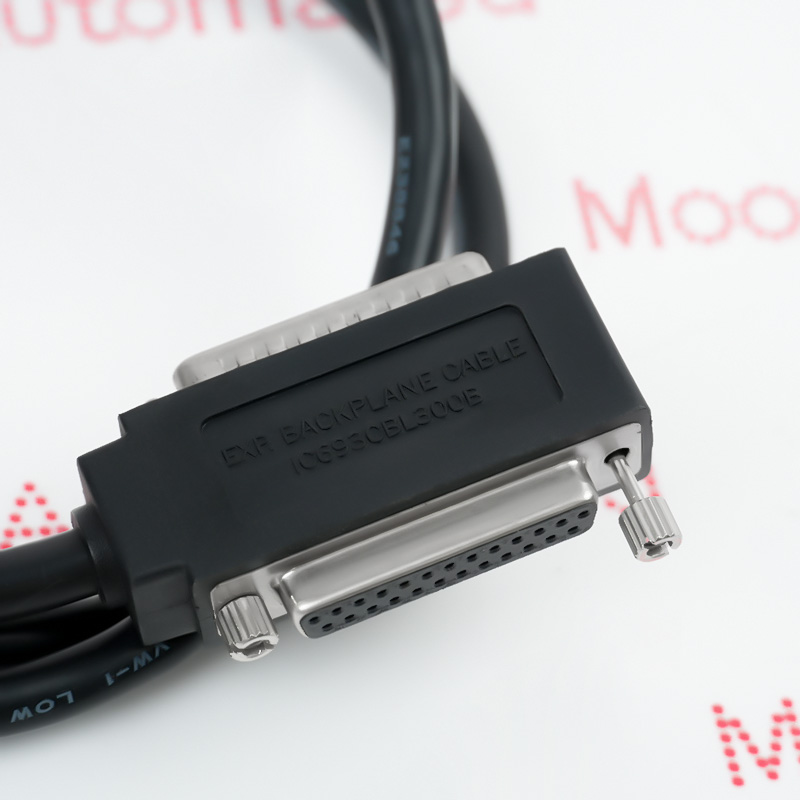

The IC693CBL300 cable is a bus extension cable designed and manufactured by GE Fanuc Automation for use with 90-30 series high-density I/O modules. This cable has all the specifications required to connect modules to a variety of devices, ensuring connection stability during operation.
When multiple racks are present, this cable can be daisy-chained. This is because the GE Fanuc Automation cable features a dual connector at one end. One end of the cable inserts into a backplane connector, while the other end provides a receptacle for connecting the next cable. This cable is designed to facilitate users in building their own application solutions.
The IC693CBL300 General Electric Expansion Backplane Cable may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
General Electric IC693CBL300 Expansion Backplane Cable datasheet(manual), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The GE Fanuc Automation IC693CBL300 bus extension cable can also be used as a Y-adapter between custom cables and remote racks. This cable has a 25-pin D-type male connector at one end and a dual 25-pin D-type connector at the other end that supports daisy-chaining. This end includes one male connector and one female connector. Before using the daisy-chain cable, the module requires a 1-meter pre-wired cable to simplify the custom cable assembly associated with this chain connection. The GE Fanuc Automation IC693CBL300 bus extension cable connects backplane expansion ports, CPUs, and remote racks. Its manufacturing process is designed to ensure proper signal transmission by minimizing interference throughout the system. This shielded cable can be used to construct complete cabling and wiring circuit systems.
Revision Part #
Also known as
IC693CBL300A
IC693CBL300-A, Series A, Rev A
IC693CBL300B
IC693CBL300-B, Series B, Rev B
