Features:
- Six 4-to-20 mA analog circuits: 4 inputs and 2 outputs
- No user calibration required for operation

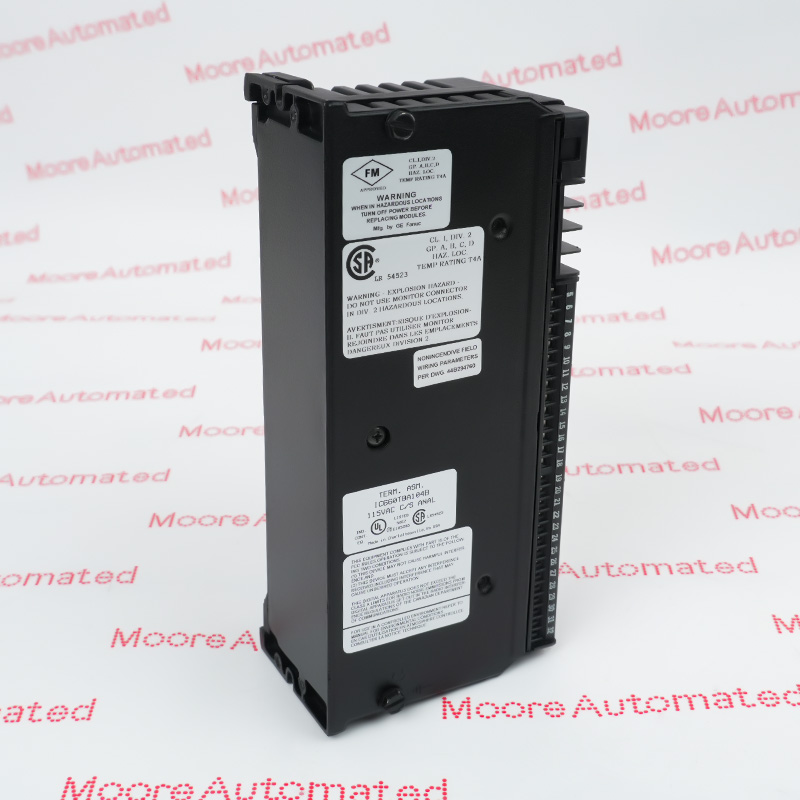

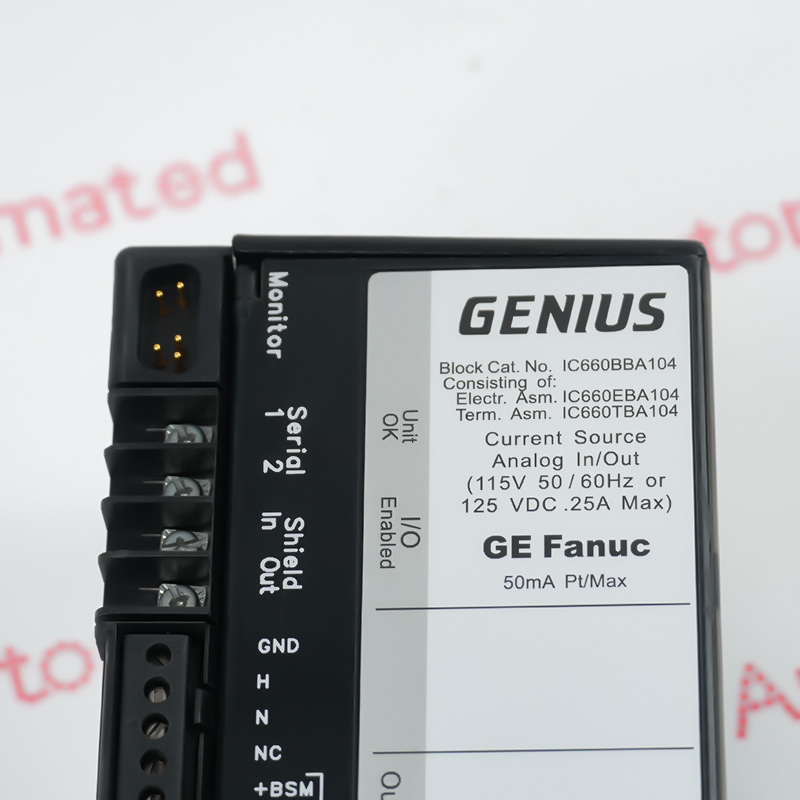

- Genius Analog I/O Block, Current-source, 4 Inputs/ 2 Outputs, 115 VAC/ 125 VDC Powered
A Current Source Analog I/O block has four 4 to 20mA current inputs. Each input provides a 24 volt current loop power supply and is isolated from all other circuits within the block. The two output channels provide power and control of two 4-to-20mA current loops.
The output channels and BSM circuitry are electrically common, but isolated from the inputs.All circuits on the block support independent selection of linear scaling values. These values can be used to convert the internal values into engineering units suitable for the application.
The IC660BBA104 General Electric Current-source Analog I/O Block may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
General Electric IC660BBA104 Current-source Analog I/O Block datasheet(manual), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Block diagnostics include:
- input low and high alarm detection
- overrange and underrange detection for inputs and outputs
- input open wire detection
- output feedback error detection
- internal fault reporting
A dedicated digital output is provided to drive a Bus Switching Module (version IC66*BSM021 only).
- Process Control: Ideal for monitoring and regulating flow, pressure, and temperature levels during manufacturing processes through analog feedback.
- Industrial Automation: Seamlessly integrates with GE Fanuc Genius I/O systems, providing isolated signal processing for PLC networks.
- Energy and Building Management: Used in large facilities to acquire data from electricity meters and environmental monitoring sensors.
- Harsh Environments: 1500V isolation voltage between channels and a rugged design make it suitable for industrial environments with high electrical noise or demanding requirements.
