Features:
- Supports up to 64 modules with up to 2048 I/O points
- Can be either auto-configured or configured from a programmer using configuration software
- Battery backup for program, data, and time of day clock

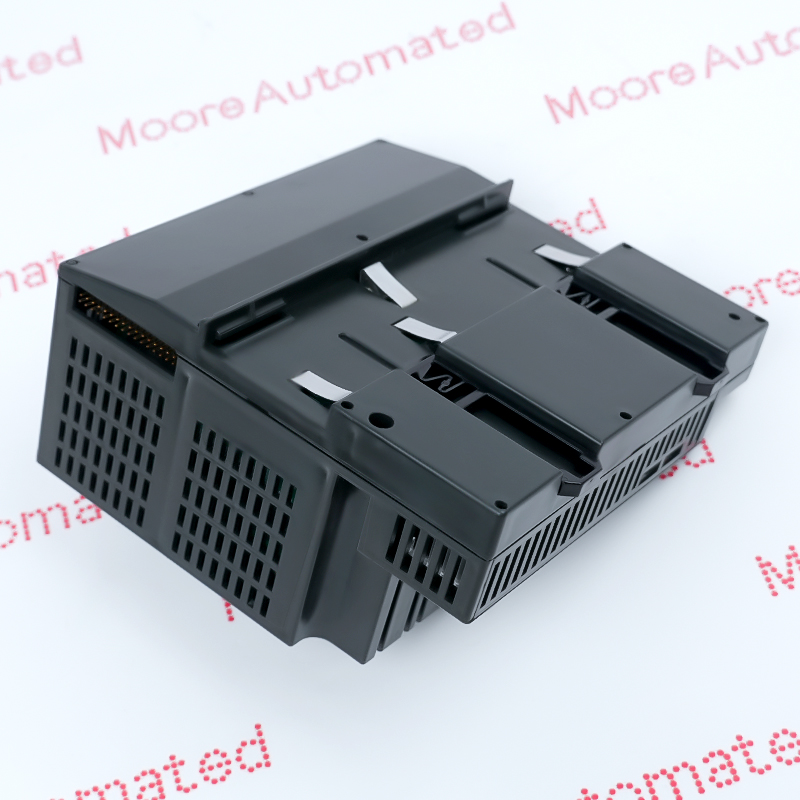

IC200CPUE05 shares the basic features of the other VersaMax* PLC CPUs. It provides powerful PLC functionality in a small, versatile system. CPUE05 can serve as the system controller for up to 64 modules with up to 2048 I/O points. Two serial ports provide RS-232 and RS-485 interfaces for serial communications. CPUE05 also provides a built-in Ethernet Interface.
The RS-232 serial port can be configured for Local Station manager operation to provide access to diagnostic information about the Ethernet interface. CPUE05 has 128KB of configurable memory. In addition, CPUE05 is compatible with the EZ Program Store device, which can be used to write, read, update, and verify programs, configuration, and reference table data without a programmer or programming software.
The IC200CPUE05 General Electric Processor CPU Module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
General Electric IC200CPUE05 Processor CPU Module Datasheet(manual), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
- Revision: IC200CPUE05-JP
- Power Supply: Requires PWRx02
- Firmware Version: 3.10
- Programmer Compatibility: VersaPro software version 2.0 or later and Machine Edition Logic Developer
- Expansion I/O Compatibility:All types of I/O and communications modules can be used in expansion racks. Some analog modules require specific module revisions in expansion racks, as listed below: Module Module Revision: ALG320: B or later ALG321: B or later ALG322: B or later ALG430: C or later ALG431: C or later ALG432: B or later

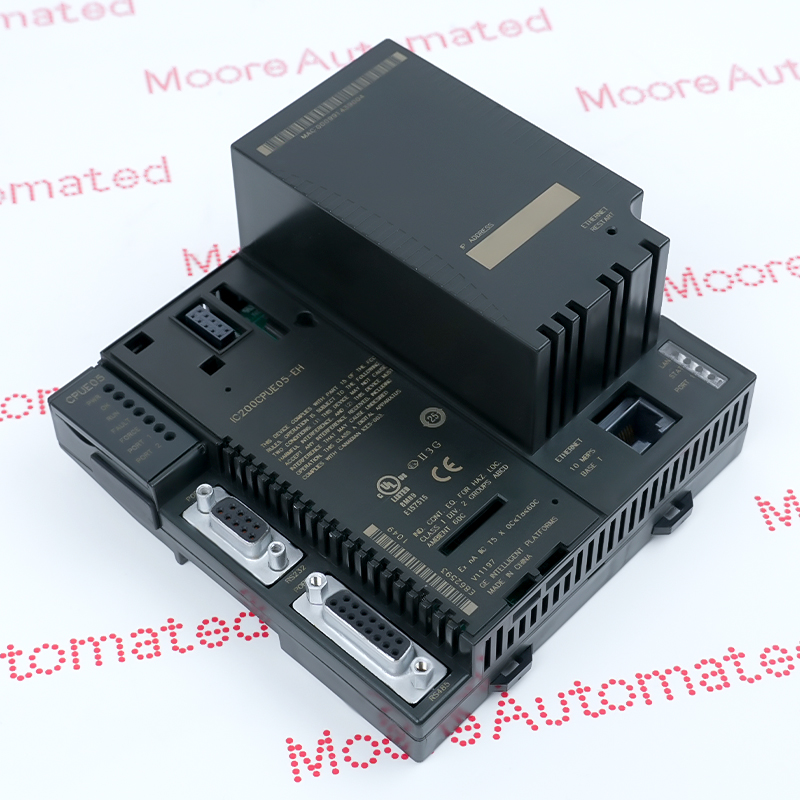

The IC200CPUE05 module panel directly integrates three independent communication links:
1.Ethernet Port: Employs an RJ-45 interface, supporting 10 Mbps Base-T half-duplex or full-duplex transmission rates. It can simultaneously handle up to 8 SRTP server connections and 32 Ethernet Global Data (EGD) exchanges.

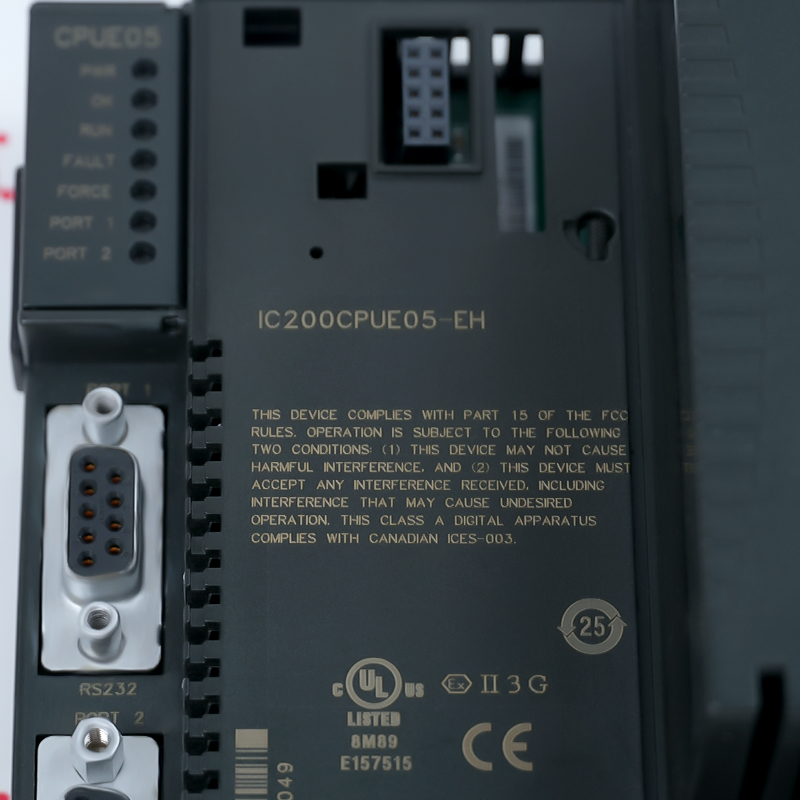

2.Port 1 (RS-232): Equipped with a 9-pin D-sub connector for programming, serial I/O, or as a local station management port for obtaining local Ethernet diagnostic information.
3.Port 2 (RS-485): Equipped with a 15-pin D-sub connector, configured for SNP/RTU slave communication and can provide up to 100 mA of 5V DC power to external adapters.
