Features:
- Power Distribution Board (24Vdc, 2 A, 8 channel)
- Represents the board's 8 discrete distribution channels
- Identifies the primary operation on a 24 VDC bus with dedicated pluggable connection points

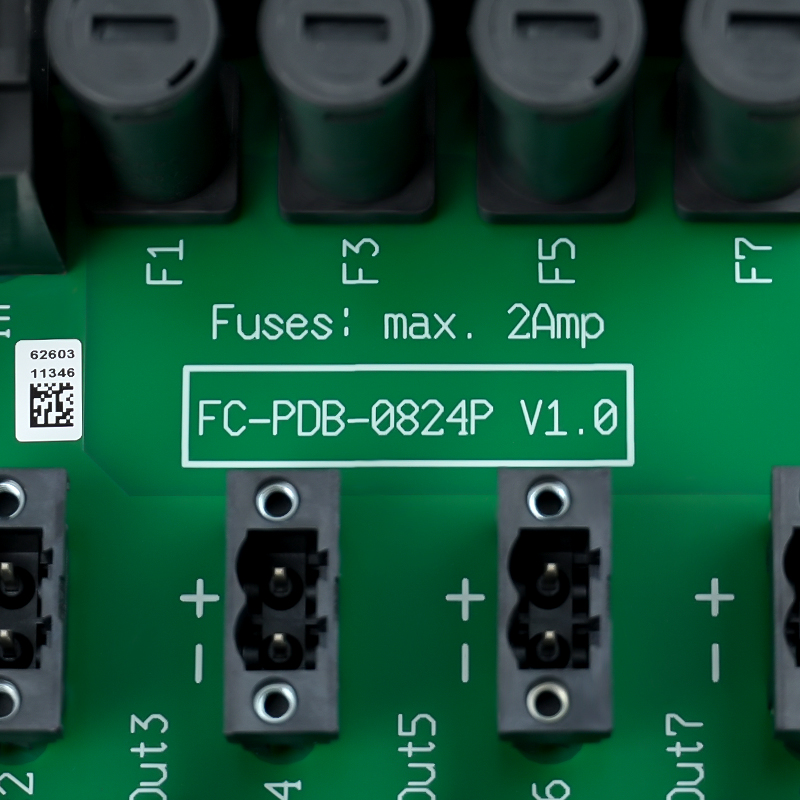

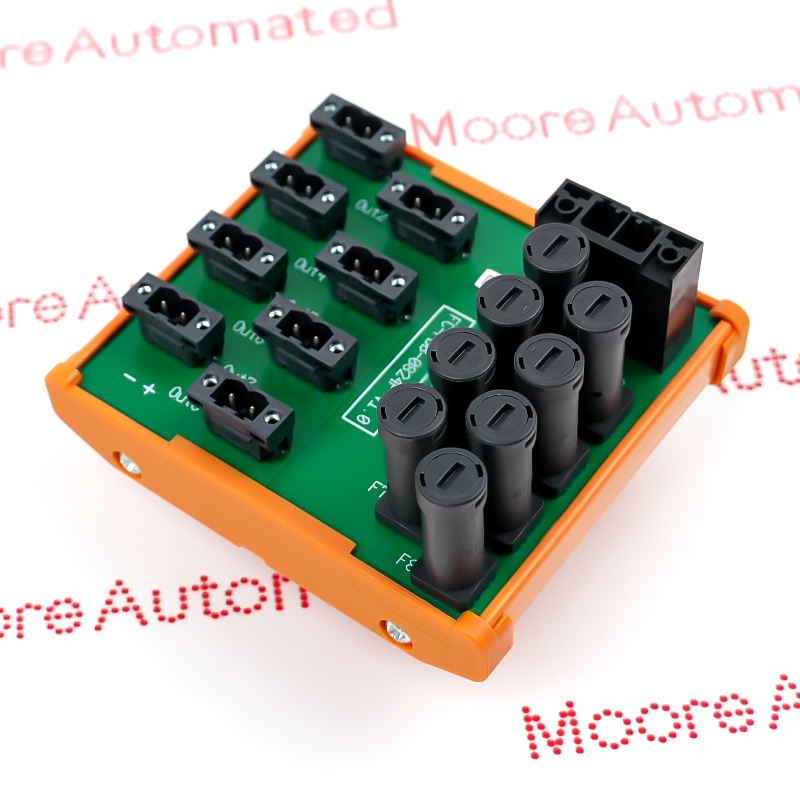

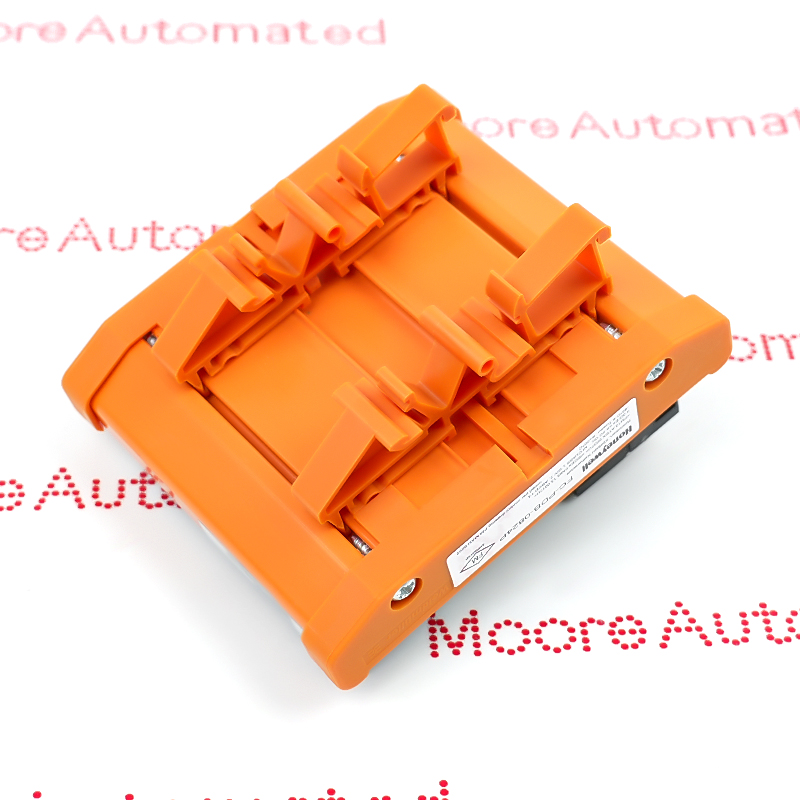

The PDB-0824P power distribution board enables easy distribution of 24Vdc from the main power rail to individual 24Vdc devices inside the cabinet enclosure, such as fan units and FTAs. The PDB-0824P board with one 24Vdc entry connector (In) for connection to the main bus bar and eight (2 A fused) 24Vdc field connectors (Out1 thru Out8) for connection to eight 24Vdc devices.
Each output channel is equipped with an independent 2A slow-blow glass fuse to protect local equipment from short circuits and inrush currents. Dual inputs are supported, ensuring continuous operation of external circuitry even if the upstream power supply is disconnected. High-strength, keyed Weidmüller pluggable modules prevent field wiring errors during hot-swapping or maintenance.
The FC-PDB-0824P Honeywell Power Distribution Board may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell FC-PDB-0824P Power Distribution Board MANUAL(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Power Input: 2-pole keyed Weidmüller connector (BVZ 7.62HP/02F), designed for connection to high-specification power cables or dedicated Honeywell PDC-MB24-x distribution cables.
Power Output (Field Side): 8-pair 2-pole sockets (Weidmüller BLZ 5.08/2F) for independent subload wiring.
1.A 24 V DC power distribution cable can be used to connect the main power bar to In.
When using other connection cables make sure the wire size is adequate and a Weidmuller BVZ 7.62HP/02F SN connector with two keying pins is used to connect to In of the PDB-0824P (see Pin allocation).

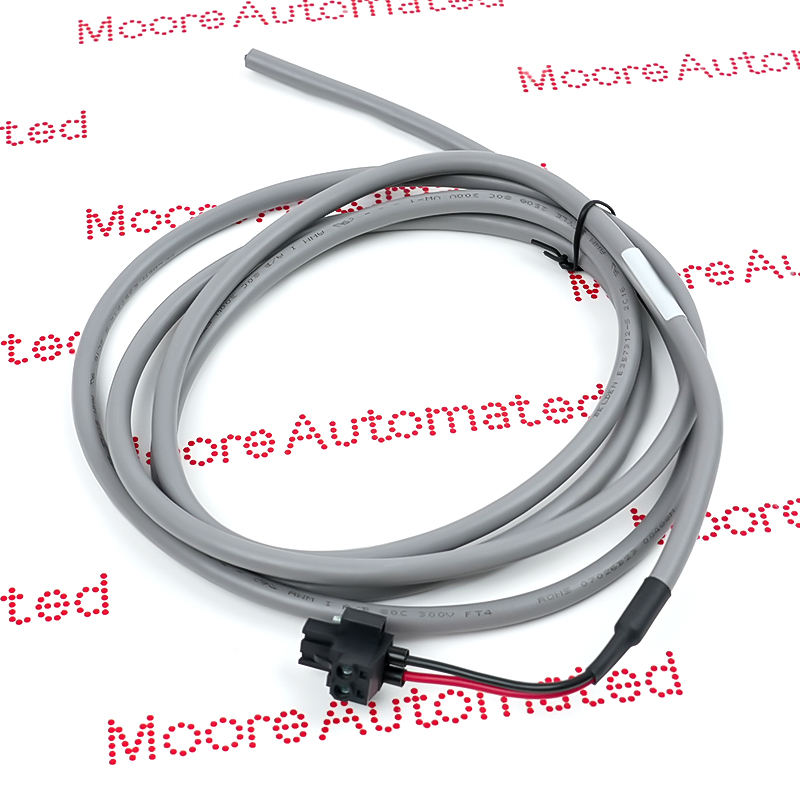

2.24V distribution cables (see PDC-FTA24P) connect the PDB-0824P with up to eight 24Vdc devices.
When using other connection cables make sure the wire size is adequate and a Weidmuller BLZ 5.08/2F SN SW or equivalent connector (e.g. BL 5.08/2 SN OR) is used to connect to one of the
Outx connectors of the PDB-0824P (see Pin allocation).
