Features:
- Universal IO modules

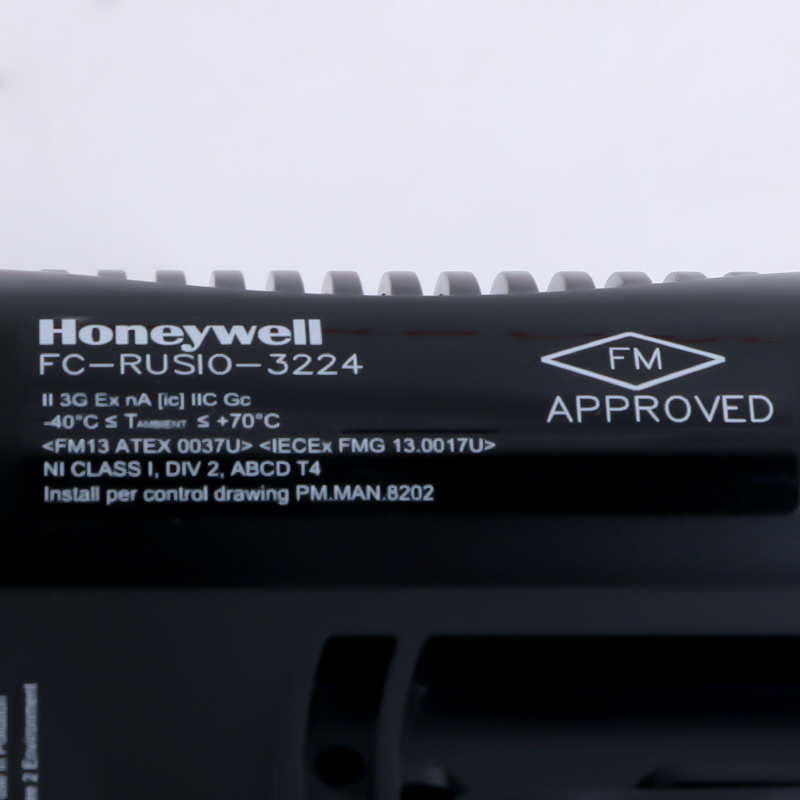

- SM universal IO module, 32 channels, 24 Vdc
- Remote Universal Safe IO device (32 channels, 24 Vdc)

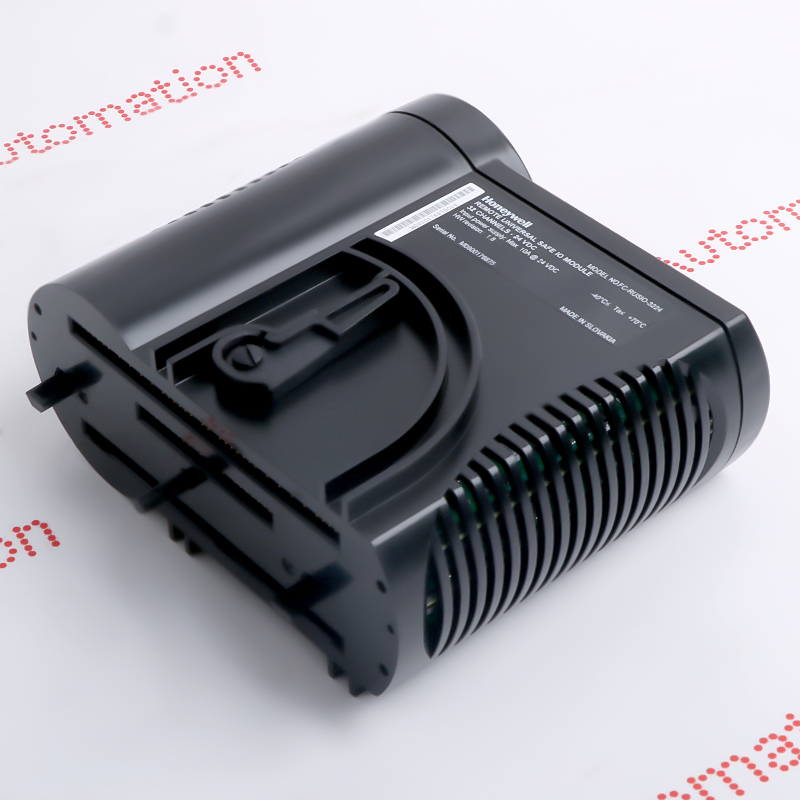

The RUSIO-3224 module has 32 universal safe IO channels with configurable channel function; configuration is done in Safety Builder. The RUSIO-3224 module can be used in applications up to SIL 3, in compliance with IEC 61508/61511.
It requires two RUSIO-3224 modules to achieve a redundant configuration. All channels are powered out of the 24Vdc supply. Each channel can be configured as: Digital input (with or without loop monitoring); Digital output (with loop monitoring); Analog input (0-20mA or 4-20mA active); Analog output (0-20mA or 4-20mA active).
The FC-RUSIO-3224 Honeywell SM Universal I/O Module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell FC-RUSIO-3224 SM Universal I/O Module Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The RUSIO-3224 module supports two (100Mbaud) ethernet links to
communicate with a SM Controller. The RUSIO-3224 module has a housing that is in line with the patented Series C design of Honeywell. It needs to be placed on an IO Termination Assembly (IOTA).
The RUSIO-3224 module functions as a universal IO module within the Safety Manager concept. It executes:
• the input scan of the process variables
• all functional tests of its hardware
• data exchange with its partner module
• data exchange via the SM RIO link with the SM Controller that executes the application logics
• update the outputs and thus the process
