      ICS Triplex T8270
      ICS Triplex T8270
      · Product image is representative; revision or series may vary. Contact us to request a specific version.
      Get a Quote

      T8270

      Fan Module
      In Stock
      Ships by Tuesday, June 9
      Fast Shipping Available

      Product Information:

      Part number T8270 refers to the ICS Triple Reliability 24V DC Fan Assembly. This rack-mount assembly, manufactured by Rockwell Automation, is a high-reliability forced-air cooling system designed for installation in a 2U high chassis slot within a standard Reliable Triple Modular Redundancy (TMR) controller chassis.

      Because safety-critical processors and high-density I/O modules generate significant thermal loads, the T8270 eliminates localized hotspots, protecting adjacent electronic components from temperature-induced failures.

      Warranty Policy
      We provide 1 year warranty for all remaining parts.
      The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
      Return Notice
      The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
      In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
      Shiping Mode
      Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
      Parts Availability
      Moore automated offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
      Expand All
      Collapse all

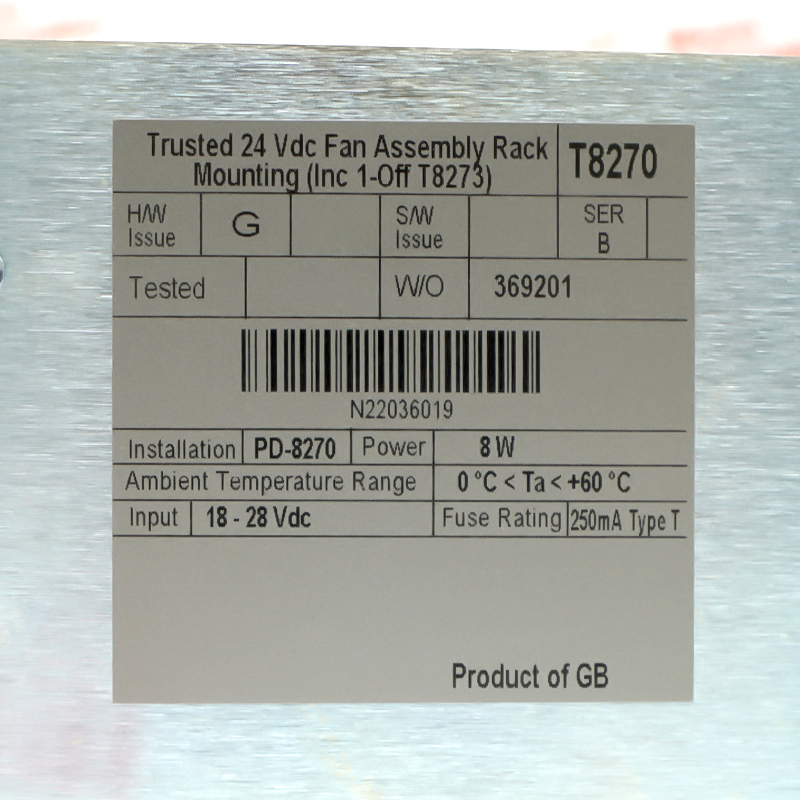

      Technical specifications for T8270

      • Manufacturer:
        ICS Triplex
      • Product Category:
        PLC System
      • Estimated shipping dimensions:
        8..8 x 48.1 x 26.7 cm
      • Weight:
        1.8 kg
      • Tariff Code:
        8537101190
      • Country of origin:
        USA
      • Place of shipment:
        Xiamen, Fujian, China
      • Voltage Range:
        18 Vdc to 28 Vdc
      • Fans:
        4-off Papst Type 8414NG
      • Individual Fan MTBF at 40°C:
        70,000 hours
      • Individual Fan MTBF at 70°C:
        35,000 hours
      • Fusing:
        Internal 250 mA anti-surge
      • Power Consumption:
        2 x 4 W
      • Air Flow (at 3100 rpm):
        69 m3 /h (40.6 ft3 /min)
      • Operating Temperature:
        0 °C to +60 °C (+32 °F to +140 °F)
      • Non-operating Temperature:
        -20 °C to +70 °C (-4 °F to +158 °F)
      • Relative Humidity range:
        10 % – 95 %, non-condensing
      • Stock:
        100
      Ask for Quote

      Alternative Names

      T827O T8270C T8231C T8231 T8290 T8290C T8243 T8235 T8240 T8292 T8293 T8293C

      Information

      Overview Manuals Mandatory Installation Restrictions Main Features

      Features:

      • Simple installation and connection
      • Capable of moving 69 m3/h (40.6 ft3/min)
      • Trusted 24 Vdc Fan Assembly Rack Mounted

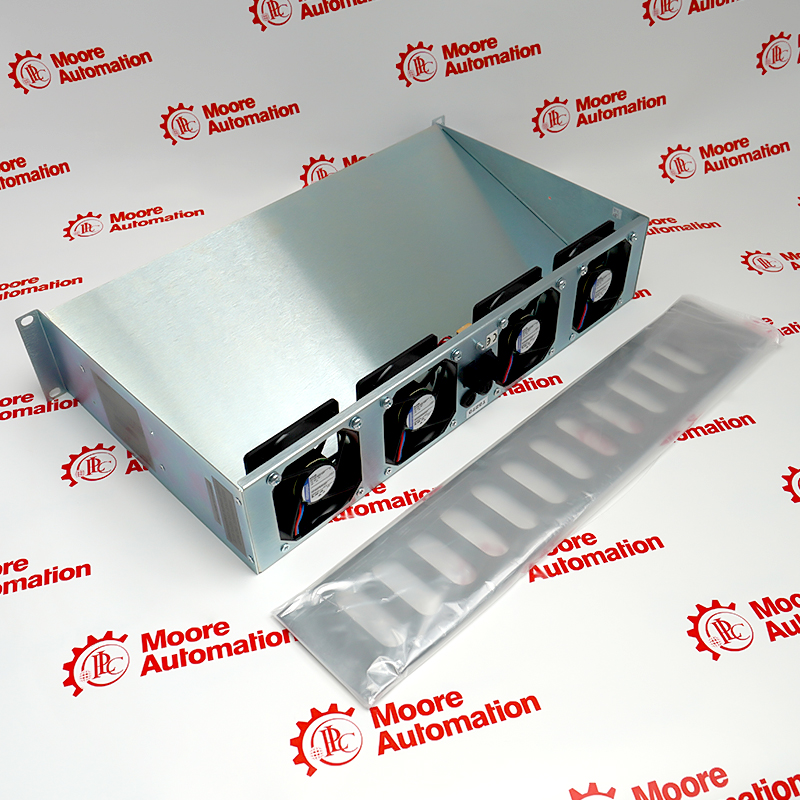

      The Trusted Fan Tray 24 Vdc Rack Mounted comprises four fans mounted vertically at the rear of a 2U high chassis. The chassis containing the fans incorporates a baffle to prevent air drawn by the fans flowing through the module chassis immediately above the Fan Tray. Air exhausted by the fans into the rear of the system cabinet is drawn upwards and out of the cabinet by roof-mounted fans.

      The Fan Tray is powered from dual 24 Vdc supplies arranged such that the fans are supplied in pairs via 250 mA anti-surge fuses. The 0 V supply is connected via terminal block TB1. Each fan is capable of moving 69 m3/h when operating with a nominal rotor speed of 3100 rpm. Protection against overloading and reverse polarity is provided electronically for each fan.

      The T8270 ICS Triplex Fan Module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
      ICS Triplex T8270 Fan Module manual(Datasheets), Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
      According to Rockwell Automation's safety compliance documentation, application layouts must adhere to the following stringent guidelines:

      Quantity Baseline: Standard systems engineering requires one T8270 component per active module chassis within each rack unit.
      Power Distribution Restrictions: Power must be supplied via a dedicated, reliable power distribution unit (e.g., a T8292 24 Vdc miniature circuit breaker module). A single T8292 circuit breaker circuit can support up to five T8270 fan mounts and one top exhaust unit.
      Empty Slot Rule: Empty slots affect calculated airflow pressure. Any unused T8270 space in the rack must be physically sealed using a standard single-width T8191 or triple-width T8193 baffle to force cool airflow through the active processor.
      The main supply for the Fan Tray is derived from a Trusted Power Distribution Unit MCB 24 Vdc - T8292 via a Trusted Fan Power Cable – TC-011-01. The same type of cable is used to interconnect the Fan Trays/Roof Fans in a Trusted System module rack. A fully populated module rack will include five Fan Trays, and may also include a Roof Fan Unit. This is the maximum number of Fan Trays/Roof Fan Units that may be powered from a single Trusted Power Distribution Unit miniature circuit breaker (MCB).

      Manuals

      Technical notes

      The ICS Triplex T8270 is a rack-mount 24Vdc forced-air-cooled fan assembly designed for Trusted Triple Redundancy (TMR) high-availability safety control systems. This compact 2U rack-mount assembly integrates four high-performance Papst vertical fans, supports a wide input voltage range from 18Vdc to 28Vdc, and consumes only 8W of power. It delivers a robust airflow of 69m³/h at 3100rpm and features built-in 250mA surge protector, overload protection, and reverse connection protection, effectively eliminating localized hotspots within the rack and significantly extending the lifespan of the core control modules.

      Ask our team:

      Related Products

      Browsing history

      FAQ

      View All Faqs
      • What key extension interface functions does the T8270 provide in fault-tolerant industrial automation architectures?
        The T8270 is a Trusted Modular Redundancy (TMR) extension interface module designed to promote scalability in high-integrity systems, build redundant communication paths, and achieve deterministic interconnection between safety-critical control subsystems.
      • How does the T8270 maintain deterministic communication synchronization under mission-critical operating conditions?
        The T8270 utilizes the principles of Triple Modular Redundancy (TMR) architecture and industrial-grade communication infrastructure to ensure synchronous, fault-tolerant, and highly reliable data exchange.
      • Why is the T8270 considered an indispensable component in scalable safety instrumented systems and high-availability automation infrastructures?
        The T8270 provides reliable scalability for Safety Integrity Level (SIL) control architectures by supporting resilient connectivity between processors, I/O modules, communication components, and distributed safety platforms.
      • How does the T8270 maintain communication integrity in industrial environments with severe electromagnetic interference?
        The T8270 employs ruggedized industrial electronics, optimized backplane wiring, and noise-resistant circuitry to mitigate electromagnetic interference and maintain signal fidelity.
      • Which types of industrial applications most commonly integrate the T8270 module?
        The T8270 is widely used in oil and gas facilities, petrochemical plants, offshore production systems, and power generation infrastructure requiring fault-tolerant automation and high-integrity communication extensions.
