Features:
- Trusted 40-Channel 24 Vdc Digital Input FTA for the documented ICS Triplex Trusted.
- Input channels: 40 Channels.
- Field supply: 18 to 32 Vdc.

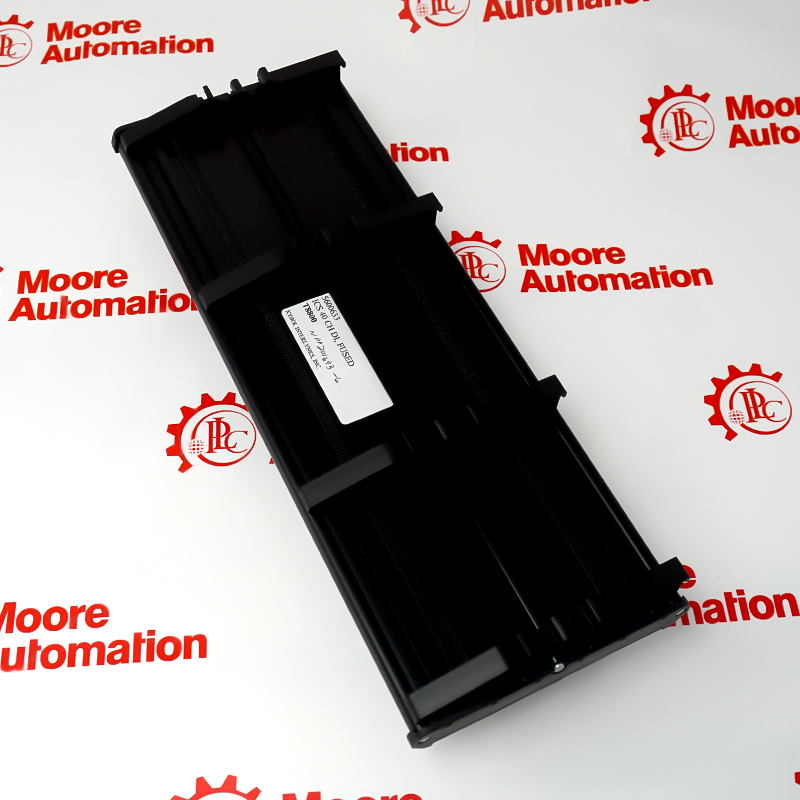

T8800 belongs to the ICS Triplex Trusted and performs the documented trusted 40-channel 24 vdc digital input fta role in the ICS Triplex Trusted TMR safety system. The retained technical evidence records Input channels: 40 Channels; Field supply: 18 to 32 Vdc; Channel current: 6.4 mA per channel. The full marking, receiving hardware, connectors or terminals, configuration dependencies and installed position must be matched before substitution.
For installation, retain the ICS Triplex Trusted receiving position, connector or terminal arrangement and configuration record. After power restoration, review diagnostics and test the affected operating path before process release.
The T8800 Trusted 40-Channel 24 Vdc Digital Input FTA is supplied only after the complete hardware identity, condition and current OEM lifecycle status have been confirmed.
ICS Triplex T8800 Trusted 40-Channel 24 Vdc Digital Input FTA Manual(Datasheets), Link
Important Notice: The linked document or internal product-family information must identify the listed model or its documented family. Confirm the complete order code, hardware revision and installed-system requirements before replacement. Accessories, cables, software and certificates are included only when stated in the quotation. All prices are shown in USD.
Signal Handling: T8800 performs the trusted 40-channel 24 vdc digital input fta function within the ICS Triplex Trusted. The retained documentation identifies input channels as 40 Channels; apply that value only to this documented execution.
Match the complete label, hardware form and functional position before transferring any setting, cable or termination from the removed unit.
Rack Review: approve T8800 only for the documented ICS Triplex Trusted TMR safety system. Compare rack, carrier or panel generation, connector keying, terminal numbering and all paired assemblies with the installation drawings.

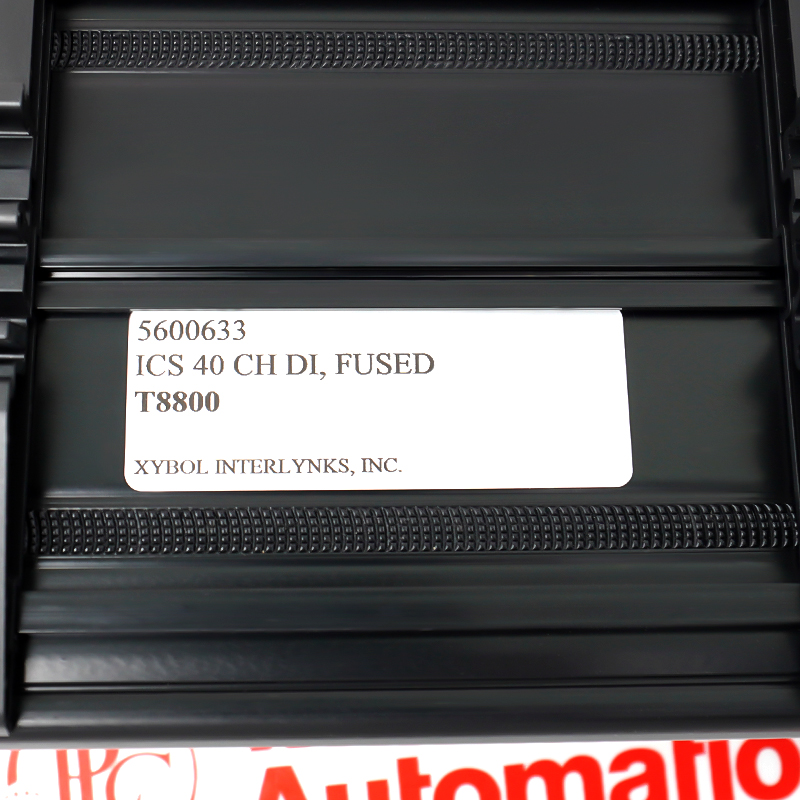

Photograph both sides and the installed position before removal so revision markings, jumpers, addressing and channel allocation can be reconstructed accurately.
Service Checks: isolate the equipment, remove stored energy and inspect the receiving hardware before installing T8800.
Restore power in the approved sequence, review status and diagnostics, then test every affected control, signal, relay, communication, protection or monitoring path against the commissioning record.
