Features:
- High-Power IGBT (Insulated Gate Bipolar Transistor) Module
- Designed for heavy-duty industrial switching and power conversion applications that require high voltage and high current handling
- Features screw-type electrical mounting for secure high-current connections

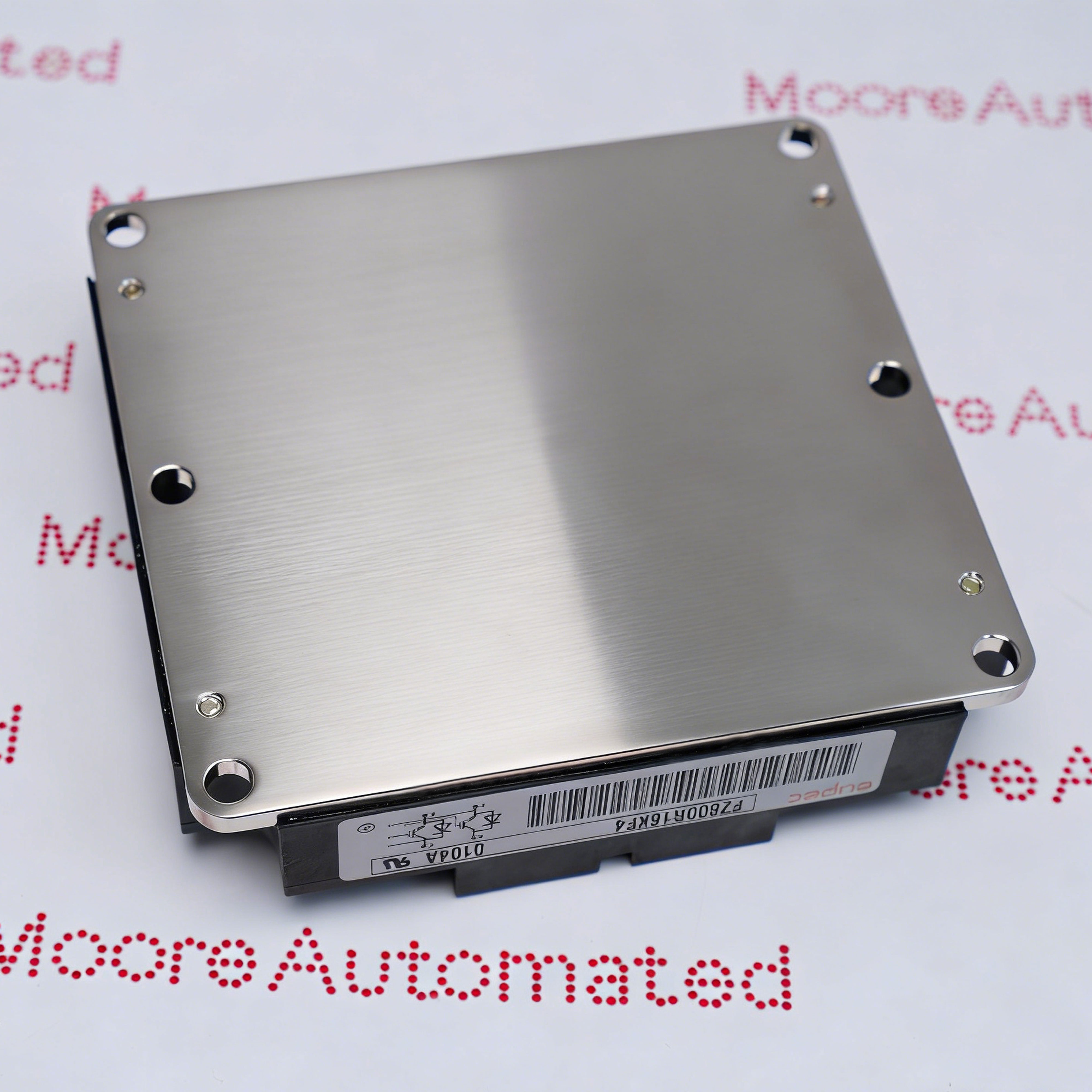

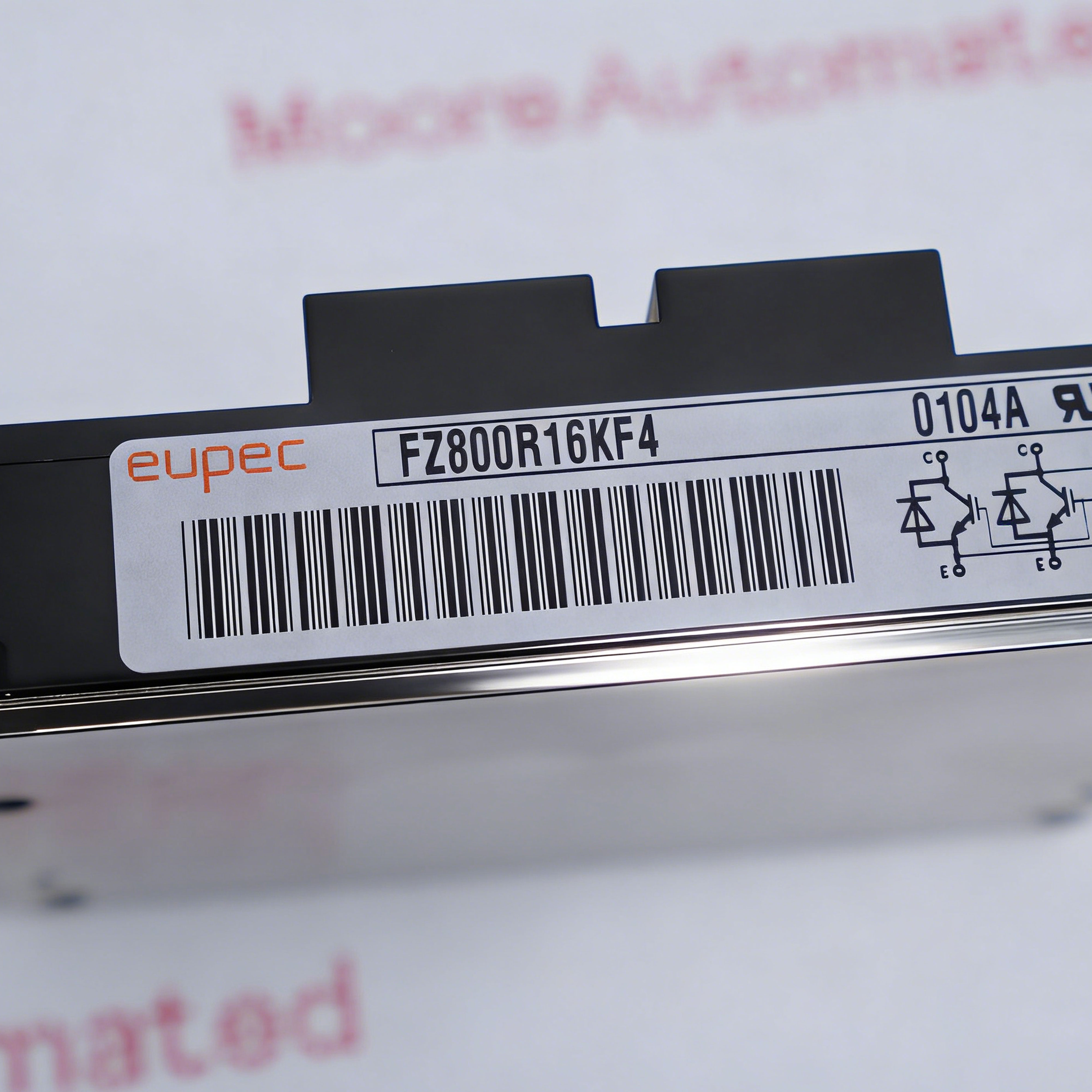

The FZ800R16KF4 is a high-power IGBT module designed for demanding industrial power conversion and motor drive applications. It efficiently switches and controls high-power loads in systems such as industrial drives, renewable energy inverters, UPS equipment, and high-power converters. The module integrates a freewheeling diode and an optimized thermal path to ensure reliable operation under high switching frequencies and heavy load cycles.
The FZ800R16KF4 is designed to minimize conduction and switching losses while maintaining excellent thermal performance. The module package supports efficient heat dissipation and simplifies mechanical integration, helping engineers design compact and robust conversion systems. These characteristics make it suitable for long-term industrial operation where efficiency, durability, and stability are extremely important.
The FZ800R16KF4 Infineon Technologies High-Power IGBT Module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Infineon Technologies FZ800R16KF4 High-Power IGBT Module datasheet(manual), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The FZ800R16KF4 operates similarly to a high-speed electronic switch. Its IGBT structure utilizes a low-power gate signal to control a large collector-emitter current. When a gate voltage is applied, the device allows current to flow through the collector-emitter path to drive the load; when the gate signal is removed, the current is rapidly interrupted. Integrated diodes provide freewheeling during switching, enabling efficient pulse-width modulation voltage and current control in high-power conversion systems.
Industrial Motor Drives: Widely used in variable frequency drives (VFDs) and servo systems to control the speed and torque of large motors such as pumps, fans, and compressors.
Renewable Energy Systems: A key component in solar inverters and wind turbine converters, converting direct current (DC) from solar panels or turbines into AC suitable for grid connection.
Power Infrastructure:
Uninterruptible Power Supply (UPS): Provides critical power backup for data centers and hospitals.
Power Quality Conditioning: Devices used to stabilize voltage and filter harmonics in industrial power grids.
Transportation and Traction: Used in traction systems for electric trains, trams, and hybrid vehicles to control the acceleration and braking of motors.
Specialized Industrial Equipment:
Welding Machines: Integrated into high-current inverter-based welding systems for precise arc control.
Medical Equipment: Used in high-power equipment such as magnetic resonance imaging (MRI) machines, X-ray generators, and medical lasers.
