Features:
- 12.1-inch widescreen TFT touch display with 1280 x 800 resolution.
- PROFINET plus MPI/PROFIBUS DP communication interfaces.
- 12 MB configuration memory for approved WinCC Comfort projects.

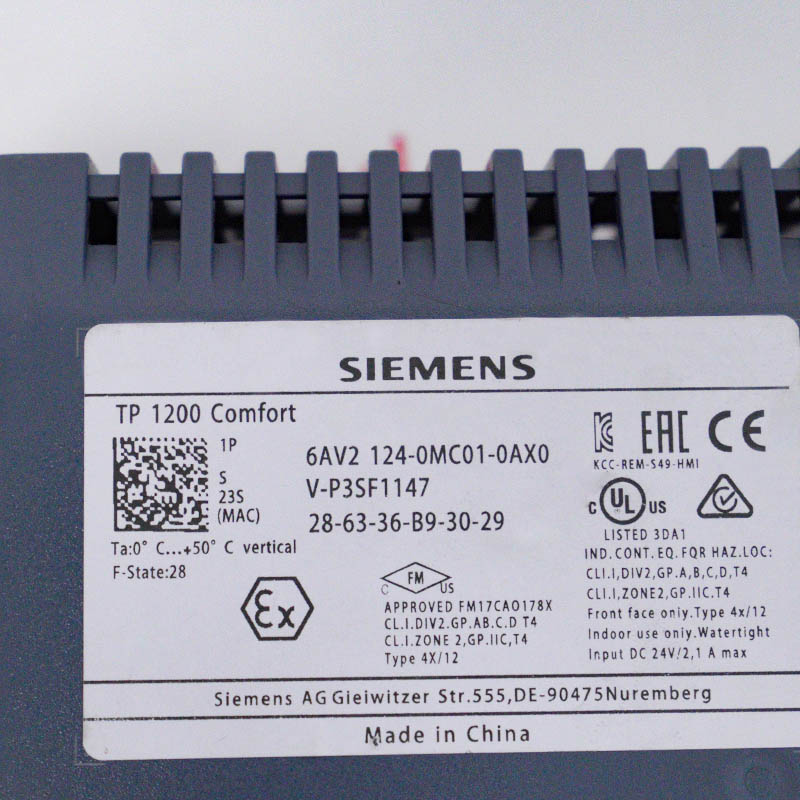

The complete 6AV2124-0MC01-0AX0 article number controls the TP1200 Comfort execution. Match the project, firmware, communication architecture, supply, cutout and installed options before replacement.
Record the article and version, device image, WinCC project, IP and fieldbus settings, users, recipes, archives, alarms, scripts, certificates and panel wiring. After replacement, restore only the controlled project and validate all screens, keys, alarms and controller links.
The 6AV2124-0MC01-0AX0 Siemens SIMATIC HMI TP1200 Comfort Panel is listed as Active / Available from OEM. Current revision, availability and supplied scope are confirmed in the written quotation.
Siemens 6AV2124-0MC01-0AX0 documentation and reference links.
Important Notice: Confirm the complete order identity, hardware execution, receiving-system configuration and required document revision before replacement.
The TP1200 Comfort uses a 12.1-inch widescreen TFT touch display with 1280 x 800 resolution and 16 million colors for the engineered WinCC application.
Preserve the approved PROFINET, MPI or PROFIBUS DP design, device name, IP parameters, controller connections and cable shielding.
Archive the complete WinCC project, device image, licenses, users, recipes, certificates and runtime data required by the controlled installation.
