High-performance power electronic control module for industrial medium-voltage drive systems, primarily used for precise speed control and efficient energy management of large motors. This device can monitor and dynamically adjust motor speed, torque, and operating status in real time under complex operating conditions, ensuring stable motor operation over a wide load range.
This product also features comprehensive system protection and diagnostic functions, capable of real-time monitoring and response to critical conditions such as overcurrent, overvoltage, overheating, and abnormal operation, effectively reducing equipment failure risks and improving overall system safety.

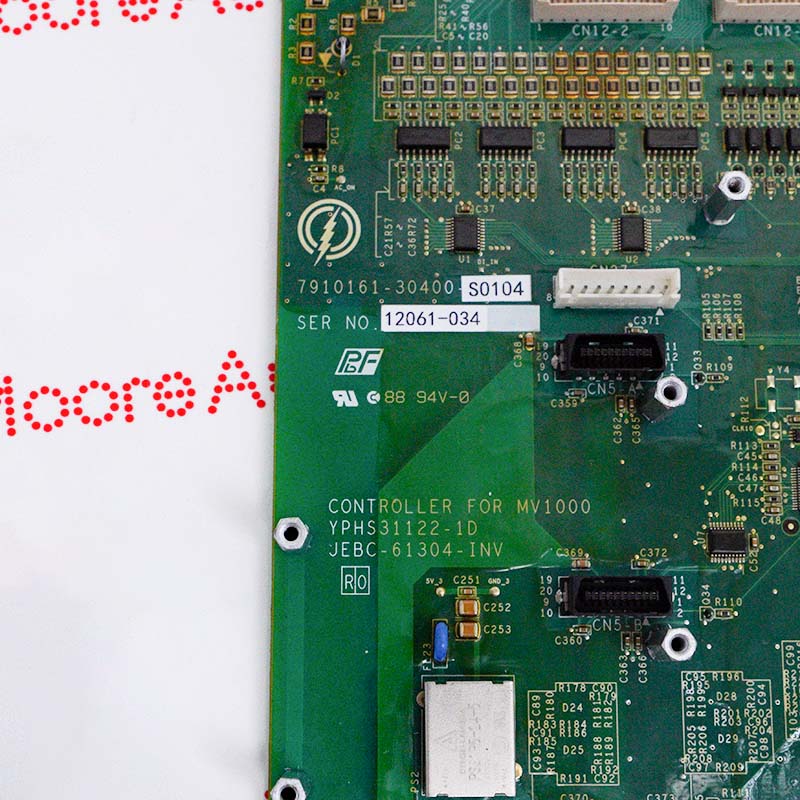

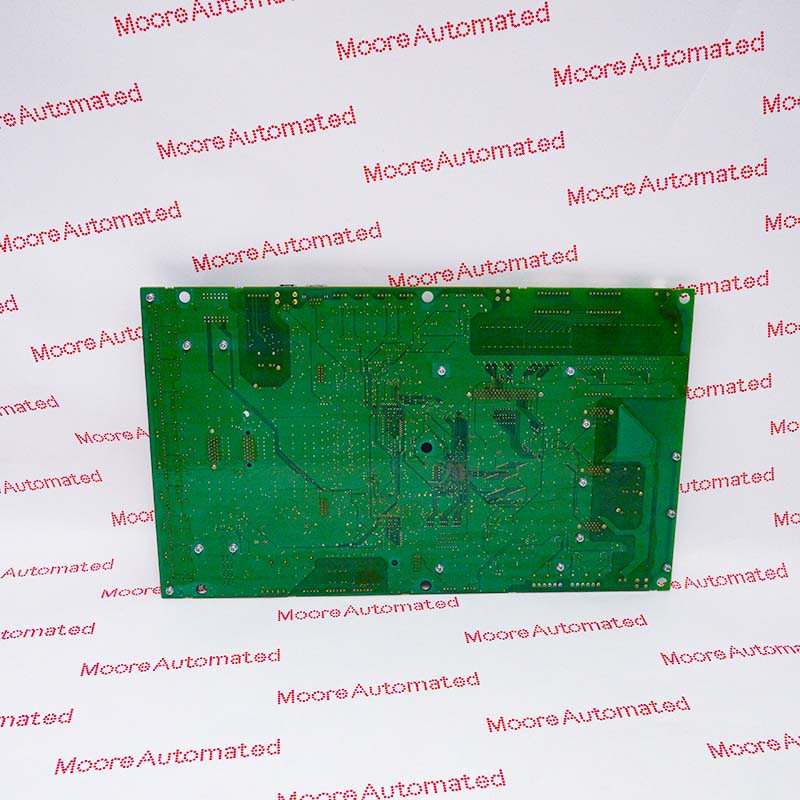

The MV1000 YPHS31122-1D 7910161-30400-S0104 Yaskawa Control PCB Board Module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Yaskawa MV1000 YPHS31122-1D 7910161-30400-S0104 Control PCB board manual(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
By combining high-speed digital control algorithms, it can dynamically adjust the output voltage and frequency, thereby achieving precise control of the motor's magnetic field and torque. The system employs a closed-loop feedback mechanism, acquiring operating parameters in real time and continuously optimizing the control strategy based on load changes to ensure the motor always operates efficiently and stably.
In the MV1000 system, this specific board assembly (often referred to as the "inverter board" or "interface board") is responsible for the following functions:
PWM Signal Distribution: It converts the control logic into high-voltage pulse-width modulation (PWM) signals required to drive the power units.
Unit Monitoring: It supports feedback loops to monitor the status of individual power units to ensure overall system stability.
Fiber Optic Isolation: Because the MV1000 is a medium-voltage driver, these boards are typically used with fiber optic interfaces to maintain electrical isolation between the low-voltage control circuitry and the high-voltage power components.
