Features:
- AC Digital Input Modules

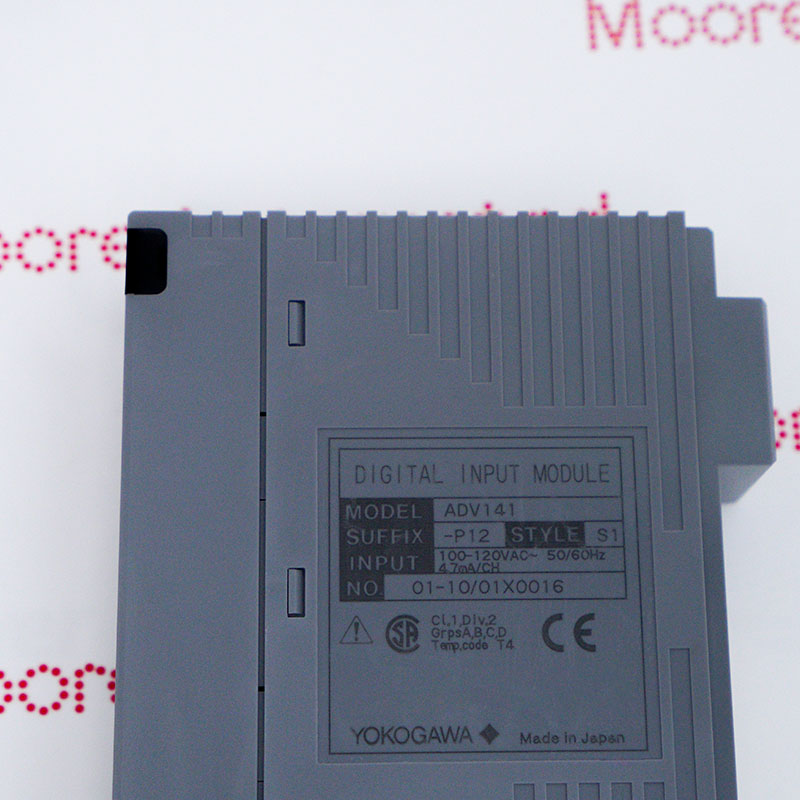

- Digital Input Module (16-channel, 100V - 120 V AC, Isolated)
- The AC Digital Input Modules receive 16-channel 100 V AC or 220 V AC ON/OFF signals
This module features high resolution, strong anti-interference capabilities, and excellent long-term stability, enabling reliable data acquisition in complex industrial environments. It provides accurate process variable information to the control system, thereby improving the overall system's measurement accuracy and operational reliability.
At the system application level, the ADV141-P12 S1 supports multi-channel analog signal input and employs comprehensive signal conditioning and isolation design to effectively suppress electromagnetic interference and ground loop effects.
The ADV141-P12 S1 YOKOGAWA Digital Input Module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
YOKOGAWA ADV141-P12 S1 Digital Input Module DATASHEET(manual), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
This module is typically used in conjunction with controllers or distributed control systems to achieve continuous monitoring and data transmission of key industrial parameters such as temperature, pressure, flow rate, and liquid level, meeting the high-reliability data acquisition requirements of industries such as power, petrochemicals, metallurgy, and manufacturing.
The ADV141-P12 S1 first isolates and filters the input analog signal, then converts the analog quantity into a digital signal through a high-precision analog-to-digital converter (ADC). The internal microprocessor and calibration algorithm linearize and compensate for errors in the conversion result, ultimately transmitting stable and reliable digital data to the control system for real-time monitoring of the field process.
