Features:
- AC Digital Input Modules
- Digital Input Module (16-channel, 100V - 120 V AC, Isolated)
- The AC Digital Input Modules receive 16-channel 100 V AC or 220 V AC ON/OFF signals

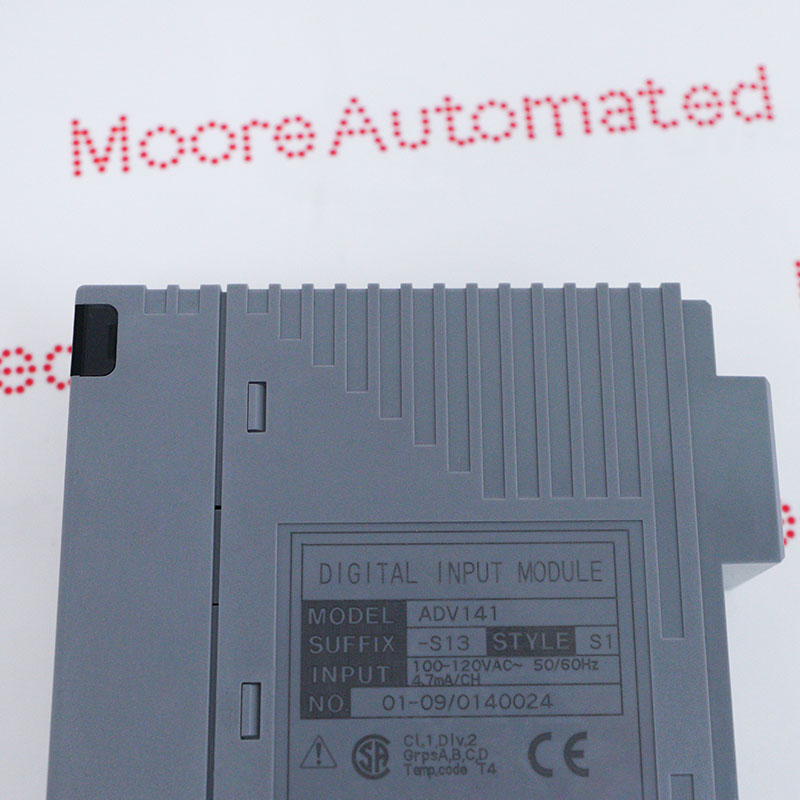

The Yokogawa ADV141-S13 S1 is a 16-channel AC digital input module designed specifically for the CENTUM VP process control system. It primarily receives 100V to 120V AC field switch signals and can monitor the status of limit switches, pressure switches, relay contacts, or AC motor operation feedback devices in real time.
As the S13 version, its electrical specifications are optimized for specific AC input thresholds to ensure accurate identification of "on" and "off" states. This module is widely used in power distribution and logic monitoring systems in the power, petrochemical, and manufacturing industries.
The ADV141-S13 S1 YOKOGAWA AC Digital Input Modules may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
YOKOGAWA ADV141-S13 S1 AC Digital Input Modules DATASHEET(manual), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
- Industrial Condition Monitoring: Directly receives on/off signals from field devices (e.g., limit switches, proximity switches, and pushbuttons).
- Heavy-Duty Control: Commonly used in demanding industries such as oil and gas, refineries, power generation, and chemicals.
- Redundant System: Supports dual redundancy configurations, allowing two modules to operate in parallel to ensure continuous system operation even if one module fails.
This module is part of the FIO (Field Network I/O) architecture. For external field cabling, the following components are typically used:
- Cables: Typically used with AKB332 dedicated cables.
- Connections: Supports crimped terminals to ensure a secure installation.
