Features:
- PanelView Plus 6 identity: 2711P-RDT7CM belongs to the documented PanelView Plus 6 family.
- Configuration: 7-inch touch display module for marine applications; the installation instructions identify the exact 2711P-RDT7CM catalog number and compatible modular terminal generations.
- Verification focus: Confirm catalog number, hardware series, display size, marine version, terminal generation, and mating logic module before replacement.

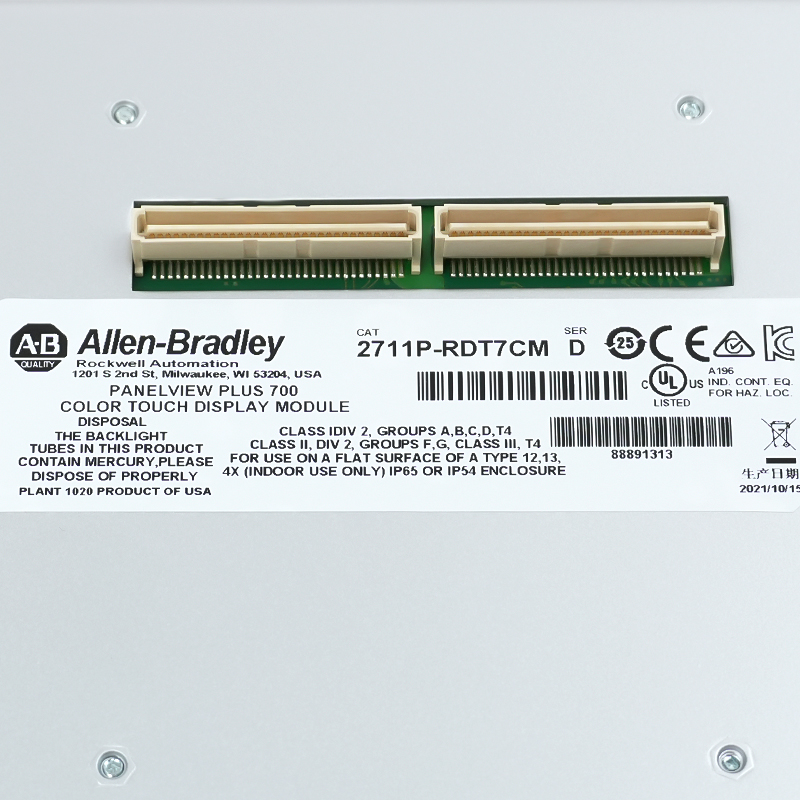

Allen-Bradley 2711P-RDT7CM is 7-inch marine color touch display module designed for PanelView Plus/PanelView Plus 6 modular operator terminals. According to the manufacturer documentation, it provides the color touchscreen display interface for a compatible terminal logic module. The ordering code identifies catalog number, hardware series, display size, marine version, terminal generation, and mating logic module, so the complete nameplate information should be reviewed whenever the item is being selected for a maintenance replacement, a system extension, or a spare-parts holding.
The technical content for 2711P-RDT7CM is limited to the manufacturer product page and the cited official datasheet or manual. Final compatibility depends on the PanelView logic module, terminal generation, bezel/cutout, environment, firmware, and power architecture.
The Allen-Bradley 2711P-RDT7CM 7-inch marine color touch display module is supported by Moore Automated for verified industrial replacement and spare-part requirements.
Allen-Bradley 2711P-RDT7CM 7-inch marine color touch display module manual(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Compatibility Checks
Confirm the PanelView logic module, terminal generation, bezel/cutout, environment, firmware, and power architecture. The complete 2711P-RDT7CM marking and nameplate data should be compared with the installed item before a purchase order is released.
Installation Planning
Follow the manufacturer instructions and verify ESD control, ribbon/interface connector, gasket, retaining hardware, enclosure rating, and terminal power isolation. Accessories, connectors, cables, sockets, or terminal blocks must be ordered separately unless the quotation lists them.
Configuration Reference
7-inch touch display module for marine applications; the installation instructions identify the exact 2711P-RDT7CM catalog number and compatible modular terminal generations. Use the official ordering information to confirm every suffix, revision, and option that applies to the required unit.
