      Bently Nevada 330101-00-12-10-02-05
      Bently Nevada 330101-00-12-10-02-05
      Bently Nevada 330101-00-12-10-02-05
      Bently Nevada 330101-00-12-10-02-05
      Bently Nevada 330101-00-12-10-02-05
      Bently Nevada 330101-00-12-10-02-05

      • ISO 9001:2015 Certified

        Our quality management system covers sourcing,testing and dispatch

      • View Our Success Stories

        Real stories from real customer orders
      In Stock
      Ships by Monday, September 21
      Fast Shipping Available

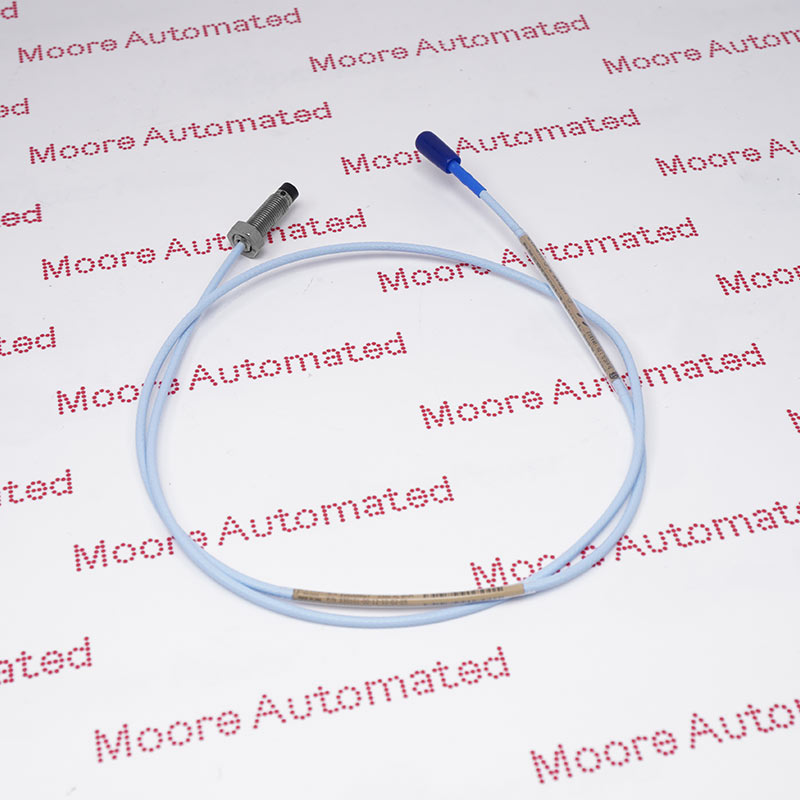

      3300 XL 8 mm Proximity Probes

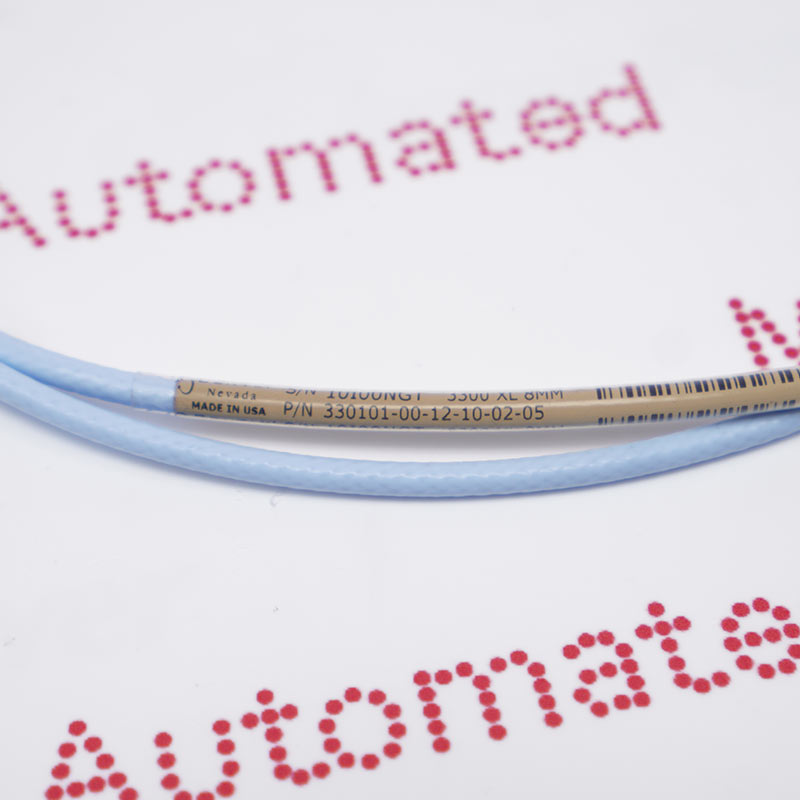

      330101-00-12-10-02-05

      Spare Part Number

      PN330101-00-12-10-02-05

      Product Information:

      Part number 330101-00-12-10-02-05 identifies the Bently Nevada 3300 XL 8 mm proximity probe. This is a standard threaded non-contact eddy current sensor manufactured by Bently Nevada, used to monitor radial vibration, axial thrust position, or rotational speed (critical phase) in industrial rotating machinery.

      Based on the principle of high-frequency electromagnetic eddy currents, this probe, when used with a proximity sensor, outputs a high linear voltage signal of 7.87 V/mm (200 mV/mil) within a linear range of 2 mm (80 mil).

      It is specifically designed for non-contact measurement of shaft vibration, static displacement (e.g., axial position), and critical phase velocity in hydrodynamic bearing units of rotating machinery such as steam turbines and compressors, and fully complies with API 670 International Petroleum Institute standard.

      Product image is representative; revision or series may vary. Contact us to request a specific version.
      Get a Quote
      • One-year warranty
      • Global shipping
      • Exact-model verification
      WhatsApp: +86 180 2077 6792 Email parts team
      01


      Model Verified

      Model, revision and nameplate reviewed
      02


      Email confirmation

      You will get an email confirming that we have received your enquiry
      03


      Dedicated Account Manager

      One of our team will be in touch to confirm your part(s) specification and condition
      04


      Your quote

      You will receive a comprehensive quote tailored to your specific needs
      Technical specifications for

      330101-00-12-10-02-05

      0 TECHNICAL PARAMETERS
      • Manufacturer:
        Bently Nevada
      • Product Category:
        Sensor
      • Spare Part Number:
        330101-00-12-10-02-05
      • Estimated shipping dimensions:
        1.5 x 1.2 x 112 cm
      • Weight:
        0.04 kg
      • Tariff Code:
        8537101190
      • Country of origin:
        USA
      • Place of shipment:
        Xiamen, Fujian, China
      • Unthreaded Length:
        0.0 in
      • Overall Case Length:
        1.2 inches
      • Total Length:
        1.0 meter (3.3 feet)
      • Connector and Cable-Type:
        Miniature coaxial ClickLoc connector, standard cable
      • Agency Approval:
        CSA, ATEX, IECEx Approvals
      • Probe Tip Material:
        Polyphenylene sulfide (PPS)
      • Probe Case Material:
        AISI 303 or 304 stainless steel (SST)
      • Operating and Storage Temperature:
        -52°C to +177°C (-62°F to +350°F)
      • Probe Relative Humidity:
        Less than a 3% change in Average Scale Factor (ASF) when tested in 93% humidity in accordance with IEC standard 68 2 3 for up to 56 days
      • Product Type:
        Proximity Probes
      • Category Series:
        3300 XL Series
      • Series:
        3300 System
      • Stock Availability:
        100
      Ask for Quote
      WHAT HAPPENS NEXT?

      From enquiry to delivery

      Six clear steps show what information is required and what the written quotation will contain.
      • 01

        Find the product

        Search the part number or send an inquiry for obsolete, discontinued or hard-to-find parts.
      • 02

        Provide the details

        Share the exact part number, quantity, condition, revision, destination and any required certificates or photos.
      • 03

        Review the quotation

        Receive price, currency, condition, availability, warranty, lead time, shipping terms and quotation validity in writing.
      • 04

        Confirm the order

        Accept the quotation in writing and complete the required payment before shipment.
      • 05

        Pay by bank transfer

        Pay the full invoiced amount by bank wire in RMB/CNY, GBP, EUR or USD using the official invoice details.
      • 06

        Verify and dispatch

        The item receives a pre-shipment inspection and suitable protective packaging. Functional testing is performed only where appropriate equipment and procedures are available for the specific item. We confirm the applicable inspection scope and provide tracking after dispatch.
      Request a Verified Quote
      BUYER INFORMATION

      Product condition level information

      Commercial details are confirmed in writing before payment.
      • 01

        Factory Sealed

        Unused product with the original factory seal intact; packaging age or storage marks may still be present.

        view
      • 02

        Original Pack

        Unused product in original manufacturer packaging that was not originally factory sealed.

        view
      • 03

        Factory New

        New and current product sourced through the manufacturer or authorized supply channel when expressly confirmed in the quotation.

        view

      Alternative Names

      330101 00 12 10 02 05 330I0I-00-I2-I0-02-05 33O1O1-OO-12-1O-O2-O5 330101-00-12-10-02-00 330101-00-12-10-02-CN 330101-00-12-10-02-BR 330101-00-12-10-02-RU 330101-00-12-10-01-05 330101-00-12-10-12-05 330101-00-12-10-11-05 330101-00-12-05-02-05 330101-00-12-15-02-05 330101-00-12-50-02-05

      Information

      Overview Manuals Basic Info Ordering Information for Probes System Integration Rules

      Features:

      • 3300 XL 8 mm Proximity Probes
      • 3300 XL 8 mm Proximity Transducer System
      • 330101 3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor
      The 3300 XL probe and extension cable also reflect improvements over previous designs. A patented TipLoc molding method provides a more robust bond between the probe tip and the probe body. The probe’s cable incorporates a patented CableLoc design that provides 330 N (75 lbf) pull strength to more securely attach the probe cable and probe tip.

      8 mm probes provide a thicker encapsulation of the probe coil in the molded PPS plastic probe tip. This results in a more rugged probe. The larger diameter of the probe body also provides a stronger, more robust case. We recommend that you use 8 mm probes when possible to provide optimal robustness against physical abuse.

      The 330101-00-12-10-02-05 Bently Nevada 3300 XL 8 mm Proximity Probes may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
      Bently Nevada 330101-00-12-10-02-05 3300 XL 8 mm Proximity Probes Manuals(Datasheets), Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
      • Model: 330101-00-12-10-02-05
      • Warranty: One-year warranty
      • Condition: Brand new, original, in stock
      • Product Family: 3300 XL 8 mm Proximity Transducer System
      3300 XL 8 mm Proximity Probes:
      330101 3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor
      330101-Axx-Bxx-Cxx-Dxx-Exx

      A: Unthreaded Length
      Order in increments of 0.1 in.
      Length configurations:
      Maximum unthreaded length: 8.8 in.
      Minimum unthreaded length: 0.0 in.
      Example: 0 4 = 0.4 in.

      B: Overall Case Length
      Order in increments of 0.1 in.
      Standard thread configurations:
      Maximum case length: 9.6 in.
      Minimum case length: 0.8 in.
      Example: 2 4 = 2.4 in.

      C: Total Length
      05: 0.5 meter (1.6 feet)
      10: 1.0 meter (3.3 feet)
      15: 1.5 meter (4.9 feet)
      20: 2.0 meters (6.6 feet)
      30: 3.0 meters (9.8 feet)
      50: 5.0 meters (16.4 feet)
      90: 9.0 meters (29.5 feet)

      D: Connector and Cable-Type
      01: Miniature coaxial ClickLoc connector with connector protector, standard cable
      02 Miniature coaxial ClickLoc connector, standard cable
      11: Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable
      12: Miniature coaxial ClickLoc connector, FluidLoc cable

      E: Agency Approval Option
      00: Not required
      05: CSA, ATEX, IECEx Approvals
      To maintain the factory-calibrated scale factor of 200 mV/mil (7.87 V/mm), this probe must be integrated according to the Bently Nevada Standard System Guidelines:
      9-meter loop configuration: Because this probe integrates a 1.0-meter cable, an 8.0-meter extension cable must be used (e.g., the previously mentioned 330130-080-00-05 standard cable).
      Proximity sensor: The final signal must be connected to a 9.0-meter calibrated proximity sensor. Using a 1.0-meter probe with a 4.5-meter cable or a 5.0-meter proximity sensor will result in impedance mismatch, rendering the mechanical protection reading invalid.

      Manuals

      Technical notes

      3300 XL 8mm Standard Proximity Probe: The prefix code 330101 indicates that it uses a 3/8-24 UNF imperial standard fully threaded housing and the probe tip diameter is 8 mm. The suffix selection parameter 00-12-10-02-05 defines the probe specifications: 0.0 inch unthreaded portion length (00) (i.e., fully threaded construction), 1.2 inch total housing length (12), 1.0 meter (3.3 ft) total probe cable length (10), standard ClickLoc coaxial connector and standard insulated cable (02), and multiple explosion-proof/institutional joint certifications such as CSA, ATEX and IECEx (05).
      PRODUCT & ORDER FAQS

      Questions buyers ask about 330101-00-12-10-02-05

      • Why is the Bentley Nevada 330101-00-12-10-02-05 the preferred choice for critical turbomachinery applications requiring micron-level displacement measurement accuracy?

        The 330101-00-12-10-02-05 offers stable eddy current sensing performance, making it suitable for turbines, compressors, generators, and other mission-critical rotating equipment.

      • How does the Bently Nevada 330101-00-12-10-02-05 maintain measurement linearity within its calibrated operating clearance range?

        The 330101-00-12-10-02-05 employs optimized eddy current sensing technology, providing highly linear output characteristics within its specified calibration range.

      • Why is the cable configuration of the Bently Nevada 330101-00-12-10-02-05 critical to signal integrity and sensor system accuracy?

        The cable configuration of the 330101-00-12-10-02-05 is carefully designed to maintain calibration consistency and minimize signal attenuation throughout the measurement chain.

      • Why is the Bently Nevada 330101-00-12-10-02-05 considered a key component in predictive maintenance programs?

        The 330101-00-12-10-02-05 continuously collects mechanical condition data, enabling early detection of imbalances, misalignments, loosening, and bearing-related issues.

      • How does the Bently Nevada 330101-00-12-10-02-05 differ from traditional industrial proximity sensors?

        Unlike standard proximity sensors, the 330101-00-12-10-02-05 is specifically designed for precision vibration and shaft displacement monitoring in critical rotating machinery.
