- 3300 XL 8 mm Proximity Probes
- 3300 XL 8 mm Proximity Transducer System
- 330101 3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor
The 3300 XL probe and extension cable also reflect improvements over previous designs. A patented TipLoc molding method provides a more robust bond between the probe tip and the probe body. The probe’s cable incorporates a patented CableLoc design that provides 330 N (75 lbf) pull strength to more securely attach the probe cable and probe tip.
8 mm probes provide a thicker encapsulation of the probe coil in the molded PPS plastic probe tip. This results in a more rugged probe. The larger diameter of the probe body also provides a stronger, more robust case. We recommend that you use 8 mm probes when possible to provide optimal robustness against physical abuse.

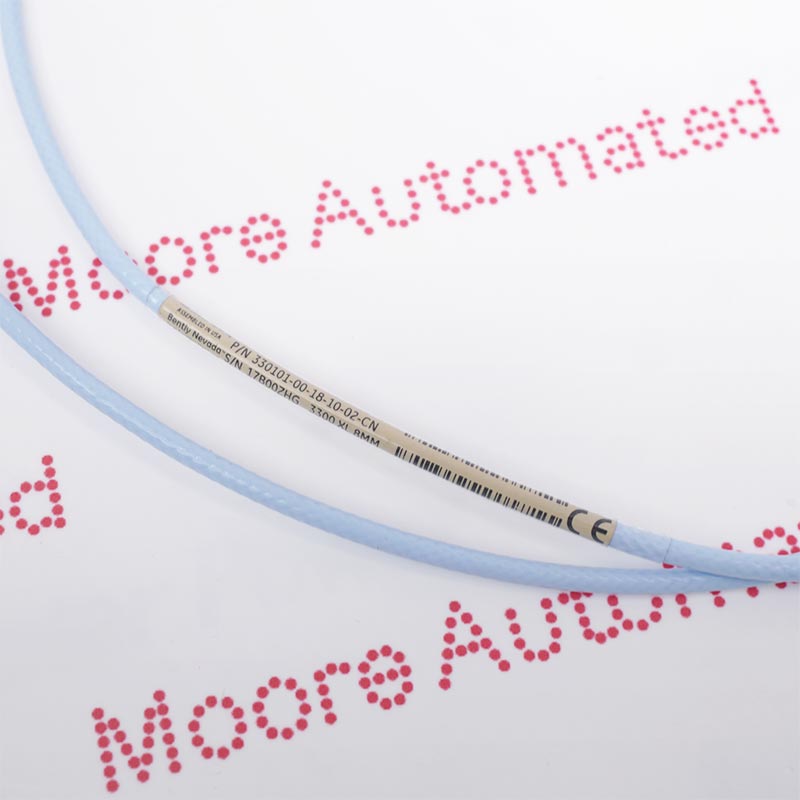

The 330101-00-18-10-02-CN Bently Nevada 3300 XL 8 mm Proximity Probes may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330101-00-18-10-02-CN 3300 XL 8 mm Proximity Probes Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
- Model: 330101-00-18-10-02-CN
- Warranty: One-year warranty
- Condition: Brand new, original, in stock
- Product Family: 3300 XL 8 mm Proximity Transducer System
3300 XL 8 mm Proximity Probes:
330101 3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor
330101-Axx-Bxx-Cxx-Dxx-Exx
A: Unthreaded Length
Order in increments of 0.1 in.
Length configurations:
Maximum unthreaded length: 8.8 in.
Minimum unthreaded length: 0.0 in.
Example: 0 4 = 0.4 in.
B: Overall Case Length
Order in increments of 0.1 in.
Standard thread configurations:
Maximum case length: 9.6 in.
Minimum case length: 0.8 in.
Example: 2 4 = 2.4 in.
C: Total Length
05: 0.5 meter (1.6 feet)
10: 1.0 meter (3.3 feet)
15: 1.5 meter (4.9 feet)
20: 2.0 meters (6.6 feet)
30: 3.0 meters (9.8 feet)
50: 5.0 meters (16.4 feet)
90: 9.0 meters (29.5 feet)
D: Connector and Cable-Type
01: Miniature coaxial ClickLoc connector with connector protector, standard cable
02 Miniature coaxial ClickLoc connector, standard cable
11: Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable
12: Miniature coaxial ClickLoc connector, FluidLoc cable
E: Agency Approval Option
00: Not required
05: CSA, ATEX, IECEx Approvals
Due to its compact size and compliance with local hazardous materials safety standards, this probe can be directly mounted within a compact bearing housing, providing real-time telemetry data for mechanical protection. It is commonly used in refineries, petrochemical plants, and power plants to monitor:
Radial shaft vibration: Measures dynamic track motion to detect imbalances or shaft misalignment.
Axial thrust position: Tracks longitudinal shaft drift to prevent internal rotor-stator collisions.
Keyphasor® reference: Provides a phase timing mark per revolution for calculating accurate shaft speed (RPM).
