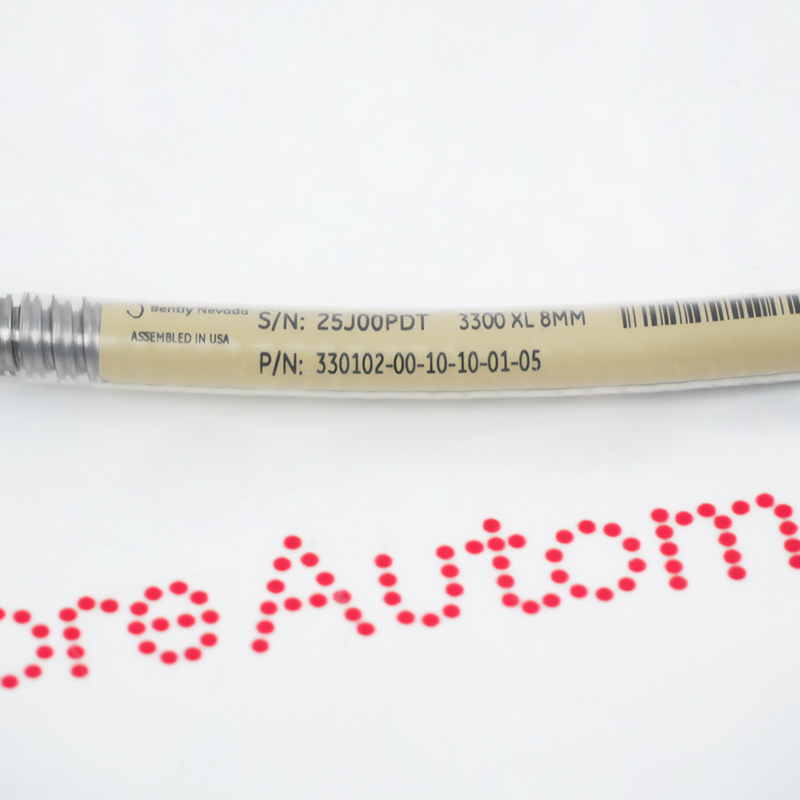

      Bently Nevada 330102-00-10-10-01-05
      Bently Nevada 330102-00-10-10-01-05
      · Product image is representative; revision or series may vary. Contact us to request a specific version.
      Get a Quote

      330102-00-10-10-01-05

      3300 XL 8 mm Proximity Probes
      In Stock
      Ships by Tuesday, June 23
      Fast Shipping Available

      Product Information:

      330102-00-10-10-01-05 refers to the Bently Nevada 3300 XL 8 mm armored proximity probe. This threaded, non-contact eddy current sensor, manufactured by Baker Hughes/Bently Nevada, is used to monitor radial vibration, axial thrust position, or critical phase velocity in heavy industrial machinery.

      Utilizing the principle of high-frequency electromagnetic eddy currents, this probe, when used with a proximity sensor, outputs a high-linearity voltage signal of 7.87 V/mm (200 mV/mil) within a 2 mm measurement range with no signal loss. Its built-in stainless steel armor significantly improves the tensile strength and scratch resistance of the cable.

      This probe is specifically designed for non-contact measurement of shaft vibration, dynamic displacement, and critical phase velocity in hydrodynamic bearing units of large rotating machinery such as steam turbines and compressors, and fully complies with API 670 (International Petroleum Institute) standards.

      Warranty Policy
      We provide 1 year warranty for all remaining parts.
      The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
      Return Notice
      The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
      In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
      Shiping Mode
      Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
      Parts Availability
      Moore automated offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
      Expand All
      Collapse all

      Technical specifications for 330102-00-10-10-01-05

      • Manufacturer:
        Bently Nevada
      • Product Category:
        TSI System
      • Estimated shipping dimensions:
        113 x 1.5 x 2 cm
      • Weight:
        0.12 kg
      • Tariff Code:
        8537101190
      • Country of origin:
        USA
      • Place of shipment:
        Xiamen, Fujian, China
      • Unthreaded Length:
        0.0 in
      • Overall Case Length:
        1.0 in
      • Total Length:
        1.0 meter (3.3 feet)
      • Connector and Cable-Type:
        Miniature coaxial ClickLoc connector with connector protector, standard cable
      • Agency Approval:
        CSA, ATEX, IECEx Approvals
      • Probe Tip Material:
        Polyphenylene sulfide (PPS)
      • Probe Case Material:
        AISI 303 or 304 stainless steel (SST)
      • Operating and Storage Temperature:
        -52°C to +177°C (-62°F to +350°F)
      • Probe Relative Humidity:
        Less than a 3% change in Average Scale Factor (ASF) when tested in 93% humidity in accordance with IEC standard 68 2 3 for up to 56 days
      • Product Type:
        Proximity Probes
      • Category Series:
        3300 XL Series
      • Stock:
        50
      Ask for Quote

      Alternative Names

      330102 00 10 10 01 05 330I02-00-I0-I0-0I-05 33O1O2-OO-1O-1O-O1-O5 330102-00-10-10-01-00 330102-00-10-10-01-CN 330102-00-10-10-01-BR 330102-00-10-10-01-RU 330102-00-10-10-02-05 330102-00-10-10-11-05 330102-00-10-10-12-05 330102-00-10-05-01-05 330102-00-10-15-01-05 330102-00-10-50-01-05

      Information

      Overview Manuals General Info Ordering Information for Probes Calibrated System Loop Configuration

      Features:

      • 3300 XL 8 mm Proximity Probes
      • 3300 XL 8 mm Proximity Transducer System
      • 330102 3300 XL 8 mm Probe, 3/8-24 UNF thread, with armor
      The 3300 XL probe and extension cable also reflect improvements over previous designs. A patented TipLoc molding method provides a more robust bond between the probe tip and the probe body. The probe’s cable incorporates a patented CableLoc design that provides 330 N (75 lbf) pull strength to more securely attach the probe cable and probe tip.

      8 mm probes provide a thicker encapsulation of the probe coil in the molded PPS plastic probe tip. This results in a more rugged probe. The larger diameter of the probe body also provides a stronger, more robust case. We recommend that you use 8 mm probes when possible to provide optimal robustness against physical abuse.

      The 330102-00-10-10-01-05 Bently Nevada 3300 XL 8 mm Proximity Probes may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
      Bently Nevada 330102-00-10-10-01-05 3300 XL 8 mm Proximity Probes Manuals(Datasheets), Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
      • Model: 330102-00-10-10-01-05
      • Warranty: One-year warranty
      • Condition: Brand new, original, in stock
      • Product Family: 3300 XL 8 mm Proximity Transducer System
      3300 XL 8 mm Proximity Probes:
      330102 3300 XL 8 mm Probe, 3/8-24 UNF thread, with armor
      330101-Axx-Bxx-Cxx-Dxx-Exx

      A: Unthreaded Length
      Order in increments of 0.1 in.
      Length configurations:
      Maximum unthreaded length: 8.8 in.
      Minimum unthreaded length: 0.0 in.
      Example: 0 4 = 0.4 in.

      B: Overall Case Length
      Order in increments of 0.1 in.
      Standard thread configurations:
      Maximum case length: 9.6 in.
      Minimum case length: 0.8 in.
      Example: 2 4 = 2.4 in.

      C: Total Length
      05: 0.5 meter (1.6 feet)
      10: 1.0 meter (3.3 feet)
      15: 1.5 meter (4.9 feet)
      20: 2.0 meters (6.6 feet)
      30: 3.0 meters (9.8 feet)
      50: 5.0 meters (16.4 feet)
      90: 9.0 meters (29.5 feet)

      D: Connector and Cable-Type
      01: Miniature coaxial ClickLoc connector with connector protector, standard cable
      02 Miniature coaxial ClickLoc connector, standard cable
      11: Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable
      12: Miniature coaxial ClickLoc connector, FluidLoc cable

      E: Agency Approval Option
      00: Not required
      05: CSA, ATEX, IECEx Approvals
      To ensure a reliable 200 mV/mil (7.87 V/mm) linear scaling factor, this probe requires strict end-loop matching:
      9-meter configuration: Because this probe includes a 1.0-meter cable, an 8.0-meter extension cable (e.g., a 330130-080-00-05 standard cable) must be used for bridging to achieve the total length of 9.0 meters.
      Proximity sensor: The end-armored cable must be connected to a 9.0-meter calibrated proximity sensor. Using a 4.5-meter cable or a 5.0-meter proximity sensor will introduce impedance errors, affecting the accuracy of the mechanical protection display.

      Manuals

      Technical notes

      Bently Nevada 3300 XL 8mm Proximity Probe: The prefix code 330102 indicates that the probe uses a 3/8-24 UNF fully threaded housing (8 mm end diameter) with built-in stainless steel flexible armor; the suffix parameter 00-10-10-01-05 defines its 0.0-inch (fully threaded) unthreaded portion length (00), 1.0-inch (25.4 mm) housing length (10), 1.0-meter (3.3-foot) total probe cable length (10), and standard ClickLoc mini coaxial connector with connector protection sleeve (01), as well as joint certification from explosion protection organizations such as CSA, ATEX, and IECEx, which have multinational standards (05).

      Ask our team:

      Related Products

      Browsing history

      FAQ

      View All Faqs
      • What are the performance advantages of the Bently Nevada 330102-00-10-10-01-05, designed with an 8 mm probe structure and calibration sensor system?
        The 330102-00-10-10-01-05 exhibits excellent linearity, repeatability, and dynamic response characteristics, making it suitable for critical mechanical monitoring systems.
      • How does the Bently Nevada 330102-00-10-10-01-05 maintain measurement stability within its calibration operating range?
        The 330102-00-10-10-01-05 employs optimized electromagnetic field generation technology and a precision coil structure to ensure consistent displacement measurement accuracy.
      • Why is the system length configuration of the Bently Nevada 330102-00-10-10-01-05 crucial for maintaining sensor calibration accuracy?
        The Bently Nevada 330102-00-10-10-01-05 is part of a complementary sensor system that includes probes, extension cables, and a Proximitor sensor. All components work together to maintain calibration performance.
      • What commissioning parameters should engineers verify when deploying the Bently Nevada 330102-00-10-10-01-05 in a mechanical protection system?
        When installing the 330102-00-10-10-01-05, engineers should verify probe clearance, installation integrity, target material properties, cable routing, and calibration compatibility.
      • How does the Bently Nevada 330102-00-10-10-01-05 differ from traditional industrial proximity sensors?
        Unlike standard proximity switches, the 330102-00-10-10-01-05 is designed for high-precision displacement and vibration monitoring applications.
