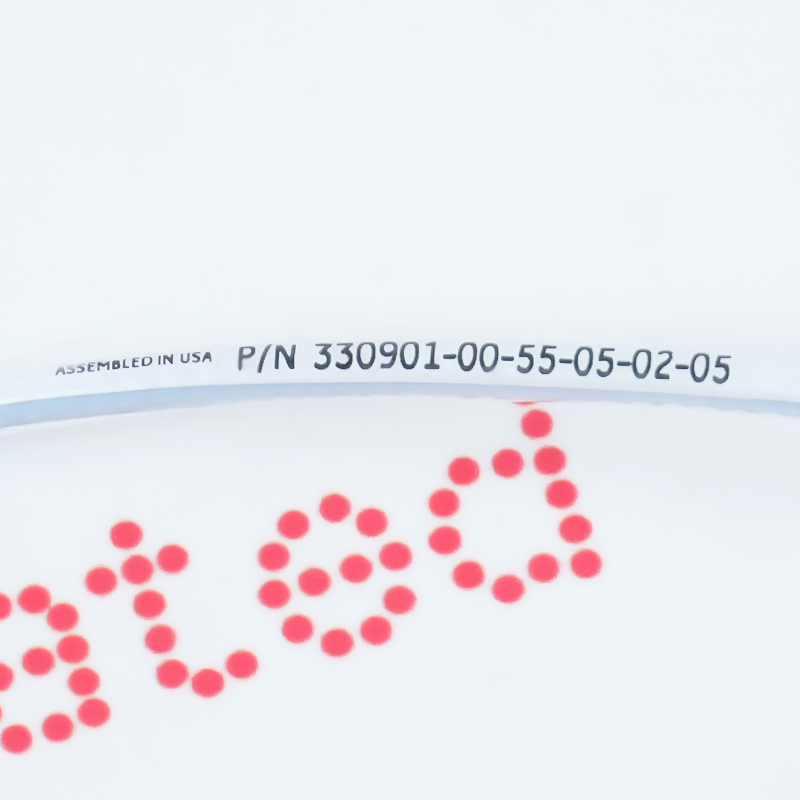

      Bently Nevada 330901-00-55-05-02-05
      Bently Nevada 330901-00-55-05-02-05
      · Product image is representative; revision or series may vary. Contact us to request a specific version.
      Get a Quote

      330901-00-55-05-02-05

      3300 XL NSv proximity probe
      In Stock
      Ships by Thursday, August 27
      Fast Shipping Available

      Product Information:

      330901-00-55-05-02-05 is a compact 3300 XL NSv proximity probe for non-contact measurement of shaft vibration and position on rotating machinery. The NSv system is intended for installations where a smaller probe tip and reduced mounting envelope are required.

      The complete order code specifies a 1/4-28 UNF threaded probe without armor, 0.0 inches of unthreaded length, a 5.5-inch case, a 0.5-meter standard cable, no connector protector, and selectable hazardous-area approvals.

      Use this probe only with the matched 3300 XL NSv extension cable and Proximitor Sensor for the selected total system length. The official system provides a nominal 7.87 V/mm scale factor over a 1.5 mm linear range for vibration, position, speed and Keyphasor measurements.

      Warranty Policy
      We provide 1-year warranty for all remaining parts.
      The warranty period is 1-year warranty from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
      Return Notice
      The warranty period is 1-year warranty from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
      In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
      Shipping Methods
      Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
      Parts Availability
      Moore Automated offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
      Expand All
      Collapse all

      Technical specifications for 330901-00-55-05-02-05

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Sensor
      • Spare Part Number:
        330901
      • Estimated shipping dimensions:
        14.0 x 0.6 x 50.0 cm
      • Weight:
        0.15 kg
      • Tariff Code:
        8537101190
      • Country of origin:
        USA
      • Place of shipment:
        Xiamen, Fujian, China
      • Manufacturer:
        Bently Nevada
      • Product family:
        3300 XL NSv Proximity Transducer System
      • Probe thread:
        1/4-28 UNF
      • Armor:
        No armor
      • Unthreaded length:
        0.0 in
      • Case length:
        5.5 in
      • Total probe length:
        0.5 m
      • Cable type:
        Standard cable
      • Connector protector:
        Not included
      • Approvals:
        Multiple approvals, code 05
      • Linear range:
        1.5 mm
      • Scale factor:
        7.87 V/mm
      • Frequency response:
        0 to 10 kHz
      • Official document:
        Baker Hughes 147385
      • Stock:
        49
      Ask for Quote

      Alternative Names

      330901-00-55-05-02-05 3309010055050205 330901 00 55 05 02 05 330901-00-14-10-02-00 330901-00-32-10-02-00 330901-05-55-05-11-05 330901-00-24-05-02-05 330901-00-15-05-02-00 330901-10-20-10-02-05 330901-00-40-10-02-05

      Information

      Overview Manuals Measurement Performance Ordering Configuration Installation Guidance

      Features:

      • 3300 XL NSv Proximity Probe
      • 1/4-28 UNF Thread
      • 5.5 in Probe Case
      • 0.5 m Standard Cable
      • Code 05 Hazardous-Area Approvals

      The Bently Nevada 330901-00-55-05-02-05 is a compact eddy-current proximity probe for non-contact measurement of conductive shaft surfaces. It supports machinery protection and condition-monitoring measurements in tight mounting locations.

      This order code defines an unarmored 1/4-28 UNF probe with a 5.5-inch case, 0.5-meter standard cable, no connector protector and multiple approvals. Match it with the correct NSv extension cable and Proximitor Sensor before installation.

      The 330901-00-55-05-02-05 Bently Nevada 3300 xl nsv proximity probe may be supplied and supported by Moore Automated according to the stated OEM lifecycle and confirmed stock condition.
      Bently Nevada 330901-00-55-05-02-05 3300 XL NSv proximity probe Manuals(Datasheets), Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

      Measurement Performance:

      • Nominal 7.87 V/mm scale factor
      • 1.5 mm linear measuring range
      • Non-contact eddy-current measurement
      • Static position and dynamic vibration output

      System performance depends on the matched NSv probe, extension cable, Proximitor Sensor, target material and total electrical length.

      Ordering Configuration:

      • 330901: 1/4-28 UNF probe without armor
      • 00: 0.0 in unthreaded length
      • 55: 5.5 in case length
      • 05: 0.5 m total probe length
      • 02: standard cable without protector
      • 05: multiple approvals

      Retain the complete suffix when ordering because each position changes the mechanical, cable or approval configuration.

      Installation Guidance:

      • Use the specified 1/4-28 UNF mounting hole
      • Match all NSv system components
      • Observe target and side-view clearances
      • Seal the connector against contamination
      • Verify hazardous-area drawings

      Set the mechanical gap and confirm the electrical output only after the probe, extension cable and Proximitor Sensor have been assembled as the specified NSv system.

      Technical notes

      The 330901-00-55-05-02-05 is a 3300 XL NSv 1/4-28 UNF proximity probe without armor, with a 5.5-inch case, 0.5-meter standard cable, no connector protector and code 05 approvals. It must operate as a matched NSv system with the correct extension cable and Proximitor Sensor.

      • Product Lifecycle Stage

        Active/Available from OEM

        Baker Hughes continues to publish the 3300 XL NSv Proximity Transducer System datasheet and ordering information. Moore Automated supplies high-quality Bently Nevada replacement probes, matched extension cables and spare parts. Verified configurations and rapid supply solutions help customers reduce machinery downtime.

      Ask our team:

      Related Products

      Browsing history

      FAQ

      View All Faqs
      • How is 330901-00-55-05-02-05 identified?
        Identify this product by the complete manufacturer order number 330901-00-55-05-02-05. Each code position defines the specific 3300 XL NSv proximity probe configuration, so the full suffix must be retained when requesting a replacement.
      • What is compatible with 330901-00-55-05-02-05?
        It is compatible with the 3300 XL NSv extension cable and NSv Proximitor Sensor configured for the same total system length. Do not mix it with 3300 XL 8 mm, 11 mm, 25 mm or 50 mm system components.
      • Where is 330901-00-55-05-02-05 applied?
        It is used for radial vibration, axial position, differential expansion, speed and Keyphasor measurements where compact probe mounting is required on fluid-film bearing machines.
      • What should be checked before installing 330901-00-55-05-02-05?
        Verify the 1/4-28 UNF mounting hole, 5.5-inch case length, target material, minimum target size, 0.5-meter probe lead, connector sealing, system-length matching and hazardous-area drawing before setting the probe gap.
      • Is 330901-00-55-05-02-05 in stock?
        Stock is confirmed at the time of quotation. Moore Automated verifies the exact order number, supplied accessories, physical condition, and dispatch schedule before shipment.
      • What warranty is supplied with 330901-00-55-05-02-05?
        Warranty terms depend on the supplied condition and quotation. Moore Automated provides the warranty stated in the sales confirmation for the exact 330901-00-55-05-02-05 delivered.
      • How is 330901-00-55-05-02-05 shipped?
        The item is prepared for shipment from Xiamen, Fujian, China. Standard handling time is three days, with fast shipping available after stock and configuration verification.
