Features:
- 3300 NSv Reverse Mount Probe
- 330907-05-30 M10X1 threads
- 3300 XL NSv Proximity Transducer System
The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements.
The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in).

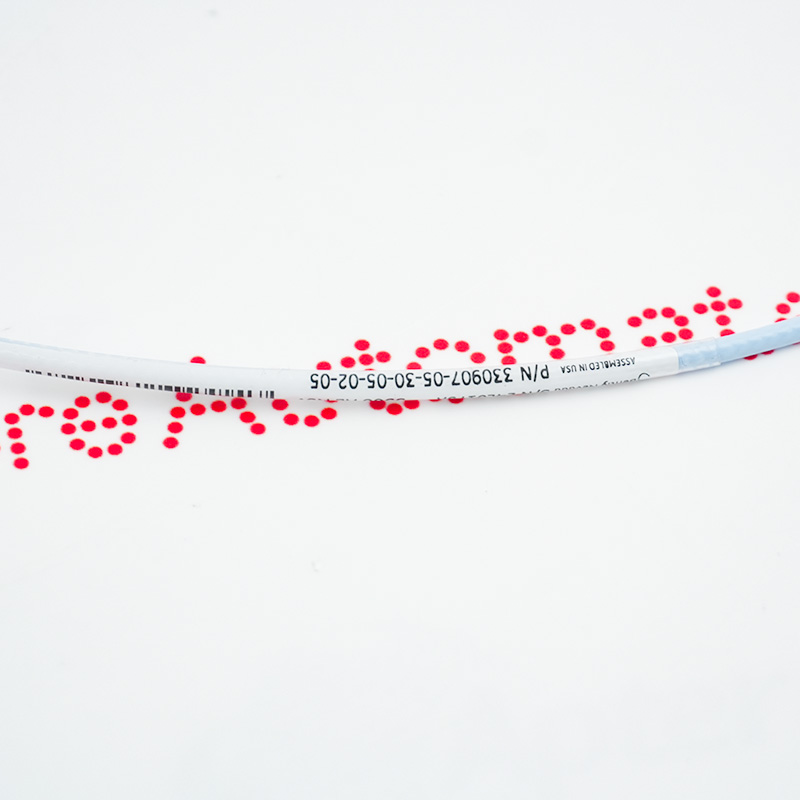

The 330907-05-30-05-02-05 Bently Nevada 3300 NSv Reverse Mount Probe may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330907-05-30-05-02-05 3300 NSv Reverse Mount Probe Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 3300 XL NSv sensor system has an average scale factor of 7.87 V/mm (200 mV/mil), which is the most commonly used output value for eddy current sensors. Its enhanced side-view and small-target characteristics result in a shorter linear range than the Bently Nevada 3300 XL series 5 mm and 8 mm sensor systems. Its 1.5 mm (60 mil) linear range surpasses that of the 3000 series 190 sensor system.
The 3300 XL NSv (Narrow Side-Look) system is primarily used in situations where standard sensors cannot be installed due to space constraints or target size limitations:
Centrifugal Air Compressors: The most common application, used to monitor vibration and shaft position within compact compressor housings.
Small Process Gas and Refrigeration Compressors: Suitable for machines with small shaft diameters or narrow side-look clearances.
Small Target Monitoring: Designed for measuring radial vibration of shafts less than 51 mm (2 inches) in diameter and axial position of planar targets less than 15 mm (0.6 inches) in diameter.
Hydrodynamic Bearing Machinery: Used for radial position, speed, zero speed, and key phase (phase reference) measurements.
