      Bently Nevada 330980-71-05
      Bently Nevada 330980-71-05
      Bently Nevada 330980-71-05
      Bently Nevada 330980-71-05
      Bently Nevada 330980-71-05
      Bently Nevada 330980-71-05

      • ISO 9001:2015 Certified

        Our quality management system covers sourcing,testing and dispatch

      • View Our Success Stories

        Real stories from real customer orders
      In Stock
      Ships by Friday, November 6
      Fast Shipping Available

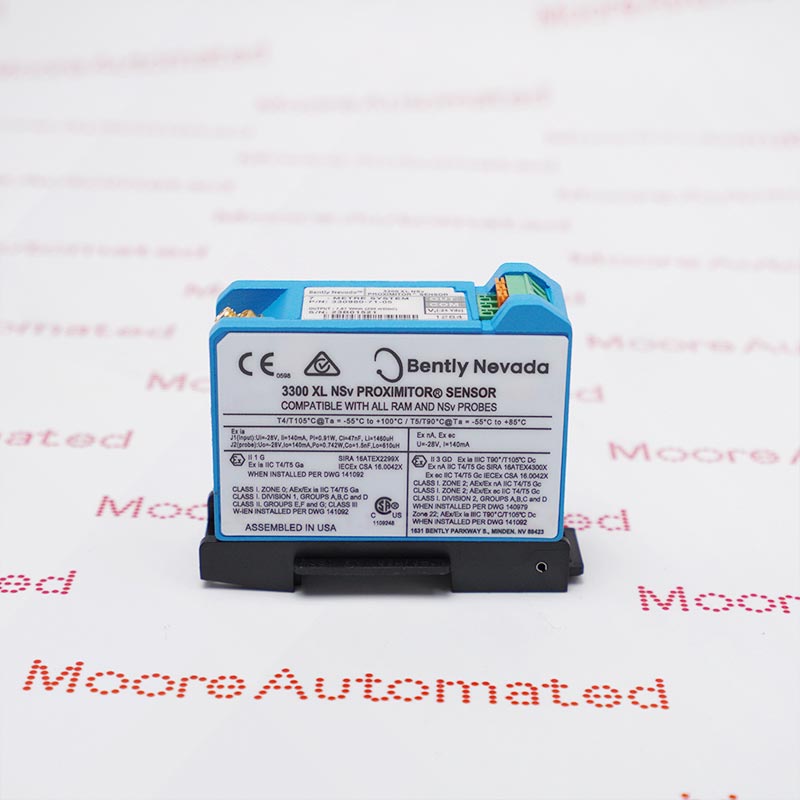

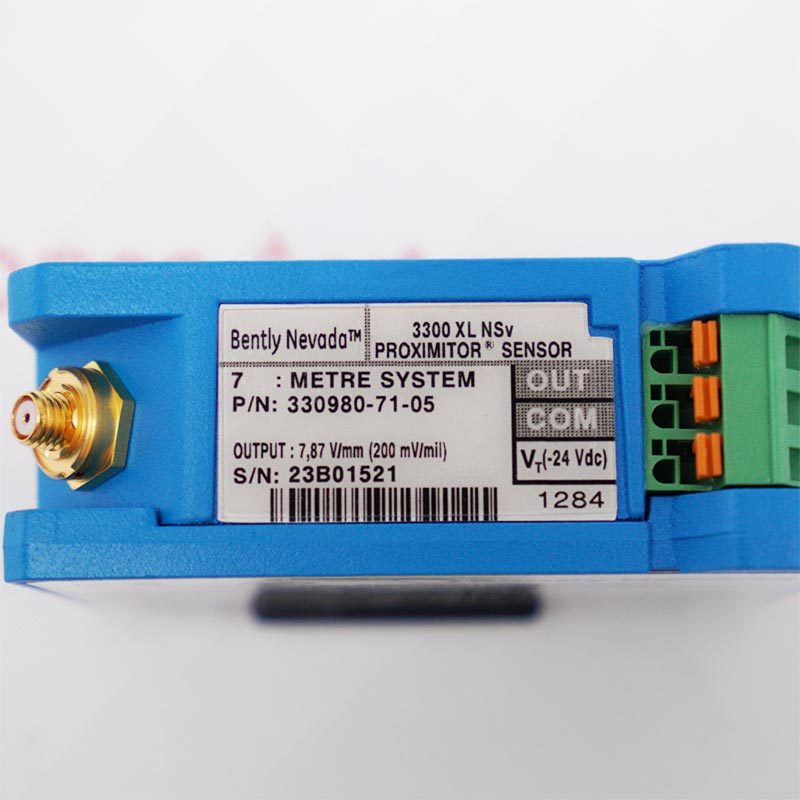

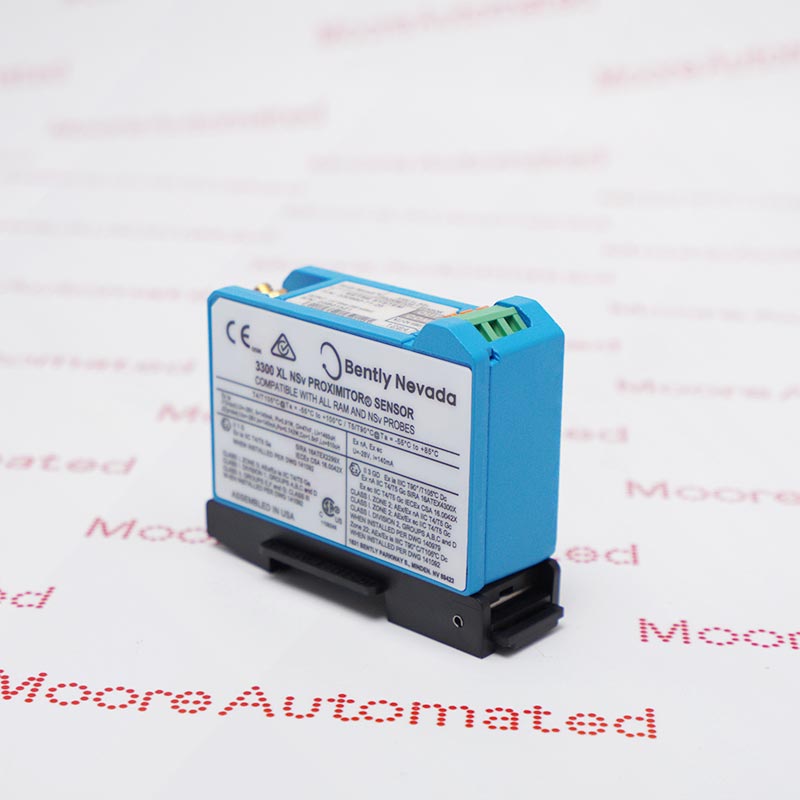

      3300 XL NSv Proximitor sensor

      330980-71-05

      Product Information:


      Bently Nevada 330980-71-05 is a DIN-mount 3300 XL NSv Proximitor sensor for a 7.0 metre transducer system. It conditions the proximity-probe signal for non-contact measurement of shaft position and vibration in compact machinery installations.


      Product image is representative; revision or series may vary. Contact us to request a specific version.
      Get a Quote
      • One-year warranty
      • Global shipping
      • Exact-model verification
      WhatsApp: +86 180 2077 6792 Email parts team
      01


      Model Verified

      Model, revision and nameplate reviewed
      02


      Email confirmation

      You will get an email confirming that we have received your enquiry
      03


      Dedicated Account Manager

      One of our team will be in touch to confirm your part(s) specification and condition
      04


      Your quote

      You will receive a comprehensive quote tailored to your specific needs
        • PRODUCT OVERVIEW

          What is this product?

          The Bently Nevada 330980-71-05 is a 3300 XL NSv Proximitor sensor designed for use with the 3300 XL NSv proximity transducer system. According to the manufacturer's specifications, the NSv system is suitable for machinery with limited physical installation space—such as applications where standard 5 mm or 8 mm proximity transducer systems cannot be used due to counterbores or insufficient side or rear clearance.

          Source boundary

          Exact-model hardware values shown here are qualified from public technical cross-references and require order-stage confirmation.
        • APPLICATIONS

          Where it may be used

          Applications describe the product family and are not an automatic compatibility or functional-safety approval.

          Air Compressors

          Used for vibration and position monitoring in centrifugal air compressors where restricted installation space or small shaft targets make conventional probes difficult to install.

          Refrigeration Systems

          Applied to refrigeration compressors requiring compact proximity measurement solutions for rotating machinery monitoring.

          Process Machinery

          Suitable for process gas compressors and similar rotating equipment where counterbore, side-view, or rear-view access is limited.

          Power Equipment

          Used on turbines and other critical rotating machinery for non-contact vibration or position monitoring where compact installation is required.
      Technical specifications for

      330980-71-05

      0 TECHNICAL PARAMETERS
      • Manufacturer:
        Bently Nevada
      • Product Category:
        Sensor
      • System family:
        3300 XL NSv Proximity Transducer System
      • Component type:
        Proximitor sensor
      • System length:
        7.0 m
      • Mounting:
        DIN mount
      • Approvals option:
        Multiple approvals
      • Average scale factor:
        7.87 V/mm (200 mV/mil)
      • Linear range:
        1.5 mm (60 mil)
      • Recommended gap:
        1.0 mm
      • Supply voltage:
        -17.5 to -26 Vdc
      • Maximum current:
        12 mA
      • Output resistance:
        50 ohm
      • Frequency response:
        0 to 10 kHz
      • Operating temperature:
        -52 to +100 °C
      • Target material:
        AISI 4140 steel
      • Stock Availability:
        11
      Ask for Quote
      WHAT HAPPENS NEXT?

      From enquiry to delivery

      Six clear steps show what information is required and what the written quotation will contain.
      • 01

        Find the product

        Search the part number or send an inquiry for obsolete, discontinued or hard-to-find parts.
      • 02

        Provide the details

        Share the exact part number, quantity, condition, revision, destination and any required certificates or photos.
      • 03

        Review the quotation

        Receive price, currency, condition, availability, warranty, lead time, shipping terms and quotation validity in writing.
      • 04

        Confirm the order

        Accept the quotation in writing and complete the required payment before shipment.
      • 05

        Pay by bank transfer

        Pay the full invoiced amount by bank wire in RMB/CNY, GBP, EUR or USD using the official invoice details.
      • 06

        Verify and dispatch

        The item receives a pre-shipment inspection and suitable protective packaging. Functional testing is performed only where appropriate equipment and procedures are available for the specific item. We confirm the applicable inspection scope and provide tracking after dispatch.
      Request a Verified Quote
      BUYER INFORMATION

      Product condition level information

      Commercial details are confirmed in writing before payment.
      • 01

        Factory Sealed

        Unused product with the original factory seal intact; packaging age or storage marks may still be present.

        view
      • 02

        Original Pack

        Unused product in original manufacturer packaging that was not originally factory sealed.

        view
      • 03

        Factory New

        New and current product sourced through the manufacturer or authorized supply channel when expressly confirmed in the quotation.

        view

      Alternative Names

      330980-71 3309807105 330980 71 05

      Information

      Overview Manuals Signal Performance Configuration Notes Application Guidance

      Features:

      • 3300 XL NSv Proximity Transducer System
      • 7.0 m DIN-mount Proximitor sensor
      • Multiple-approvals ordering option
      The 330980-71-05 converts the NSv probe signal into a voltage proportional to probe-tip clearance for static and dynamic measurements.

      System performance depends on matching the Proximitor sensor, probe, extension cable, total electrical length, target material, and initial gap.

      The 330980-71-05 Bently Nevada Proximitor sensor is documented in the current 3300 XL NSv product datasheet and can be supplied and supported by Moore Automated.
      Bently Nevada 330980-71-05 3300 XL NSv Proximitor Sensor Manuals(Datasheets), Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

      Signal Performance

      Nominal sensitivity is 7.87 V/mm over a 1.5 mm linear range, with a documented frequency response from 0 to 10 kHz.

      Configuration Notes

      Order code -71 specifies a 7.0 m system and DIN mount; -05 specifies the multiple-approvals option. Match all system components before commissioning.

      Application Guidance

      Verify target material, probe gap, cable routing, connector protection, power supply, and monitor scaling before placing the measurement channel in service.

      Technical notes

      The 330980-71-05 is a 7.0 m DIN-mount 3300 XL NSv Proximitor sensor with a nominal 7.87 V/mm scale factor, 1.5 mm linear range, 0 to 10 kHz response, 50 ohm output resistance, and -17.5 to -26 Vdc supply requirement. Correct probe, cable, target material, gap, and connector protection are essential to preserve the documented electrical performance.

      System Configuration

      The 330980-71-05 is a 3300 XL NSv Proximitor Sensor configured for a 7.0 m (23 ft) total system length with DIN mounting, forming a complete proximity transducer system with a compatible NSv probe and extension cable.

      Measurement Capability

      The NSv system is designed for radial vibration, radial position, axial/thrust position, tachometer or zero-speed, and Keyphasor phase-reference measurements, particularly where conventional 5 mm or 8 mm systems cannot be installed because of limited counterbore, side-view, or rear-view clearance.

      Customs & shipping dimensions / weight

      • Packed shipping dimensions
        Confirmed after final packing
        Exact product dimensions are not stated in the reviewed model-specific source.
      • Packed shipping weight
        Confirmed after final packing
        AExact product net weight is not stated in the reviewed model-specific source.
      • HS / customs code
        HS Code 8537101190
        Verify the applicable classification for the destination before shipment.
      • Country of origin
        USA
        Verify from the item nameplate or COO.
      • Ships from
        Xiamen, Fujian, China
        Dispatch location is confirmed in the written quotation.
      • Customs documents
        Confirmed for the destination
        Available document scope is stated in the written quotation.
      PRODUCT & ORDER FAQS

      Questions buyers ask about 330980-71-05

      • How is 330980-71-05 identified?

        It is the 3300 XL NSv Proximitor sensor ordered for a 7.0 m system, DIN mounting, and the -05 multiple-approvals option.

      • Which components are compatible with 330980-71-05?

        Use the official 3300 XL NSv probe and extension cable whose combined electrical length matches the 7.0 m system.

      • Where is this Proximitor sensor applied?

        It is used for non-contact shaft displacement, radial vibration, axial position, speed, and Keyphasor-type measurements where the NSv system is specified.

      • What must be checked before installation?

        Confirm system length, probe and cable compatibility, target material, mounting, connector protection, supply voltage, and initial gap.

      • Can Moore Automated confirm stock for 330980-71-05?

        Yes. Stock and the exact approval configuration can be confirmed against the requested complete ordering code.

      • What warranty support is available?

        Moore Automated supplies the confirmed product with warranty terms stated in the quotation and supports configuration verification before shipment.

      • How is 330980-71-05 shipped?

        It is prepared for dispatch from Xiamen, Fujian, China, with fast-shipping service available for confirmed stock.
