Features:
- Spare 16-Channel Relay Control Module
- 3500/33 16-Channel Relay Module
- Full-height module that provides 16 relay outputs

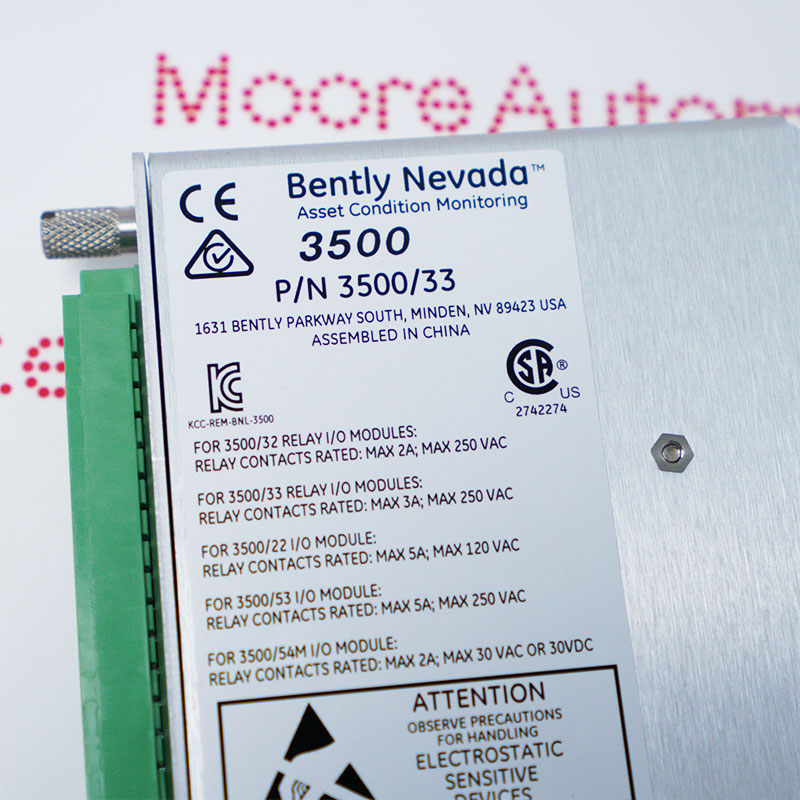

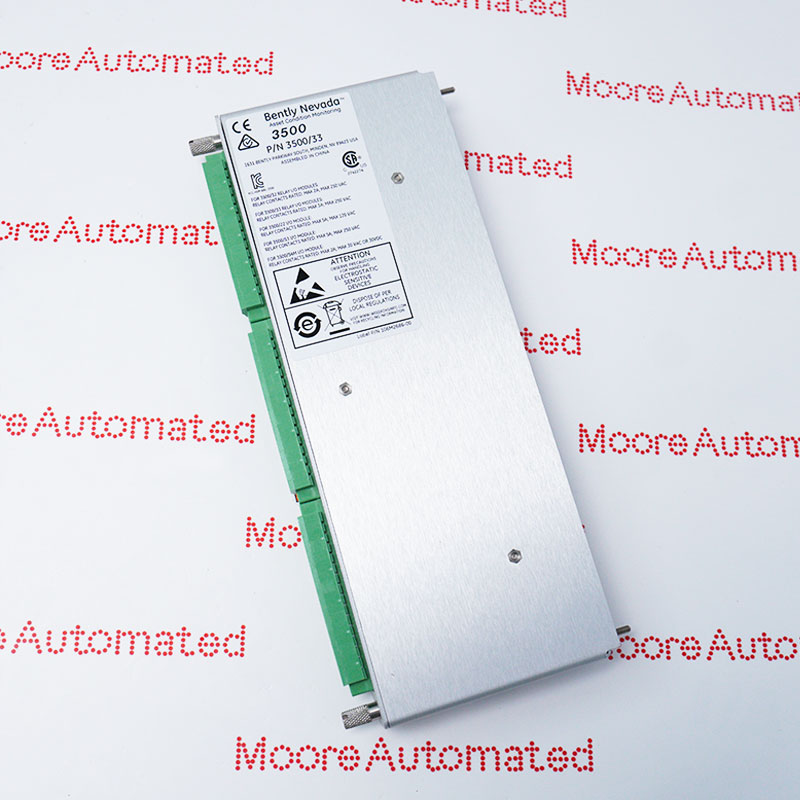

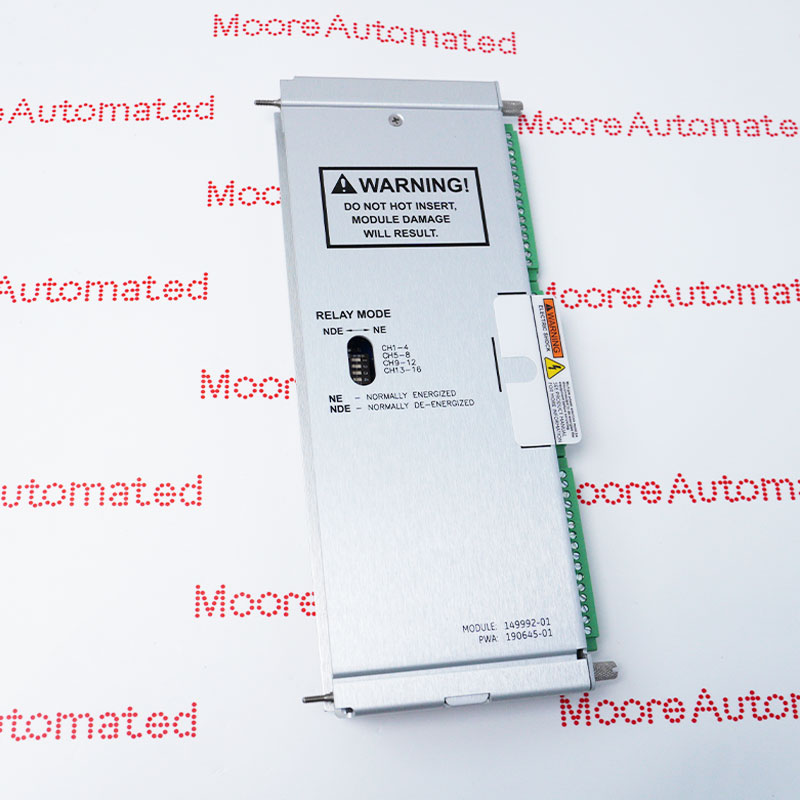

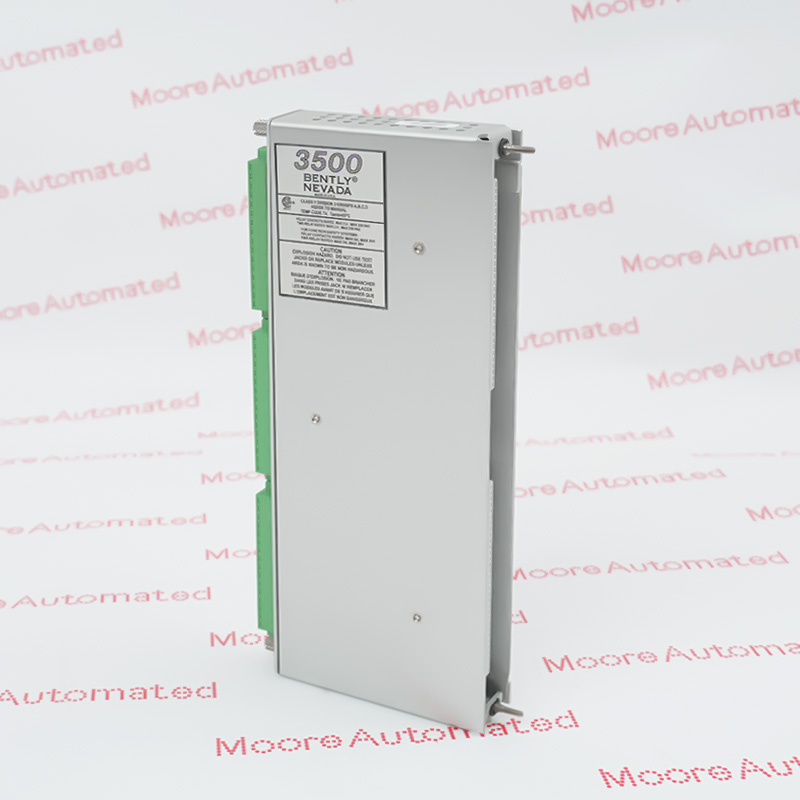

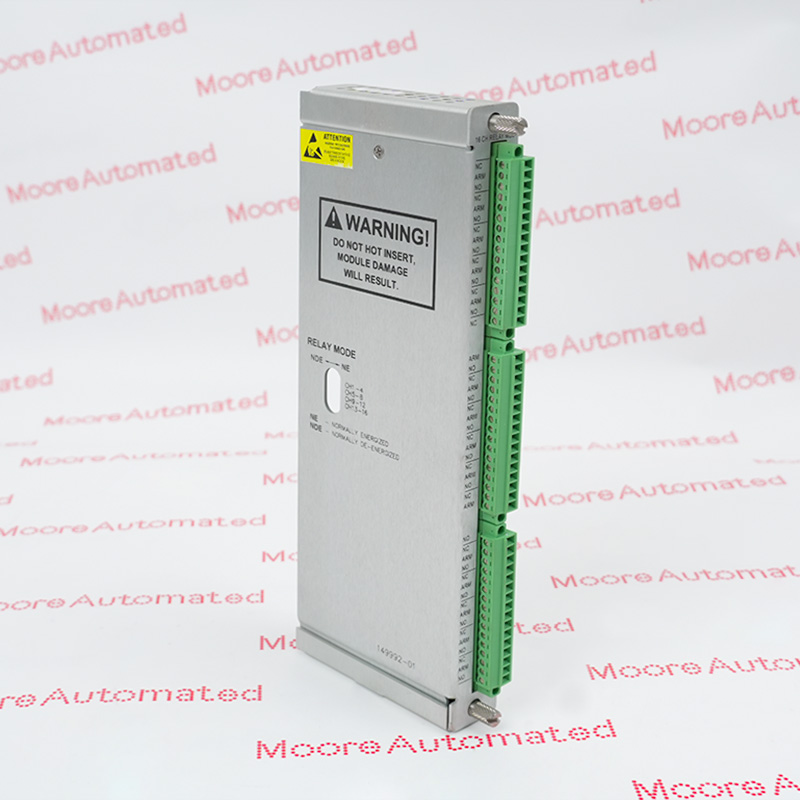

The Bently Nevada 3500/33 16-Channel Relay Module is a full-height module that provides 16 relay outputs. You can place any number of 16-channel relay modules in any of the slots to the right of the Transient Data Interface (TDI) Module.
Each output of the 3500/33 16-Channel Relay Module can be independently programmed to perform voting logic. Each relay of the module includes Alarm Drive Logic.

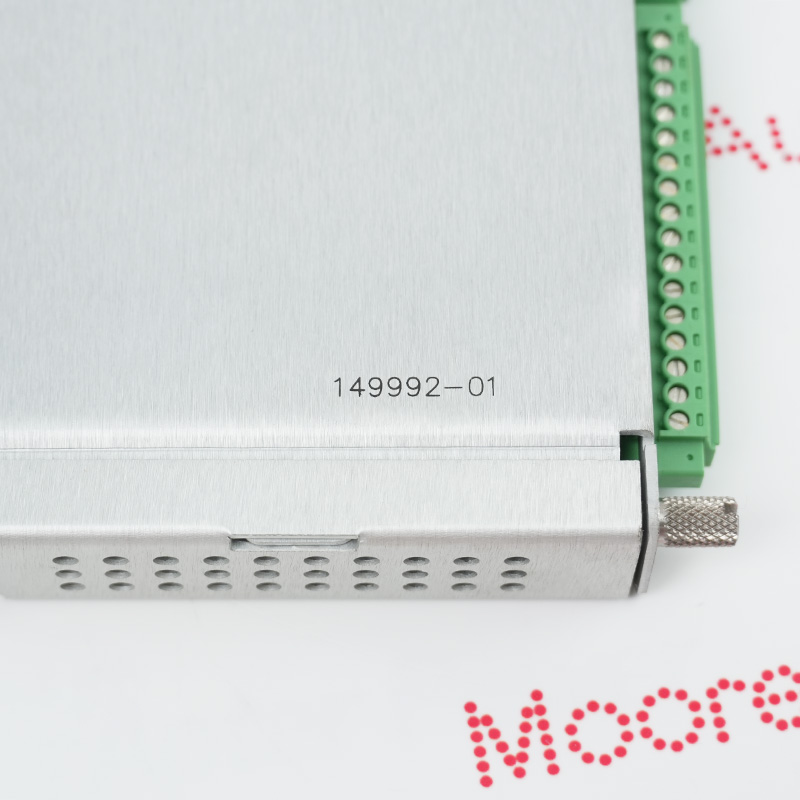

The 149992-01 Bently Nevada 16-Channel Relay Output Module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 149992-01 16-Channel Relay Output Module Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Programming for the Alarm Drive Logic uses AND and OR logic and may use the following:
- Alarming inputs (alert and danger statuses)
- Not-OK
- Individual Measured Variables from any monitor channel or any combination of monitor channels in the rack
You can program the Alarm Drive using the 3500 Rack Configuration Software.
1.The 3500/33 16-Channel Relay Module requires the 3500 Rack Config, version 3.3 or later.
2.The 3500/33 requires the 3500 Data Acquisition Software, version 2.40 or later.
3.The 3500/33 16-Channel Relay Module requires the 3500 Data Display Software, version 1.40 or later.
4.When ordered with the multiple approvals option (-02), the 3500 monitor is certified to Zone 2 standards, including ATEX and North American zones.
5.The North American Division 2 standards associated with the CSA-only approvals option (-01) have been de-rated to 30 Vrms to comply with 61010-1 type test requirements.
