Features:
- The -01 option selects a 0° mounting orientation with ±2.5° tolerance and a typical 4.5-1000 Hz response for the moving-coil velocity element.
- The -05 and -10 code positions specify a top terminal block without cable and a circular M10 x 1 mounting stud, so wiring and mounting hardware must be planned separately.
- A nominal 20 mV/mm/s sensitivity, 1.25 kΩ coil resistance and 10 kΩ calibration load define the electrical interface that must match the monitoring channel.

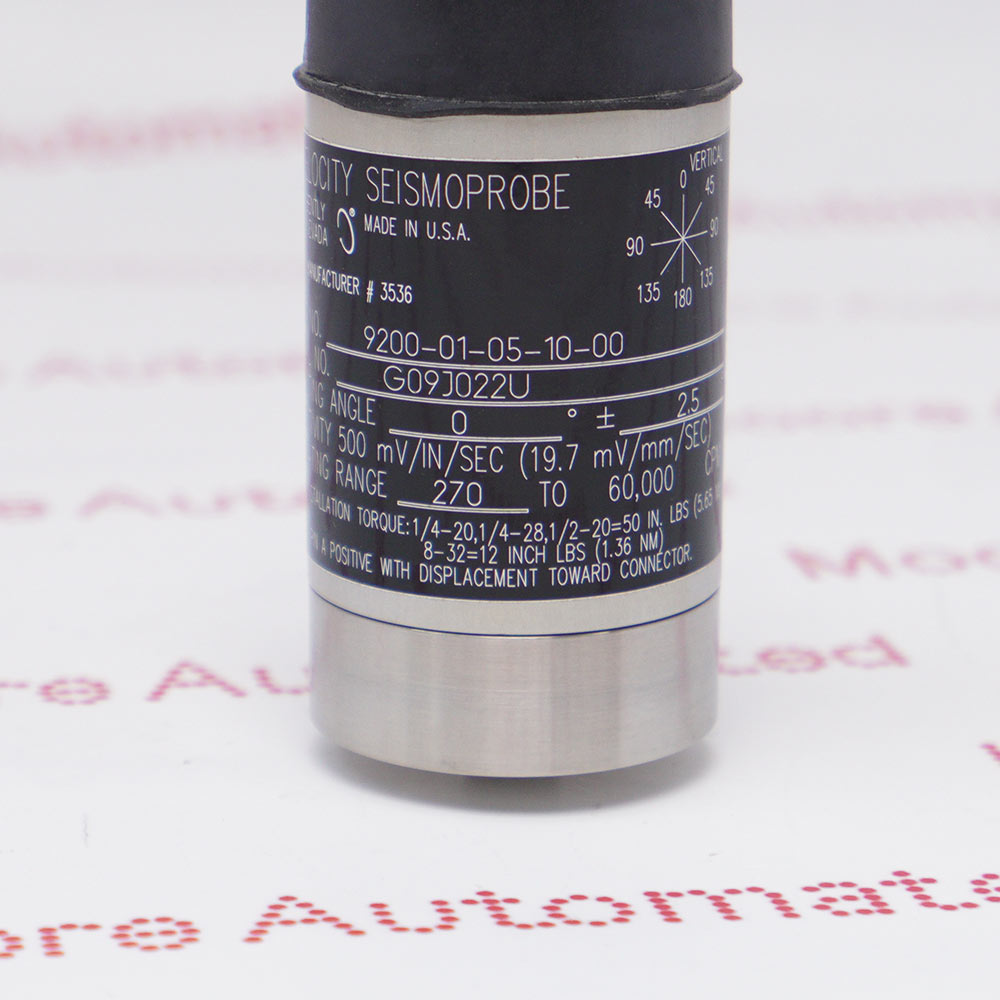

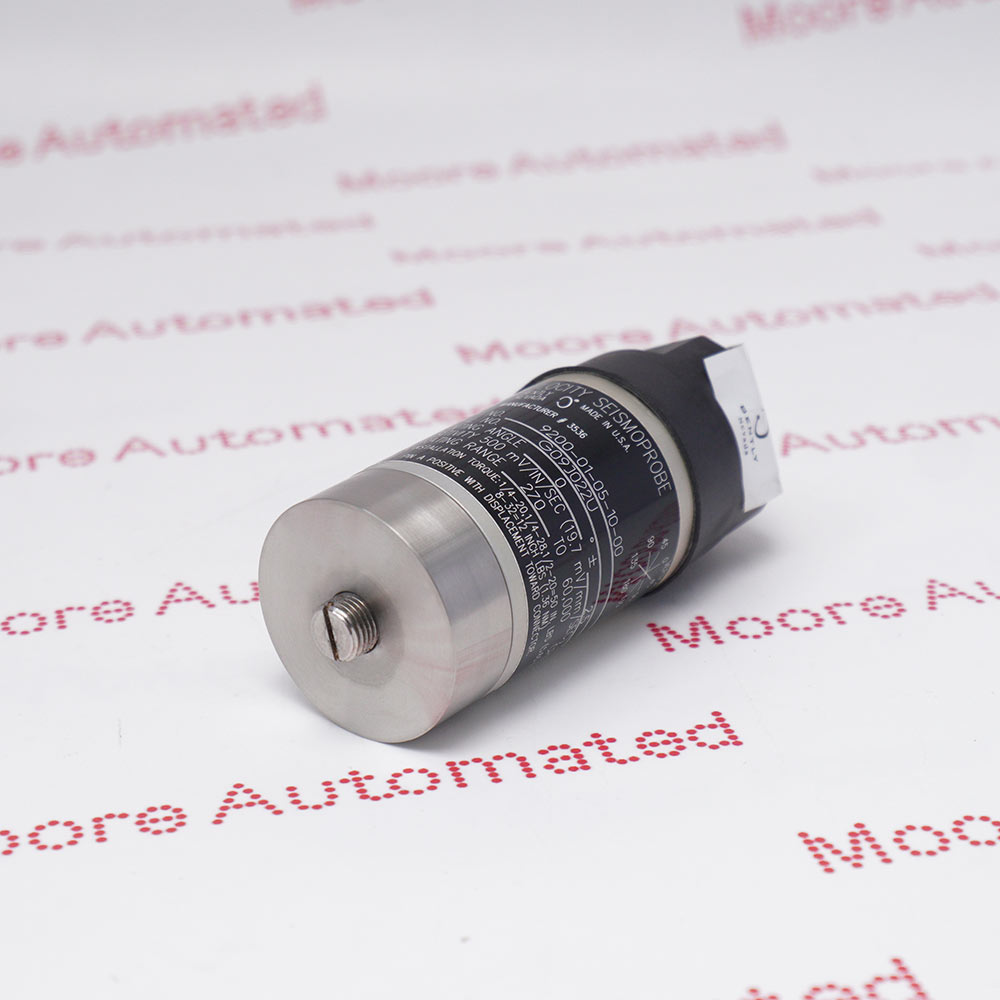

9200-01-05-10-00 is a Bently Nevada 9200 Seismoprobe two-wire moving-coil velocity transducer. Its ordering code selects a 0° mounting angle with ±2.5° tolerance, a top-mounted terminal block without supplied cable, a circular M10 x 1 mounting stud and no approval option. The transducer has a nominal sensitivity of 20 mV/mm/s, equivalent to 500 mV/in/s, and the selected -01 frequency option provides a typical 4.5 to 1000 Hz response. Calibration is specified into a 10 kΩ load. The moving-coil assembly has a documented 1.25 kΩ resistance and approximately 125 mH inductance. Dynamic limits include 2.54 mm peak-to-peak displacement and 25 mm/s velocity. The sensor operates from -29 to 121 °C and is intended for direct machinery-casing velocity measurement when its mounting orientation, stud, cable circuit and monitor input are correctly matched.
Bently Nevada 9200 Two-Wire Transducer Datasheet 141626. Ordering-code values refer specifically to 9200-01-05-10-00.
The Bently Nevada 9200-01-05-10-00 is supported by Moore Automated for exact-item replacement and spare-part enquiries.
Bently Nevada 9200-01-05-10-00 Two-wire velocity transducer manual(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Read all four option fields: -01 is the 0° frequency/orientation choice, -05 the top terminal block without cable, -10 the M10 x 1 stud and -00 no approvals. A partial 9200 number is insufficient.
Install the -01 sensor at the documented 0° orientation within ±2.5°. Prepare a flat, rigid mounting surface and use the specified M10 x 1 stud without imposing cable strain.
Match the 20 mV/mm/s sensitivity, 1.25 kΩ coil resistance and 10 kΩ calibration-load basis to the receiving monitor. Route the two-wire connection according to the manufacturer grounding guidance.
