Features:
- General Electric industrial automation component
- Designed for Mark VIe discrete I/O terminal board functions
- Supports maintenance and system replacement planning
Functional Overview:

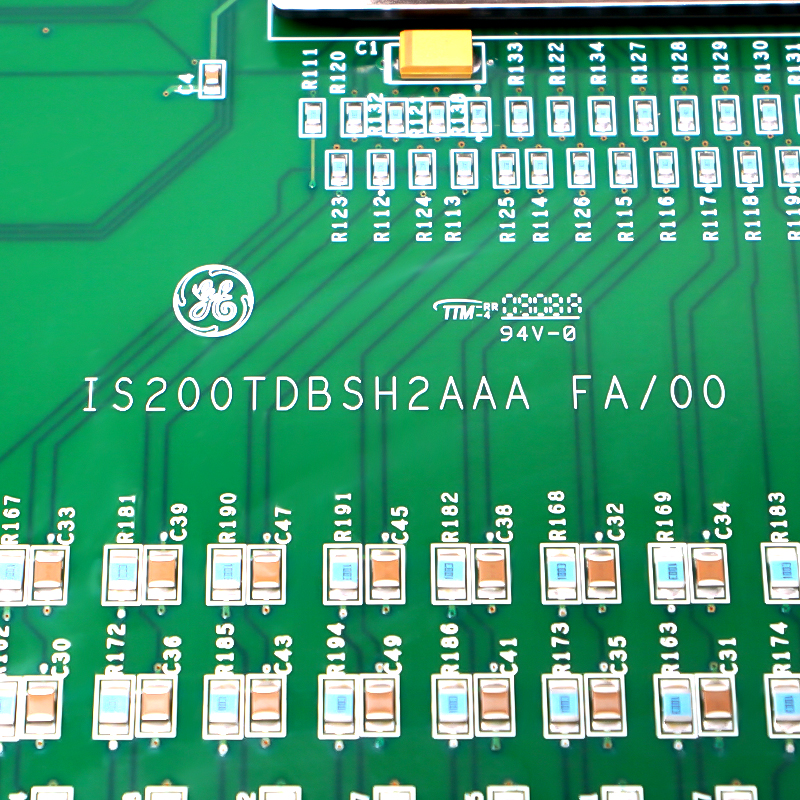

The IS200TDBSH2A IS200TDBSH2AAA is intended for use in its applicable General Electric platform. Match the complete identifier and hardware revision before installation.
Important Notice: Confirm the full part number, interface, system revision, and engineering compatibility before ordering.
GE IS200TDBSH2A IS200TDBSH2AAA Mark VIe Discrete I/O Terminal Board Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Operational Uses
Typical uses include system maintenance, legacy equipment replacement, retrofit projects, machine or process control, and restoration of installed automation functions. Apply the product only within its documented series configuration.
Technical Characteristics
- System family: Mark VIe
- Compatible I/O pack: IS220PDIOH1A/B
- Contact wetting: 32 VDC
- Ambient range: -30 to +65 °C
- Reference dimensions: 33 x 18 x 4 cm
Configuration Guidance
Match the IS200TDBSH2A IS200TDBSH2AAA identifier, connectors, supply conditions, signal type, firmware or hardware revision, and system configuration. Follow manufacturer installation guidance and standard ESD precautions during handling and commissioning.
