Features:

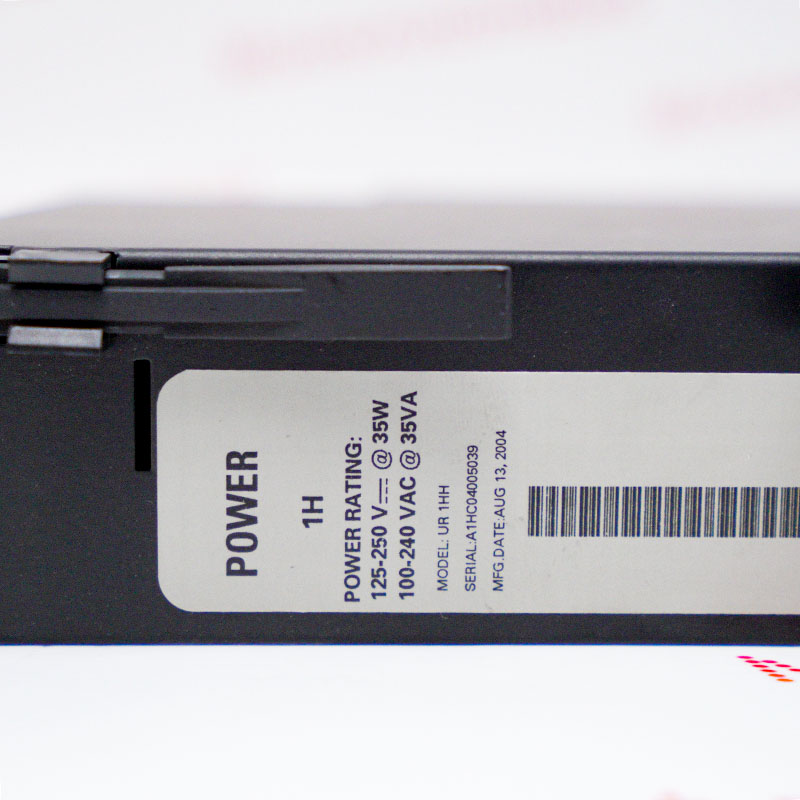

- UR Universal Relay Series Power Supply Module
- Designed for installation in the Universal Relays series
- UR devices support power modules for both high voltage (HI) and low voltage (LO) ranges
Universal Relays (UR) is a leading line of protection and control products built on a common modular platform. All UR products offer high-performance protection, scalable I/O options, integrated monitoring and metering, high-speed communication, and robust programming and configuration capabilities. UR lays the foundation for simplified power management and critical asset protection, and can be used as standalone devices or integrated into overall power automation systems.
UR is managed and programmed via EnerVista Launchpad. Each relay comes with this powerful software package, which not only programs the relay's setpoints but also provides setpoint file management, automatic access to the latest firmware/documentation, and an overview of the substation automation system.
The UR1HH GENERAL ELECTRIC Power Supply Module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
GENERAL ELECTRIC UR1HH Power Supply Module info(manual), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The UR is available in various configurations and can be equipped with either a 19-inch rack-mount horizontal unit or a smaller (¾) vertical unit. The UR consists of the following modules: power supply, CPU, CT/VT inputs, digital inputs/outputs, sensor inputs/outputs, inter-relay communication, communication switches, and IEC process bus.
- Modular Design: As part of the UR series (e.g., G60, B30, C30, T35), this module supports hot-swapping and can be easily replaced via a hinged panel with relays.
- Redundant Design: UR chassis typically support dual power supply modules. If using two modules, it is strongly recommended to use products of the same generation (e.g., two UR1HH modules) for optimal performance.
- Product Lifecycle: The UR1HH is largely discontinued/obsolete. It has been replaced by newer modules (e.g., UR-SH or UR-RH) that offer a wider voltage range (up to 400VDC).
