      General Electric IC755CSW07CDACA-CG
      General Electric IC755CSW07CDACA-CG
      General Electric IC755CSW07CDACA-CG
      General Electric IC755CSW07CDACA-CG
      General Electric IC755CSW07CDACA-CG
      General Electric IC755CSW07CDACA-CG

      • ISO 9001:2015 Certified

        Our quality management system covers sourcing,testing and dispatch

      • View Our Success Stories

        Real stories from real customer orders
      In Stock

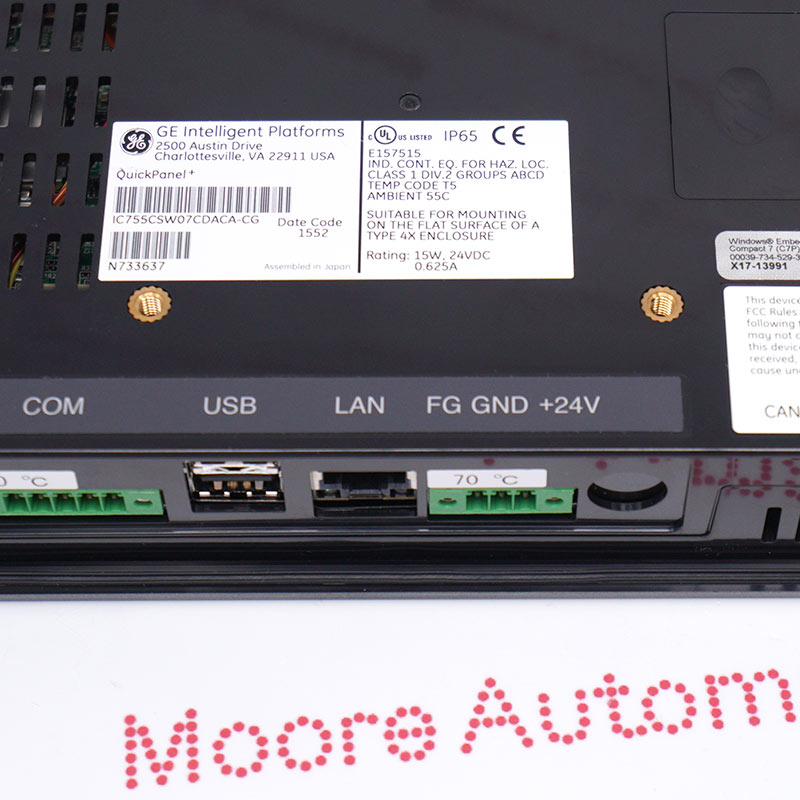

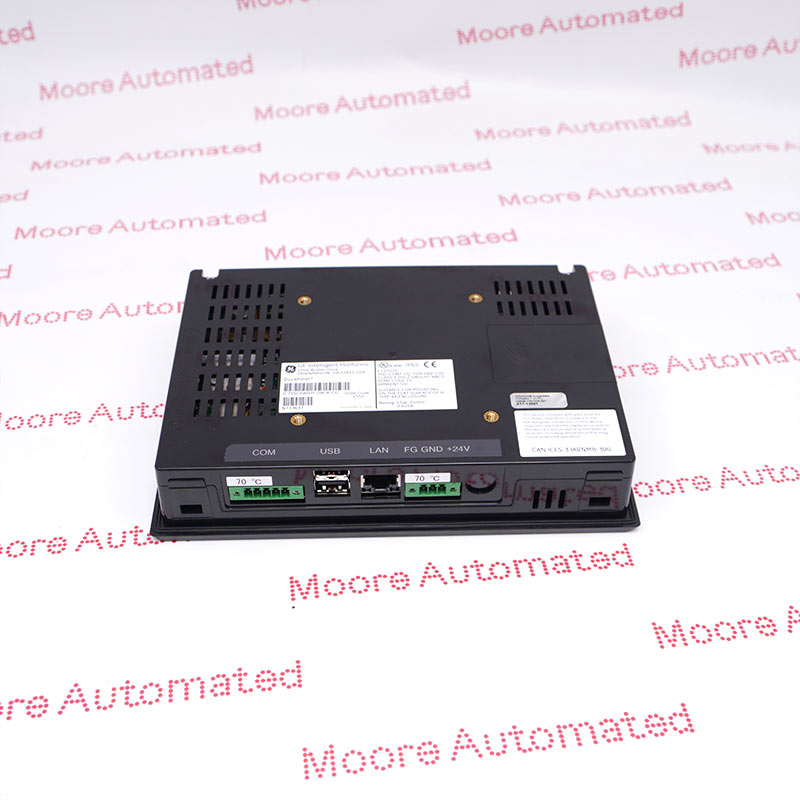

      QuickPanel+ View <(>&<)> Control, 7" Color TFT Widescreen with Multi-touch Projected Capacitive Screen, GE Monogram Bezel, 24 VDC Powered

      IC755CSW07CDACA-CG

      Spare Part Number

      PNIC755CSW07CDACA

      Product Information:

      7-inch QuickPanel+ operator interface device
       with a wide and vivid multi-touch screen
      A Multi-Functional Tool
      Cutting-edge Connectivity
      7" Color TFT Widescreen
       Multi-touch Projected Capacitive Screen
      Product image is representative; revision or series may vary. Contact us to request a specific version.
      Get a Quote
      • One-year warranty
      • Global shipping
      • Exact-model verification
      WhatsApp: +86 180 2077 6792 Email parts team
      01


      Model Verified

      Model, revision and nameplate reviewed
      02


      Email confirmation

      You will get an email confirming that we have received your enquiry
      03


      Dedicated Account Manager

      One of our team will be in touch to confirm your part(s) specification and condition
      04


      Your quote

      You will receive a comprehensive quote tailored to your specific needs
      Technical specifications for

      IC755CSW07CDACA-CG

      0 TECHNICAL PARAMETERS
      • Manufacturer:
        General Electric
      • Product Category:
        HMIs and Displays
      • Spare Part Number:
        IC755CSW07CDACA
      • Estimated shipping dimensions:
        19.2x13.7x3.6cm
      • Weight:
        0.72 kg
      • Tariff Code:
        8537101190
      • Country of origin:
        USA
      • Place of shipment:
        Xiamen, Fujian, China
      • Voltage:
        24 Volts DC
      • Processor:
        Freescale i.MX535 1GHz based on ARM Cortex A8
      • Resolution:
        800 x 480 pixels
      • Display Size:
        7 inches
      • Clock Speed:
        1GHz
      • Display Resolution:
        800 x 840 SVGA
      • Power Consumption:
        15 watts
      • Series:
        GE QuickPanel
      • Stock Availability:
        40
      Ask for Quote
      WHAT HAPPENS NEXT?

      From enquiry to delivery

      Six clear steps show what information is required and what the written quotation will contain.
      • 01

        Find the product

        Search the part number or send an inquiry for obsolete, discontinued or hard-to-find parts.
      • 02

        Provide the details

        Share the exact part number, quantity, condition, revision, destination and any required certificates or photos.
      • 03

        Review the quotation

        Receive price, currency, condition, availability, warranty, lead time, shipping terms and quotation validity in writing.
      • 04

        Confirm the order

        Accept the quotation in writing and complete the required payment before shipment.
      • 05

        Pay by bank transfer

        Pay the full invoiced amount by bank wire in RMB/CNY, GBP, EUR or USD using the official invoice details.
      • 06

        Verify and dispatch

        The item receives a pre-shipment inspection and suitable protective packaging. Functional testing is performed only where appropriate equipment and procedures are available for the specific item. We confirm the applicable inspection scope and provide tracking after dispatch.
      Request a Verified Quote
      BUYER INFORMATION

      Product condition level information

      Commercial details are confirmed in writing before payment.
      • 01

        Factory Sealed

        Unused product with the original factory seal intact; packaging age or storage marks may still be present.

        view
      • 02

        Original Pack

        Unused product in original manufacturer packaging that was not originally factory sealed.

        view
      • 03

        Factory New

        New and current product sourced through the manufacturer or authorized supply channel when expressly confirmed in the quotation.

        view
      PRODUCT & ORDER FAQS

      Questions buyers ask about IC755CSW07CDACA-CG

      • What functional role does the IC755CSW07CDACA-CG perform within modern industrial automation and HMI architectures?

        The IC755CSW07CDACA-CG operates as an advanced QuickPanel+ human–machine interface (HMI) designed to facilitate intuitive operator interaction with industrial control systems. It integrates visualization, control, and data monitoring capabilities through a 7-inch capacitive multi-touch display, enabling real-time communication between operators and PLC-based automation environments.

      • Why is the IC755CSW07CDACA-CG considered an efficient operator interface platform for industrial process visualization?

        The IC755CSW07CDACA-CG incorporates a 7-inch TFT widescreen display with 800 × 480 resolution, which provides high-clarity visualization of process graphics, alarms, and operational parameters. Its projected capacitive multi-touch interface enables responsive and intuitive control gestures, enhancing usability in industrial supervisory applications.

      • How does the processor architecture embedded in the IC755CSW07CDACA-CG contribute to real-time HMI performance?

        The IC755CSW07CDACA-CG utilizes a Freescale i.MX535 1 GHz ARM Cortex-A8 processor equipped with 2D/3D graphics acceleration and media processing capabilities. This architecture supports rapid rendering of graphical interfaces, smooth operator interactions, and efficient execution of HMI runtime applications.

      • What memory architecture supports application execution and data retention in the IC755CSW07CDACA-CG?

        The IC755CSW07CDACA-CG integrates a robust memory configuration consisting of: 512 MB DDR2 SDRAM for runtime operations 256 MB SLC NAND flash memory for application storage 512 KB battery-backed SRAM for preserving critical data during power interruptions This memory architecture ensures reliable execution of HMI applications and secure storage of operational data.

      • What operating system environment governs the software execution layer of the IC755CSW07CDACA-CG?

        The IC755CSW07CDACA-CG operates on Microsoft Windows Embedded Compact 7, a lightweight embedded operating system designed for industrial control environments. This platform supports advanced HMI runtime frameworks and provides a stable foundation for real-time visualization applications.

      • How does the display and touch technology of the IC755CSW07CDACA-CG enhance operator ergonomics?

        The IC755CSW07CDACA-CG employs projected capacitive multi-touch technology, which enables gesture-based interaction similar to modern mobile interfaces. This design enhances operator ergonomics by allowing intuitive navigation, rapid parameter adjustment, and precise control of graphical elements within the HMI environment.

      • What electrical power requirements define the operational envelope of the IC755CSW07CDACA-CG?

        The IC755CSW07CDACA-CG is powered by a 24 VDC supply with a tolerance of ±20%, and its maximum power consumption is approximately 15 W. This energy-efficient design allows reliable operation within standard industrial control cabinets and panel installations.
