      ICS Triplex T9451
      ICS Triplex T9451
      ICS Triplex T9451
      ICS Triplex T9451
      ICS Triplex T9451
      ICS Triplex T9451

      • ISO 9001:2015 Certified

        Our quality management system covers sourcing,testing and dispatch

      • View Our Success Stories

        Real stories from real customer orders
      In Stock
      Ships by Tuesday, September 22
      Fast Shipping Available

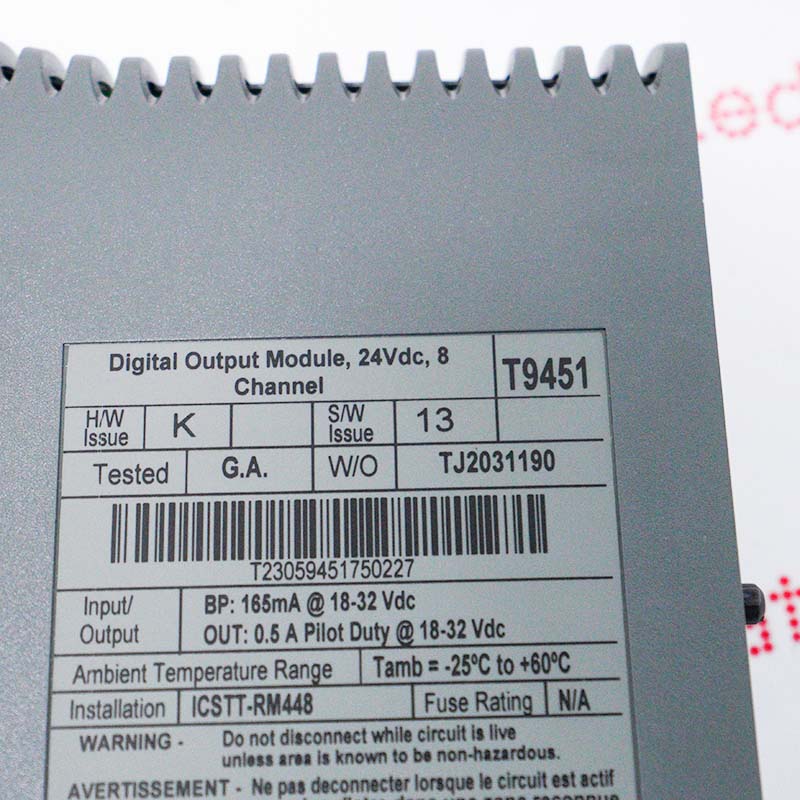

      Digital Output Module

      T9451

      Spare Part Number

      PNT9451

      Product Information:

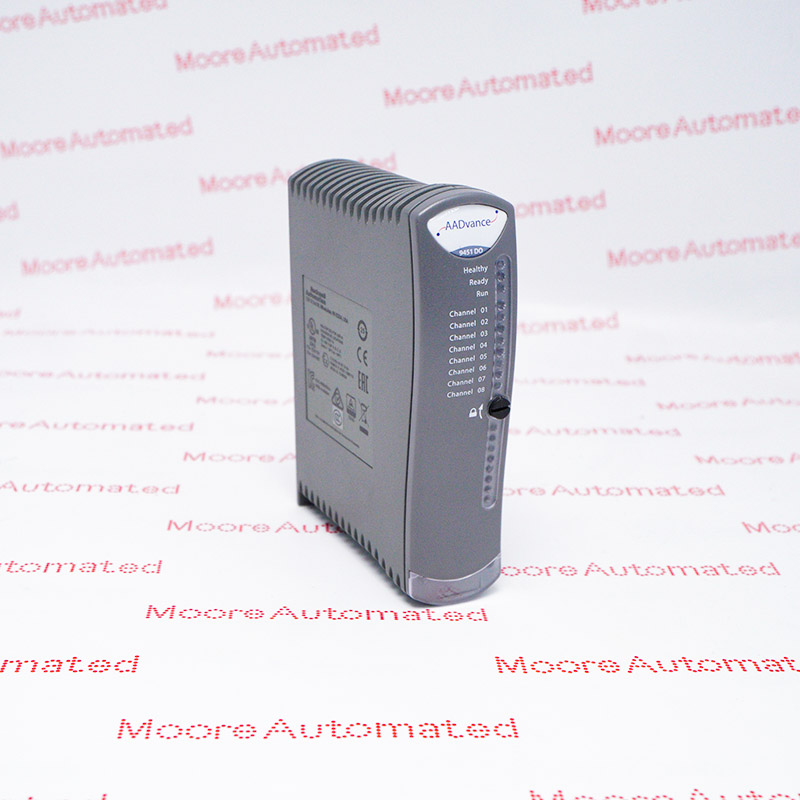

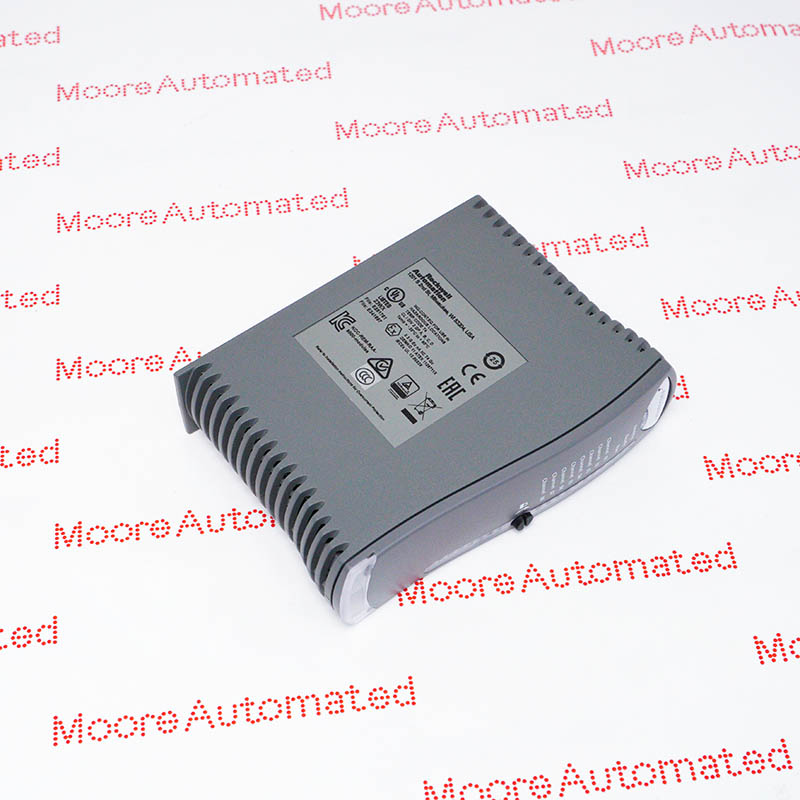

      The ICS Triplex T9451 is an 8-channel isolated 24V DC digital output module designed by Rockwell Automation specifically for AADvance safety controller systems. It is suitable for Safety Instrumented Systems (SIS) and critical control loops, managing high-integrity actuators such as emergency isolation valves, solenoid valves, and trip relays.

      The T9451 also features advanced channel-level voltage/load current monitoring, bidirectional short/open circuit monitoring, and reverse current/overvoltage electrical isolation protection. Through a flexible snap-on connection to the AADvance passive base, the module can be configured in simplex, duplex, or triplex Module Redundancy (TMR) architectures (simplex/duplex redundancy scan cycles as fast as 1.174 ms/...).

      With a lifespan of up to 2.202 ms, it supports hot-swappable in-line replacement to ensure uninterrupted production and fully complies with IEC 61508 SIL 3 safety level requirements. It is widely used in critical life safety control areas, such as emergency stop (ESD) and fire gas systems (F&G).

      Product image is representative; revision or series may vary. Contact us to request a specific version.
      Get a Quote
      • One-year warranty
      • Global shipping
      • Exact-model verification
      WhatsApp: +86 180 2077 6792 Email parts team
      01


      Model Verified

      Model, revision and nameplate reviewed
      02


      Email confirmation

      You will get an email confirming that we have received your enquiry
      03


      Dedicated Account Manager

      One of our team will be in touch to confirm your part(s) specification and condition
      04


      Your quote

      You will receive a comprehensive quote tailored to your specific needs
      Technical specifications for

      T9451

      0 TECHNICAL PARAMETERS
      • Manufacturer:
        ICS Triplex
      • Product Category:
        Safety Automation
      • Spare Part Number:
        T9451
      • Estimated shipping dimensions:
        4x12.3x16.2cm
      • Weight:
        0.34 kg
      • Tariff Code:
        8537101190
      • Country of origin:
        USA
      • Place of shipment:
        Xiamen, Fujian, China
      • Product Type:
        Digital Output Module
      • Category Series:
        AADvance safety controller systems
      • Voltage Range (Vdc):
        18-32 VDC
      • Maximum Current (mA):
        165 mA
      • Outputs per module:
        18-32 Vdc @ 0.5 A
      • Pilot duty:
        16 VA, 1.5 A Inrush
      • Power Supply:
        24 Vdc
      • The number of CH:
        8 channel
      • Power Consumption:
        3.0 W
      • Scan Times:
        1.174 ms 2.202 ms
      • Input/Output Electrical Ratings:
        Output: 18-32 Vdc @ 0.5 A, Pilot duty 16 VA, 1.5 A Inrush
      • Series:
        Trusted TMR Processor System
      • Stock Availability:
        100
      Ask for Quote
      WHAT HAPPENS NEXT?

      From enquiry to delivery

      Six clear steps show what information is required and what the written quotation will contain.
      • 01

        Find the product

        Search the part number or send an inquiry for obsolete, discontinued or hard-to-find parts.
      • 02

        Provide the details

        Share the exact part number, quantity, condition, revision, destination and any required certificates or photos.
      • 03

        Review the quotation

        Receive price, currency, condition, availability, warranty, lead time, shipping terms and quotation validity in writing.
      • 04

        Confirm the order

        Accept the quotation in writing and complete the required payment before shipment.
      • 05

        Pay by bank transfer

        Pay the full invoiced amount by bank wire in RMB/CNY, GBP, EUR or USD using the official invoice details.
      • 06

        Verify and dispatch

        The item receives a pre-shipment inspection and suitable protective packaging. Functional testing is performed only where appropriate equipment and procedures are available for the specific item. We confirm the applicable inspection scope and provide tracking after dispatch.
      Request a Verified Quote
      BUYER INFORMATION

      Product condition level information

      Commercial details are confirmed in writing before payment.
      • 01

        Factory Sealed

        Unused product with the original factory seal intact; packaging age or storage marks may still be present.

        view
      • 02

        Original Pack

        Unused product in original manufacturer packaging that was not originally factory sealed.

        view
      • 03

        Factory New

        New and current product sourced through the manufacturer or authorized supply channel when expressly confirmed in the quotation.

        view

      Alternative Names

      T945I T9A51 T9A5I T9100 T9300 T9401 T9402 T9431 T9432 T9481 T9482 T9801 T8451 T9110

      Information

      Overview Manuals AADvance controller Key Applications

      Features:

      • Digital Output Module, 24Vdc, 8 channel
      • AADvance Controller system module
      • DO Module and provides 8 dual configuration output channels
      The T9451 digital output module has 8 channels for a maximum of 8 field elements and can switch 1 A at 32 Vdc for each device. It features voltage and load current monitoring on each channel, reverse current protection and short and open circuit line monitoring.

      It is designed to always be able to switch off an output when demanded. No single failure in the module can cause a stuckon failure. The module supports dual redundant power feeds for field devices without the need for external diodes.

      The T9451 ICS Triplex Digital Output Module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
      ICS Triplex T9451 Digital Output Module maunal(Datasheets), Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
      The AADvance Workbench has settings for individual digital output channels:
      You can specify a shutdown state for an output channel that defines how the output will behave when the module is in a shutdown mode.
      You can disable the line test feature for an output that disables detection of a no-load condition (e.g. for used output channels).
      • Emergency Shutdown (ESD) System: In the event of a hazardous industrial accident, forces critical processes into a safe state by cutting off power to isolation valves or stopping equipment operation.
      • Fire and Gas (F&G) Protection: Activates deluge valves, fire suppression systems, and audible and visual alarms upon detection of toxic gases or flames.
      • Burnout Management System (BMS): Manages the safe ignition, monitoring, and rapid fuel cutoff of industrial boilers, furnaces, and kilns.
      • Critical Process Interlocks: Controls solenoid valves, motor starters, and heaters to prevent equipment damage or production loss due to output failures.

      Manuals

      Technical notes

      The ICS Triplex T9451 is an 8-channel source-type digital output module (24V DC digital output module) manufactured by ICS Triplex, a subsidiary of Rockwell Automation, and designed specifically for AADvance control systems. As a core actuator in high-safety, high-fault-tolerant control systems, it can safely drive industrial loads in the field, such as valves, solenoid valves, relays, and contactors. The module operates from 18 to 32V DC (nominal voltage 24V DC), and each independent channel can continuously provide up to 1A/0.5A of steady-state current (depending on the application load). The module consumes only 3.0 watts and integrates a watchdog circuit and robust fault protection design to prevent channel output "blockage" due to a single point of failure.
      PRODUCT & ORDER FAQS

      Questions buyers ask about T9451

      • How does the T9451 ensure reliable signal integrity under mission-critical operating conditions?

        The T9451 employs industrial-grade electronic design, isolation technology, and noise-resistant circuitry to maintain high-integrity signal transmission in harsh electrical environments.

      • Why is the T9451 considered suitable for high-availability and safety-critical process applications?

        The T9451 uses a fault-tolerant architecture and reliability-centric design principles to support continuous operation of safety-oriented industrial systems.

      • How does the T9451 improve diagnostic transparency and system health monitoring?

        The T9451 integrates onboard diagnostics, enabling real-time fault detection, channel status reporting, and operational status monitoring.

      • What protection mechanisms are embedded in the T9451 architecture?

        The T9451 includes overvoltage protection, current limiting, and isolation barriers designed to protect the module and connected field devices from electrical anomalies.

      • In which industrial sectors is the T9451 most commonly used?

        The T9451 is widely used in power generation, oil and gas, petrochemical processing, and other continuous production industries with high system reliability requirements.
