Features:
- Powerful 60 - 960 W DC power supply unit for universal use
- DIN rail power supply unit 24 V DC/40 A, primary switched-mode, 3-phase
- This solution offers advantages such as a wide input range, single-phase and three-phase versions, and international certification
The QUINT POWER is a powerful 60-960W DC power supply suitable for a wide range of applications. With its wide input range, single-phase and three-phase versions, and international certifications, this solution is truly unique. The QUINT POWER provides reliable power: large-capacity capacitors ensure a mains buffer time of over 20 milliseconds at full load. Even in the event of a permanent phase loss, all three-phase devices deliver full power output.
The Power Boost power reserve function easily starts loads with high inrush currents and ensures reliable fuse tripping. Preventative monitoring functions diagnose abnormal operating conditions, minimizing system downtime.

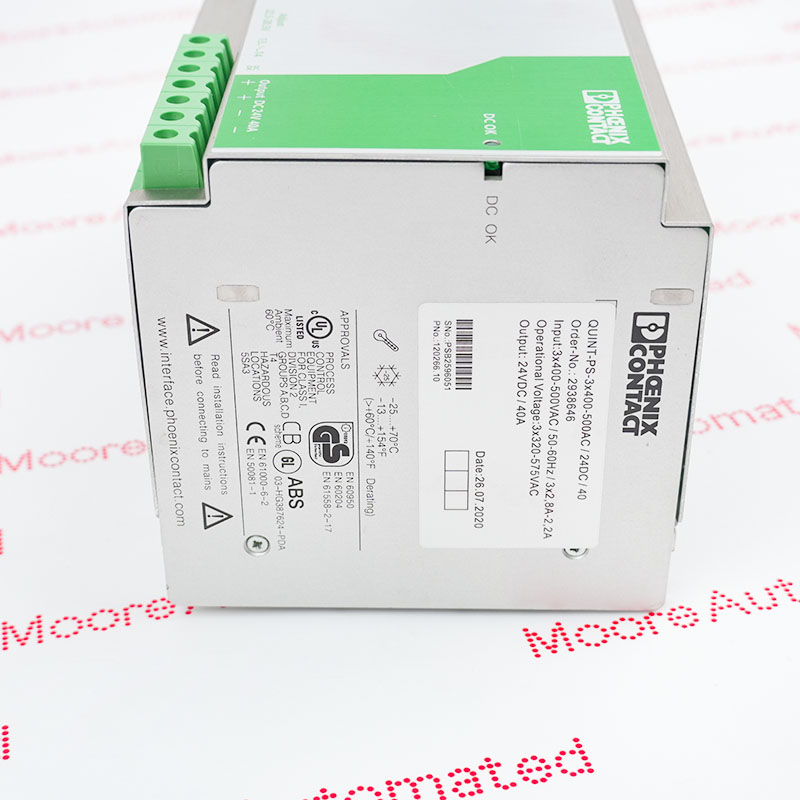

The QUINT-PS-3X400-500AC/24DC/40 2938646 Phoenix Contact Power supply module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Phoenix Contact QUINT-PS-3X400-500AC/24DC/40 2938646 Power supply module DATASHEET(manual), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Remote monitoring is achieved through active transistor switch outputs and floating relay contacts. All devices feature no-load and short-circuit protection and offer 12, 24, and 48V DC regulated adjustable output voltages and 2.5, 5, 10, 20, 30, and 40A output currents. The comprehensive product portfolio also includes Ex 2 zone power units, uninterruptible power supply solutions, AS-i power units, and QUINT diodes.
This unit is typically used in large "factory and special engineering" environments where a reliable and continuous power supply is critical.
Heavy-duty Start-up: Equipped with POWER BOOST functionality, it provides 45A of temporary power reserve for starting loads with high inrush currents, such as large motors or solenoid valves.
Complex Automation Centers: Powers centralized control cabinets containing multiple PLCs, HMIs, and dozens of sensors and actuators.
Harsh Electrical Environments: Maintains full operation even in the event of a permanent phase failure in a three-phase power grid.
Critical Infrastructure: Widely used in industries such as mining, automotive manufacturing, and water treatment due to its international certifications (UL, ATEX, shipbuilding).
