Features:
- 3300 System 3300 XL 8 mm Proximity Probes
- 3300 XL 8 mm Proximity Transducer System
- 330101 3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor
The 3300 XL probe and extension cable also reflect improvements over previous designs. A patented TipLoc molding method provides a more robust bond between the probe tip and the probe body. The probe’s cable incorporates a patented CableLoc design that provides 330 N (75 lbf) pull strength to more securely attach the probe cable and probe tip.
8 mm probes provide a thicker encapsulation of the probe coil in the molded PPS plastic probe tip. This results in a more rugged probe. The larger diameter of the probe body also provides a stronger, more robust case. We recommend that you use 8 mm probes when possible to provide optimal robustness against physical abuse. You can also order 3300 XL 8 mm probes and extension cables with an optional FluidLoc cable option. This option prevents oil and other liquids from leaking out of the machine through the cable’s interior.

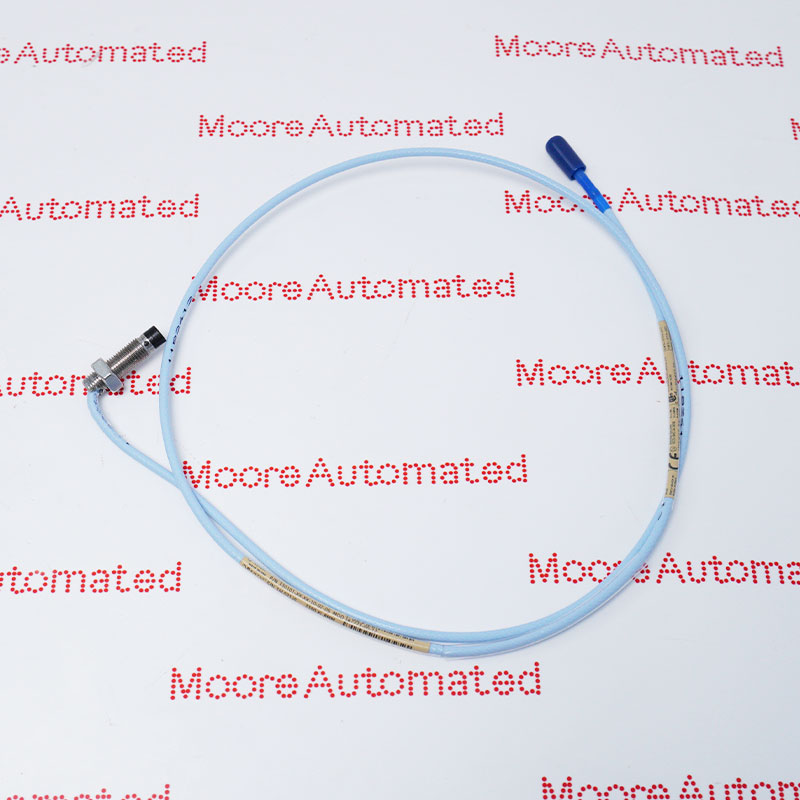

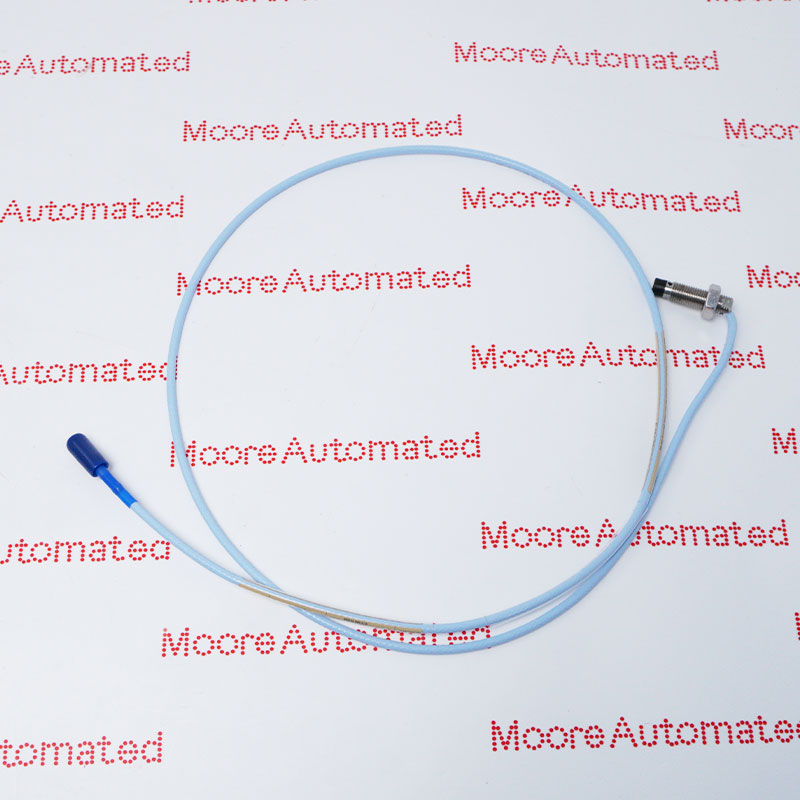

The 330101-XX-XX-10-02-05 MOD147773-00-12 Bently Nevada 3300 XL 8 mm Proximity Probes may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330101-XX-XX-10-02-05 MOD147773-00-12 3300 XL 8 mm Proximity Probes Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

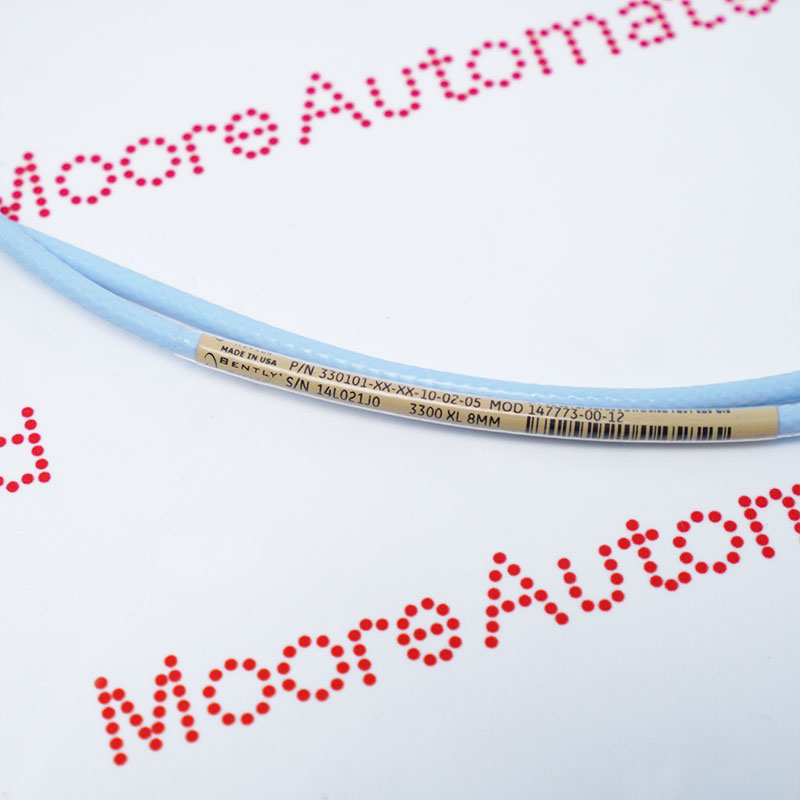

- Model: 330101-XX-XX-10-02-05 MOD147773-00-12
- Warranty: One-year warranty
- Condition: Brand new, original, in stock
- Product Family: 3300 XL 8 mm Proximity Transducer System
3300 XL 8 mm Proximity Probes:
330101 3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor
330101-Axx-Bxx-Cxx-Dxx-Exx
A: Unthreaded Length
Order in increments of 0.1 in.
Length configurations:
Maximum unthreaded length: 8.8 in.
Minimum unthreaded length: 0.0 in.
Example: 0 4 = 0.4 in.
B: Overall Case Length
Order in increments of 0.1 in.
Standard thread configurations:
Maximum case length: 9.6 in.
Minimum case length: 0.8 in.
Example: 2 4 = 2.4 in.
C: Total Length
05: 0.5 meter (1.6 feet)
10: 1.0 meter (3.3 feet)
15: 1.5 meter (4.9 feet)
20: 2.0 meters (6.6 feet)
30: 3.0 meters (9.8 feet)
50: 5.0 meters (16.4 feet)
90: 9.0 meters (29.5 feet)
D: Connector and Cable-Type
01: Miniature coaxial ClickLoc connector with connector protector, standard cable
02 Miniature coaxial ClickLoc connector, standard cable
11: Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable
12: Miniature coaxial ClickLoc connector, FluidLoc cable
E: Agency Approval Option
00: Not required
05: CSA, ATEX, IECEx Approvals
When used with the certified Bently Nevada Proximitor sensor and corresponding intrinsically safe housing, this probe has the following structural certifications:
1.ATEX (Europe): Certified for use in potentially explosive atmospheres (Zones 0, 1, and 2), meeting explosion-proof, intrinsically safe, and non-sparking parameter requirements.
2.IECEx (International): Globally recognized certification, conforming to international standards for explosive gas and dust environments.
3.CSA (North America): Approved for use in Class I, Zone 1 and 2 (Groups A, B, C, and D) and Class II and III environments in Canada and the United States.
