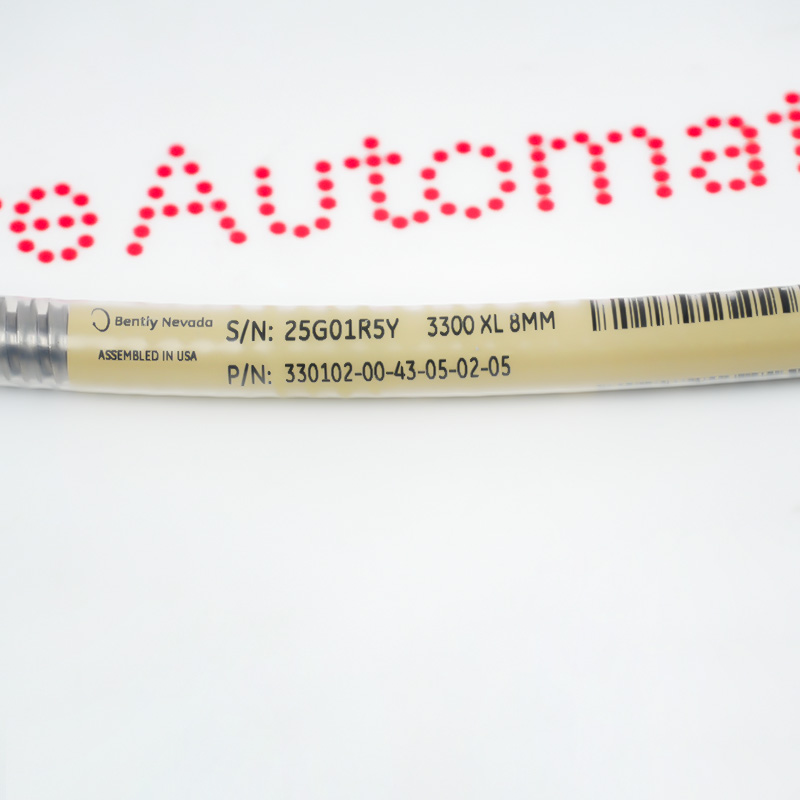

      Bently Nevada 330102-00-43-05-02-05
      Bently Nevada 330102-00-43-05-02-05
      · Product image is representative; revision or series may vary. Contact us to request a specific version.
      Get a Quote

      330102-00-43-05-02-05

      3300 XL 8 mm Proximity Probes
      In Stock
      Ships by Tuesday, June 23
      Fast Shipping Available

      Product Information:

      The Bently Nevada 330102-00-43-05-02-05 is an industrial-grade 3300 XL 8mm proximity eddy current probe with an integrated stainless steel flexible armor sheath. As part of the Baker Hughes 3300 XL series, this probe can be used with Proximitor sensors and extension cables to measure non-contact static displacements (e.g., shaft thrust position) or dynamic micro-vibrations in hydrodynamic bearings of rotating machinery.

      Warranty Policy
      We provide 1 year warranty for all remaining parts.
      The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
      Return Notice
      The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
      In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
      Shiping Mode
      Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
      Parts Availability
      Moore automated offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
      Expand All
      Collapse all

      Technical specifications for 330102-00-43-05-02-05

      • Manufacturer:
        Bently Nevada
      • Product Category:
        TSI System
      • Estimated shipping dimensions:
        1.5x1.3x65cm
      • Weight:
        0.05 kg
      • Tariff Code:
        8537101190
      • Country of origin:
        USA
      • Place of shipment:
        Xiamen, Fujian, China
      • Product Type:
        Proximity Probes
      • Series:
        3300 Series
      • Unthreaded Length:
        0.0 in
      • Overall Case Length:
        4.3 in
      • Total Length:
        0.5 meter (1.6 feet)
      • Connector and Cable-Type:
        Miniature coaxial ClickLoc connector, standard cable
      • Agency Approval:
        CSA, ATEX, IECEx Approvals
      • Probe Case Material:
        AISI 303 or 304 stainless steel (SST)
      • Operating and Storage Temperature:
        -52°C to +177°C (-62°F to +350°F)
      • Probe Relative Humidity:
        Less than a 3% change
      • Stock:
        100
      Ask for Quote

      Alternative Names

      330102 00 43 05 02 05 330I02-00-43-05-02-05 33O1O2-OO-43-O5-O2-O5 330102-00-43-05-02-00 330102-00-43-05-02-CN 330102-00-43-05-02-BR 330102-00-43-05-02-RU 330102-00-43-05-01-05 330102-00-43-05-12-05 330102-00-43-05-11-05 330102-00-43-05-01-00 330102-00-43-05-12-CN 330102-00-43-05-11-BR

      Information

      Overview Manuals Basic Info Instruction info Loop Length Compatibility Warning

      Features:

      • 3300 XL 8 mm Proximity Probes
      • 3300 XL 8 mm Proximity Transducer System
      • 330102 3300 XL 8 mm Probe, 3/8-24 UNF thread, with armor
      The 3300 XL probe and extension cable also reflect improvements over previous designs. A patented TipLoc molding method provides a more robust bond between the probe tip and the probe body. The probe’s cable incorporates a patented CableLoc design that provides 330 N (75 lbf) pull strength to more securely attach the probe cable and probe tip.

      8 mm probes provide a thicker encapsulation of the probe coil in the molded PPS plastic probe tip. This results in a more rugged probe. The larger diameter of the probe body also provides a stronger, more robust case. We recommend that you use 8 mm probes when possible to provide optimal robustness against physical abuse.

      The 330102-00-43-05-02-05 Bently Nevada 3300 XL 8 mm Proximity Probes may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
      Bently Nevada 330102-00-43-05-02-05 3300 XL 8 mm Proximity Probes Manuals(Datasheets), Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
      • Model: 330102-00-43-05-02-05
      • Warranty: One-year warranty
      • Condition: Brand new, original, in stock
      • Product Family: 3300 XL 8 mm Proximity Transducer System
      3300 XL 8 mm Proximity Probes:
      330102 3300 XL 8 mm Probe, 3/8-24 UNF thread, with armor
      330102-Axx-Bxx-Cxx-Dxx-Exx

      A: Unthreaded Length
      Order in increments of 0.1 in.
      Length configurations:
      Maximum unthreaded length: 8.8 in.
      Minimum unthreaded length: 0.0 in.
      Example: 0 4 = 0.4 in.

      B: Overall Case Length
      Order in increments of 0.1 in.
      Standard thread configurations:
      Maximum case length: 9.6 in.
      Minimum case length: 0.8 in.
      Example: 2 4 = 2.4 in.

      C: Total Length
      05: 0.5 meter (1.6 feet)
      10: 1.0 meter (3.3 feet)
      15: 1.5 meter (4.9 feet)
      20: 2.0 meters (6.6 feet)
      30: 3.0 meters (9.8 feet)
      50: 5.0 meters (16.4 feet)
      90: 9.0 meters (29.5 feet)

      D: Connector and Cable-Type
      01: Miniature coaxial ClickLoc connector with connector protector, standard cable
      02 Miniature coaxial ClickLoc connector, standard cable
      11: Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable
      12: Miniature coaxial ClickLoc connector, FluidLoc cable

      E: Agency Approval Option
      00: Not required
      05: CSA, ATEX, IECEx Approvals
      Because this probe cable is 0.5 meters (-0.5), a 4.5-meter extension cable must be used to connect it to the standard 5.0-meter Proximitor sensor. Using a 0.5-meter probe with an incorrect 8.5-meter extension cable will alter the system's total impedance, disrupt the calibration linearity curve, and cause the monitoring rack to record permanent voltage faults or false machine trips.

      Manuals

      Technical notes

      The Bently Nevada 330102-00-43-05-02-05 is an 8mm metric reverse-mount eddy current displacement probe (proximity probe) fully compliant with API 670 3300 XL series standards. Based on its suffix parameters, key technical features of this model include: a threadless housing design (00), a total housing length of 43mm, M10 x 1 metric thread ideal for reverse screwing into bearing housings or deep holes; a total system length of 0.5 meters (1.6 feet); a 0.2-inch FluidLoc signal cable with corrosion and liquid penetration resistance; and a standard ClickLoc miniature coaxial connector and a 0.5-inch flexible stainless steel armored protective sleeve.

      Ask our team:

      Related Products

      Browsing history

      FAQ

      View All Faqs
      • Why is the Bently Nevada 330102-00-43-05-02-05 widely used in machinery protection systems requiring high-resolution radial vibration and shaft position monitoring?
        The 330102-00-43-05-02-05 offers reliable proximity sensing performance, supporting advanced machinery condition assessment and asset protection strategies.
      • How does the Bently Nevada 330102-00-43-05-02-05 maintain signal linearity and measurement accuracy when monitoring high-speed rotating equipment under dynamic operating conditions?
        The 330102-00-43-05-02-05 is designed to ensure stable measurement performance and accurate shaft motion analysis.
      • How does the Bently Nevada 330102-00-43-05-02-05 minimize measurement uncertainty through its calibrated proximity sensor design and optimized electromagnetic sensing performance?
        The 330102-00-43-05-02-05 helps ensure consistent and repeatable measurement results in long-term monitoring applications.
      • What key technical parameters, including probe size, mounting configuration, and system length specifications, should engineers evaluate when integrating the Bently Nevada 330102-00-43-05-02-05?
        Engineers should verify sensor compatibility, mounting geometry, environmental conditions, and monitoring requirements when deploying the 330102-00-43-05-02-05.
      • Why is the Bently Nevada 330102-00-43-05-02-05 considered a key component of predictive maintenance programs focused on the reliability of rotating equipment?
        The 330102-00-43-05-02-05 provides accurate displacement and vibration data, supporting early fault detection and condition-based maintenance strategies.
      • How does the Bently Nevada 330102-00-43-05-02-05 improve diagnostic transparency by accurately monitoring the motion, eccentricity, and vibration characteristics of shafts?
        330102-00-43-05-02-05 enables the mechanical monitoring system to provide detailed status information, thereby supporting operational decisions.
