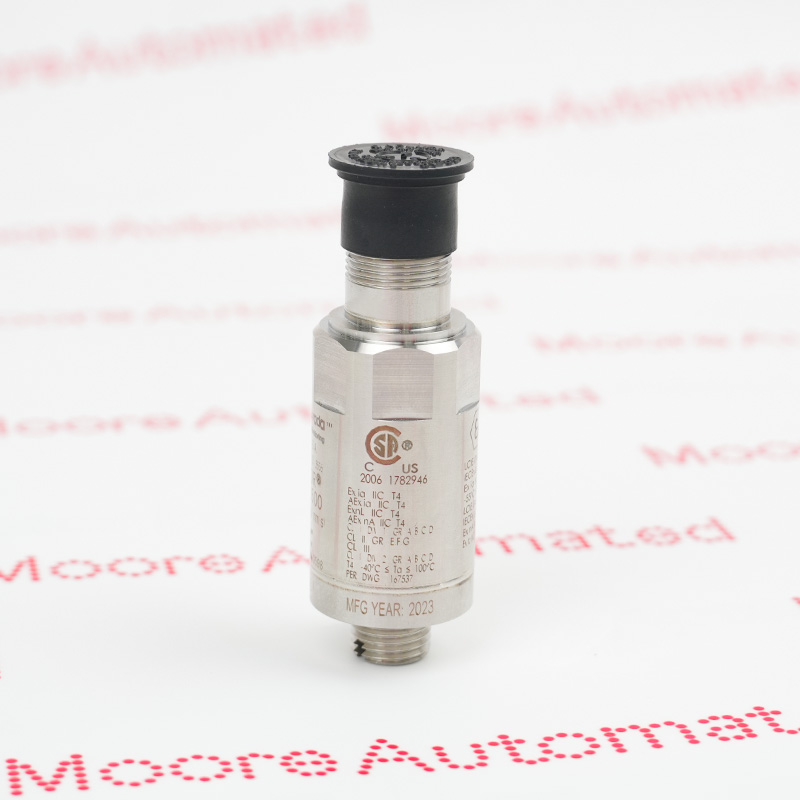

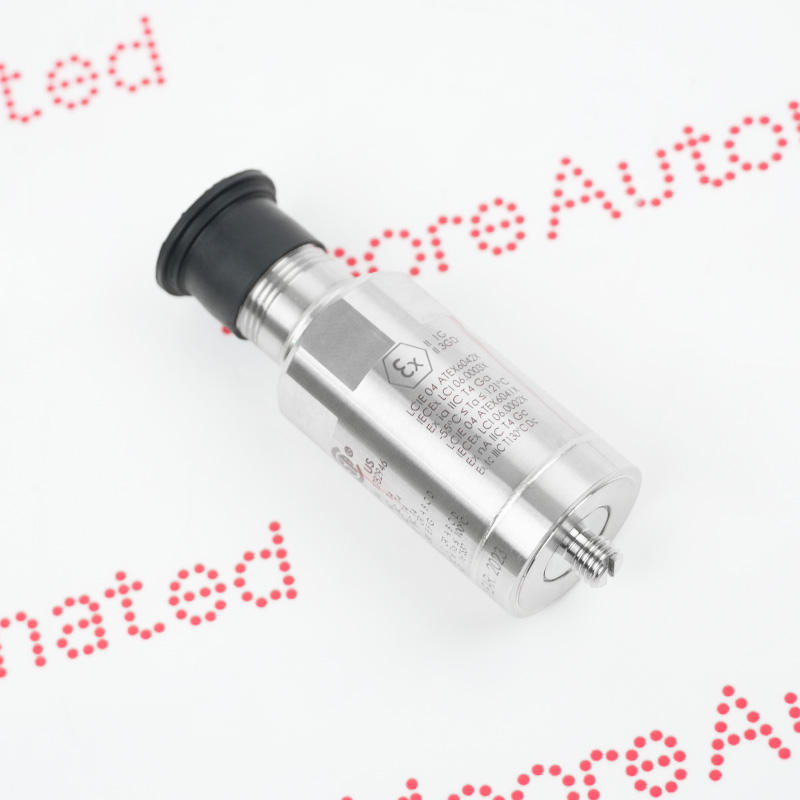

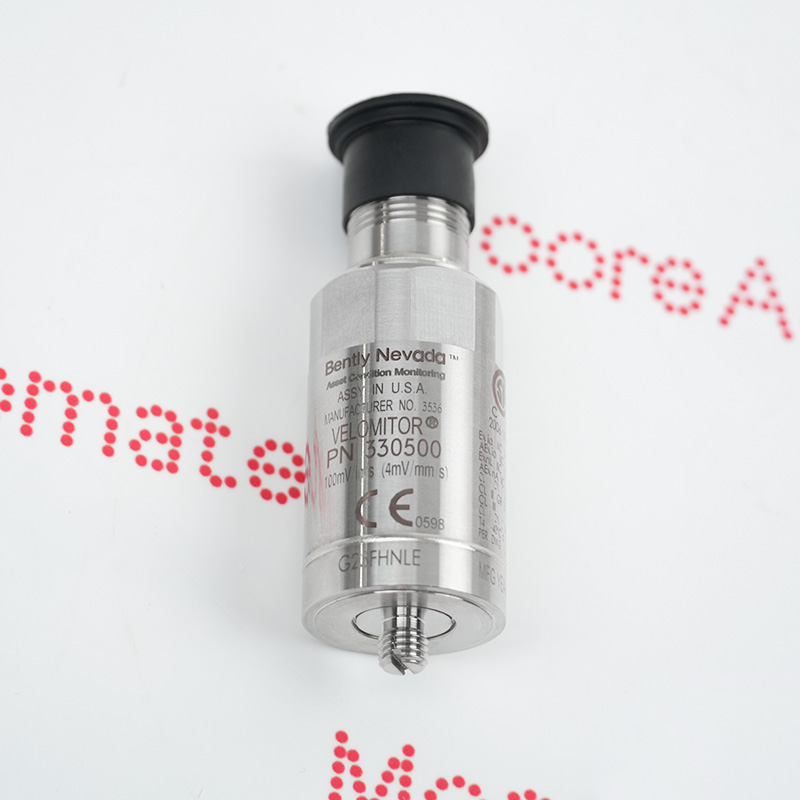

      Bently Nevada 330500-03-04
      Bently Nevada 330500-03-04
      · Product image is representative; revision or series may vary. Contact us to request a specific version.
      Get a Quote

      330500-03-04

      Velomitor Piezo-velocity Sensor
      In Stock
      Ships by Tuesday, June 16
      Fast Shipping Available

      Product Information:

      The Bently Nevada 330500-03-04 is an industrial-grade, high-precision piezoelectric velocity sensor. Manufactured by Baker Hughes, this solid-state sensor is specifically designed to measure vibrations in rotating machinery bearing housings, shells, or structures. It is widely used in equipment such as pumps, compressors, motors, and fans, and is particularly suitable for equipment employing rolling bearings.

      Warranty Policy
      We provide 1 year warranty for all remaining parts.
      The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
      Return Notice
      The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
      In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
      Shiping Mode
      Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
      Parts Availability
      Moore automated offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
      Expand All
      Collapse all

      Technical specifications for 330500-03-04

      • Manufacturer:
        Bently Nevada
      • Product Category:
        TSI System
      • Estimated shipping dimensions:
        6.2x2.4x2.4cm
      • Weight:
        0.14 kg
      • Tariff Code:
        8537101190
      • Country of origin:
        USA
      • Place of shipment:
        Xiamen, Fujian, China
      • Mounting Thread Adaptor:
        1/4-28 UNF
      • Agency Approval:
        Multiple approvals (CSA, ATEX)
      • Product Type:
        Sensor
      • Operating Temperature Range:
        -55°C to 121°C (-67°F to 250°F)
      • Relative Humidity:
        To 100% non-submerged
      • Sensitivity:
        3.94 mV/mm/s (100 mV/in/s) ±5%
      • Temperature Sensitivity:
        -14% to +7.5% typical over the operating temperature range
      • Velocity Range:
        1270 mm/s (50 in/s) peak
      • Transverse Sensitivity:
        Less than 5% of sensitivity
      • Amplitude Linearity:
        ±2% to 152 mm/s (6 in/s) peak
      • Mounted Resonant Frequency:
        Greater than 12 kHz
      • Dynamic Output Impedance:
        Less than 2400 Ω
      • Shock Survivability:
        5,000 g peak, maximum
      • Base Strain Sensitivity:
        0.005 in/s/mstrain
      • Magnetic Field Susceptibility:
        <51 min/s/gauss (50 gauss, 50-60Hz)
      • Stock:
        105
      Ask for Quote

      Alternative Names

      3305000304 330500 03 04 33O5OO-O3-O4 330500-03-00 330500-03-01 330500-03-02 330500-06-04 330500-07-04 330500-08-04 330500-02-04 330500-01-04 330500-07-02 330500-08-00 330500-06-01 330500-06-02 330500-03-CN

      Information

      Overview Manuals Basic Info Ordering Info Installation & Mechanical Constraints

      Features:

      • Velomitor Piezo-velocity Sensor
      • 330500 Velomitor Piezo-velocity Sensor
      • When the sensor case motion is toward the connector, Pin A becomes positive with respect to pin B
      Bently Nevada Velomitor Piezo-velocity Sensors are designed to measure absolute (relative to free space) bearing housing, casing, or structural vibration. The 330500 is a specialized piezoelectric accelerometer that incorporates embedded integrated electronics in a solid-state design.

      Because the 330500 incorporates solid-state electronics and has no moving parts, it does not suffer from mechanical degradation and wear, and can be mounted vertically, horizontally, or at any other angle of orientation.

      The 330500-03-04 Bently Nevada Velomitor Piezo-velocity Sensor may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
      Bently Nevada 330500-03-04 Velomitor Piezo-velocity Sensor Manuals(Datasheets), Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
      • Model: 330500-03-04
      • Warranty: One-year warranty
      • Condition: Brand new, original, in stock
      • Product Family: 330500 Velomitor Piezo-velocity Sensor
      Velomitor Piezo-velocity Sensor
      330500-Axx-Bxx

      A: Mounting Thread Adaptor
      00: No adapter
      01: 1/2 - 20 UNF
      02: M8 x 1
      03: 1/4 - 28 UNF
      04: 1/4 - 20 UNC
      05: Unavailable for 330500
      Note: For 1/4-18 NPT mounting, order 330525.
      06: 5/8 – 18 UNF
      07: 3/8 – 16 UNC
      08: 1/2 – 13 UNC

      B: Agency Approval
      00: Not required
      01: CSA/US/C
      02: ATEX (European)
      04: Multiple approvals (CSA, ATEX)
      Installation torque limit: Must be securely tightened within the maximum torque range of 32 to 46 kg·cm (24 to 40 in-lb) to ensure accurate frequency tracking while avoiding excessive stress on the housing.
      Displacement warning: Integrating the sensor output to track raw displacement parameters may inadvertently amplify adjacent electrical noise or line interference, affecting the validity of the data. Ensure proper shielding and grounding configuration.

      Manuals

      Technical notes

      The Bently Nevada 330500-03-04 is a piezoelectric velocity sensor designed for vibration monitoring of industrial bearing housings, enclosures, or structures. Its key technical characteristics include: this model (where -03 indicates a 1/4-28 UNF threaded adapter, and -04 indicates multiple explosion-proof and hazardous area safety certifications, such as CSA/ATEX) integrates solid-state electronic ICs, making it resistant to mechanical wear and allowing for installation at any angle; its standard sensitivity is 3.94 mV/mm/s (100 mV/in/s), its frequency response range is 4.5 Hz to 5 kHz, and its maximum peak velocity measurement is 1270 mm/s.

      Ask our team:

      Related Products

      Browsing history

      FAQ

      View All Faqs
      • How does the Bentley Nevada 330500-03-04 optimize signal integrity and vibration monitoring accuracy for proximity sensors in critical rotating machinery applications?
        The 330500-03-04 is designed to provide stable signal transmission and accurate measurement performance for machinery condition monitoring systems.
      • Why is the Bentley Nevada 330500-03-04 widely used in turbomachinery and industrial asset protection systems requiring high-fidelity vibration and shaft position measurements?
        The 330500-03-04 supports reliable signal conditioning and transmission, helping to ensure accurate machinery health assessments.
      • What are the operational advantages of the Bentley Nevada 330500-03-04 with its industrial-grade construction, calibration sensor compatibility, and accurate signal transmission characteristics?
        The 330500-03-04 improves measurement reliability while supporting long-term operation in harsh industrial environments.
      • Why is the Bently Nevada 330500-03-04 particularly suitable for applications requiring precise monitoring of shaft displacement, radial vibration, and thrust position?
        The 330500-03-04 facilitates accurate mechanical diagnostics by supporting high-quality sensor system performance.
      • How does Bently Nevada 330500-03-04 ensure the continued reliable operation of mechanical protection systems in harsh industrial environments?
        330500-03-04 is designed to support reliable operation under demanding mechanical and environmental conditions.
