- 9200 Two-wire Transducer
- 9200 and 74712 Seismoprobe Velocity Transducers
- 25 mm/s (1 in/s) (at +22 °C of casing vibration at 100 Hz with a 10 kΩ load
The 9200 is a two-wire transducer suitable for continuous monitoring or for periodic measurements in conjunction with test or diagnostic instruments. When ordered with the integral cable option, the 9200 has excellent resistance to corrosive environments without need of additional protection.
Bently Nevada™ Seismoprobe Velocity Transducer Systems are designed to measure absolute (relative to free space) bearing housing, casing, or structural vibration. The two-wire systems consist of a transducer and appropriate cable. The Seismoprobe family of velocity transducers is a two-wire design that uses moving-coil technology. It provides a voltage output directly proportional to the transducer's vibration velocity. Moving-coil transducers are less sensitive to impact or impulsive excitation than solid-state velocity transducers, which are inherently accelerometers with embedded integration electronics. Moving-coil transducers are less sensitive to impact or impulsive excitation and can represent a good choice for certain applications. Because they don’t require external power, they are convenient for portable measurement applications.
The 9200-02-01-10-00 Bently Nevada Two-wire Transducer may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 9200-02-01-10-00 Two-wire Transducer Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

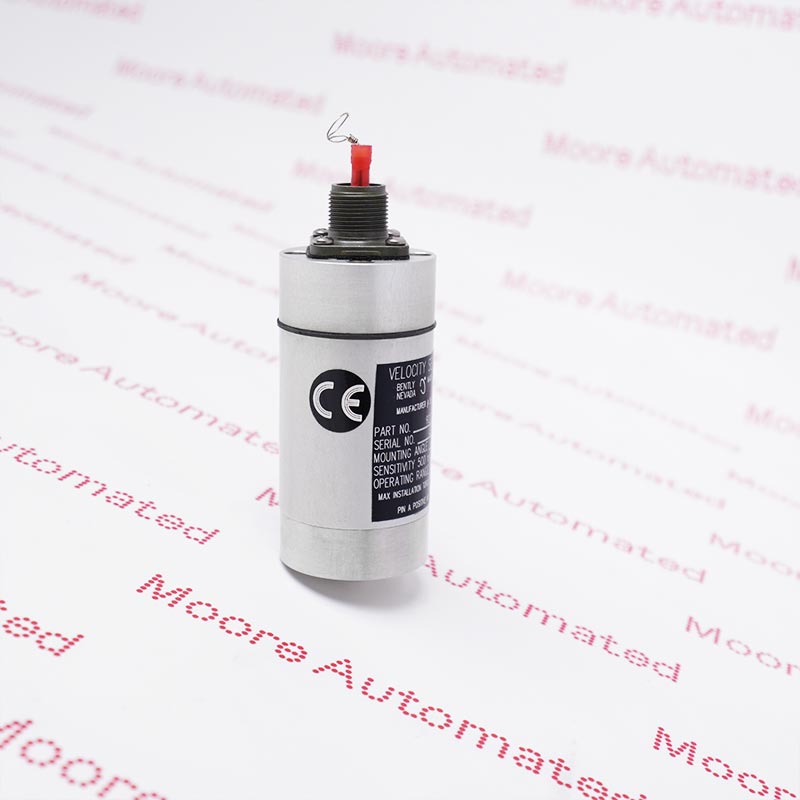

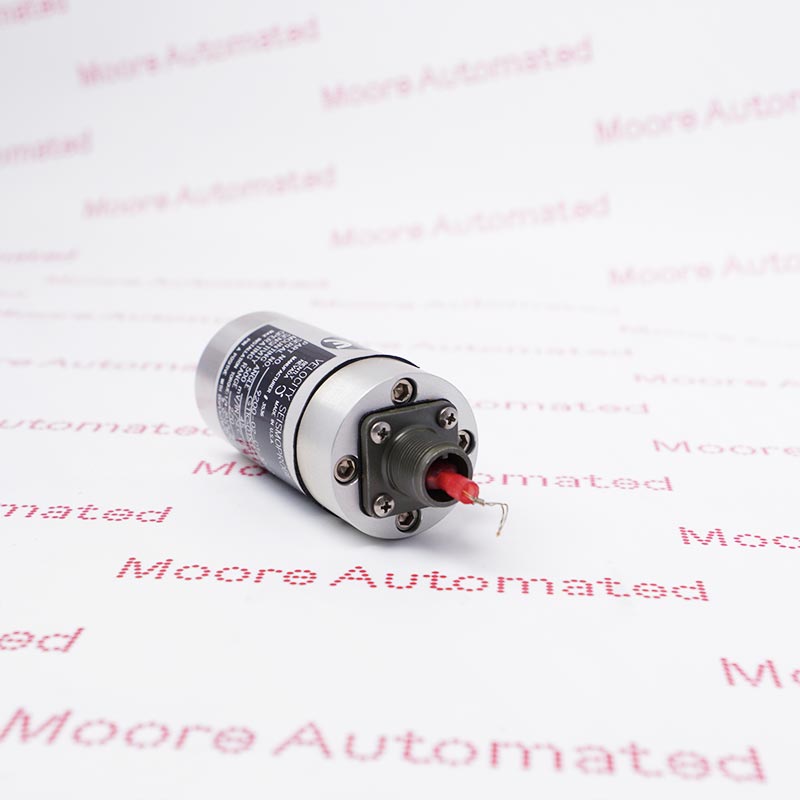

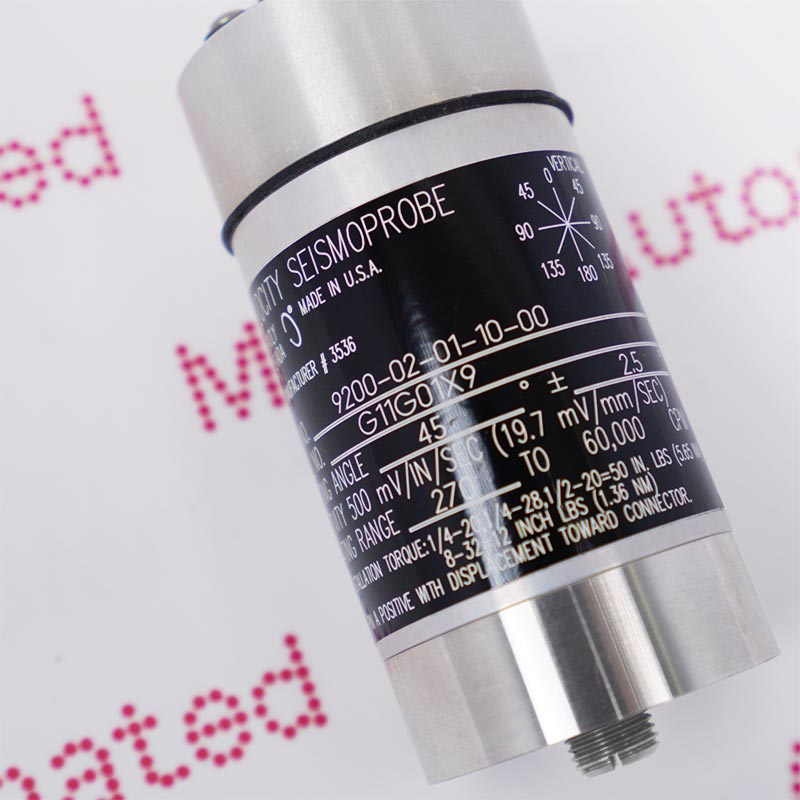

- Model: 9200-02-01-10-00
- Warranty: One-year warranty
- Condition: Brand new, original, in stock
- Product Family: 9200 and 74712 Seismoprobe Velocity Transducers
Two-wire Transducer
9200-Axx-Bxx-Cxx-Dxx
A: Transducer Mounting Angle/Minimum
Operating Frequency
01: 0 ±2.5, 4.5 Hz (270 cpm)
02: 45 ±2.5, 4.5 Hz (270 cpm)
03: 90 ±2.5, 4.5 Hz (270 cpm)
06: 0 ±100, 10 Hz (600 cpm)
09: 0 ±180, 15 Hz (900 cpm)
B: Connector/Cable
01: Top Mount (no cable)
02: Side Mount (no cable)
05: Terminal block top mount (no cable)
10: 10 feet (3.0 meter)
15: 15 feet (4.6 meter)
22: 22 feet (6.7 meter)
32: 32 feet (9.8 meter)
50: 50 feet (15.2 meter)
C: Mounting Base
01: Circular; 1/4-20 UNC stud
02: Circular; 1/4-28 UNF stud
03: Rectangular flange
04: Circular; with three 8-32 threaded studs on a 44 mm (1.75 in) diameter bolt circle
05: No base; 1/2-20 UNF-3A stud
06: Isolated circular 1/4-20 UNC stud
07: Isolated circular 1/4-28 UNF stud
08: Isolated rectangular flange
09: Isolated circular 5/8-18 UNF stud
10: Circular; M10X1 stud
11: Isolated circular M10X1
12: Isolated circular 1/2-20 UNF-2A
D: Agency Approval
00: No Approvals
01: CSA
04: ATEX/IECEx
The 9200 Series is designed for heavy machinery and is suitable for applications where rotor vibration is directly transmitted to the housing, or where it is impossible to install a relative shaft measuring device:
Pumps and Fans: Monitor large centrifugal pumps, cooling tower fans, and induced draft/forced draft fans to detect imbalances, structural loosening, or aerodynamic instabilities via housing rotation speed.
Gas Turbines and Steam Turbines: Mounted on the bearing housings of critical turbine equipment to track overall structural integrity and detect blade deterioration or misalignment.
Reciprocating and Centrifugal Compressors: Measure housing structural vibrations of heavy-duty compressor frames to prevent mechanical failure.
Harsh and Low-Power Environments: Suitable for remote piping networks, retrofitting of older equipment, or portable data acquisition systems where setting up loop power or proximity drive systems is impractical.
