Features:
- 0 to 12.7 mm/s measurement range
- 10 Hz to 1 kHz RMS response
- Loop-powered 4 to 20 mA output
- 316L stainless-steel construction

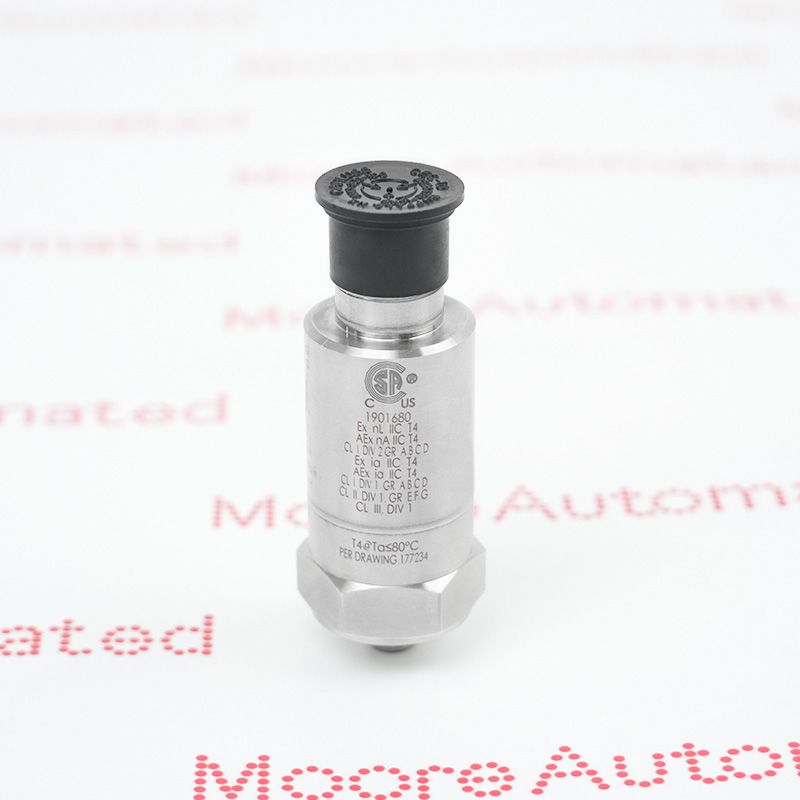

- Option 05 hazardous-area approvals

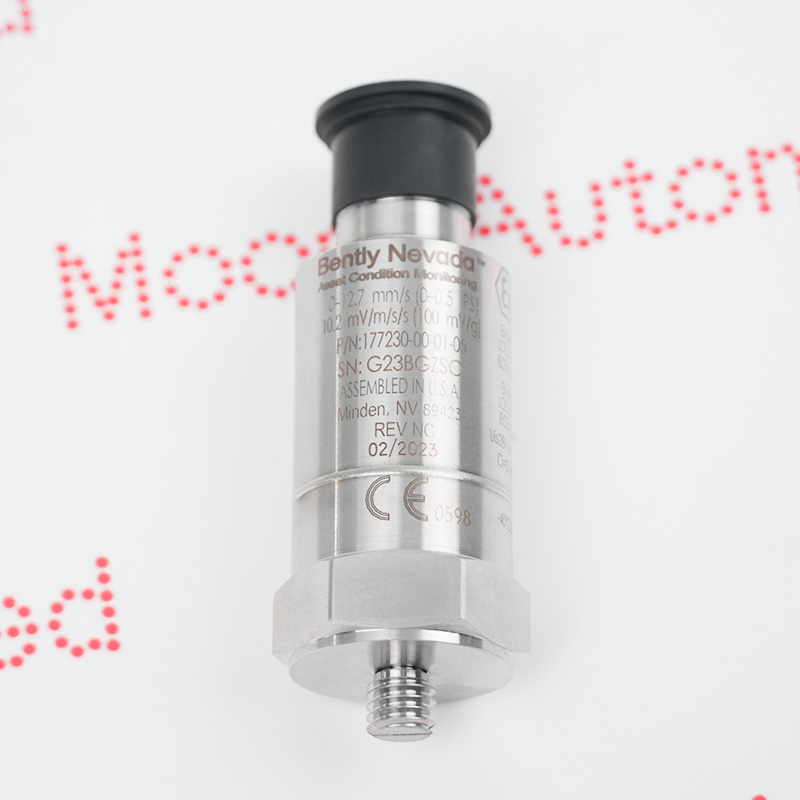

Bently Nevada 177230-00-01-05 is a self-contained seismic vibration transmitter for machine casing measurements. Its ordering code defines the 0 to 12.7 mm/s range, 10 Hz to 1 kHz RMS response and approval option 05.
The transmitter combines a piezoelectric sensing element, signal conditioning and 4 to 20 mA output in a stainless-steel housing. Mounting surface, stud, wiring polarity, loop input and measurement range must be checked before commissioning.
The Bently Nevada 177230-00-01-05 may be supplied and supported by Moore Automated according to the stated manufacturer lifecycle and confirmed stock condition.
Bently Nevada 177230-00-01-05 Seismic Vibration Transmitter Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, licenses and related items are not included with this equipment unless listed in the stock item description. All prices are shown in USD.
Measurement Profile:
- 0 to 12.7 mm/s velocity range
- 10 Hz to 1 kHz RMS response
- Absolute casing vibration measurement
Use the range and frequency option defined by the complete order code.
Signal Interface:
- Proportional 4 to 20 mA output
- Dynamic vibration signal
- 3-pin MIL-C-5015 connector
Verify loop polarity, receiving load and access to the dynamic signal where required.
Installation Guidance:
- Rigid flat mounting surface
- Correct threaded mounting stud
- -40 to +85 °C operation
Mechanical mounting quality directly affects the transmitted vibration measurement.
