Features:
- 3300 XL 8 mm Proximity Probes
- 3300 XL 8 mm Proximity Transducer System

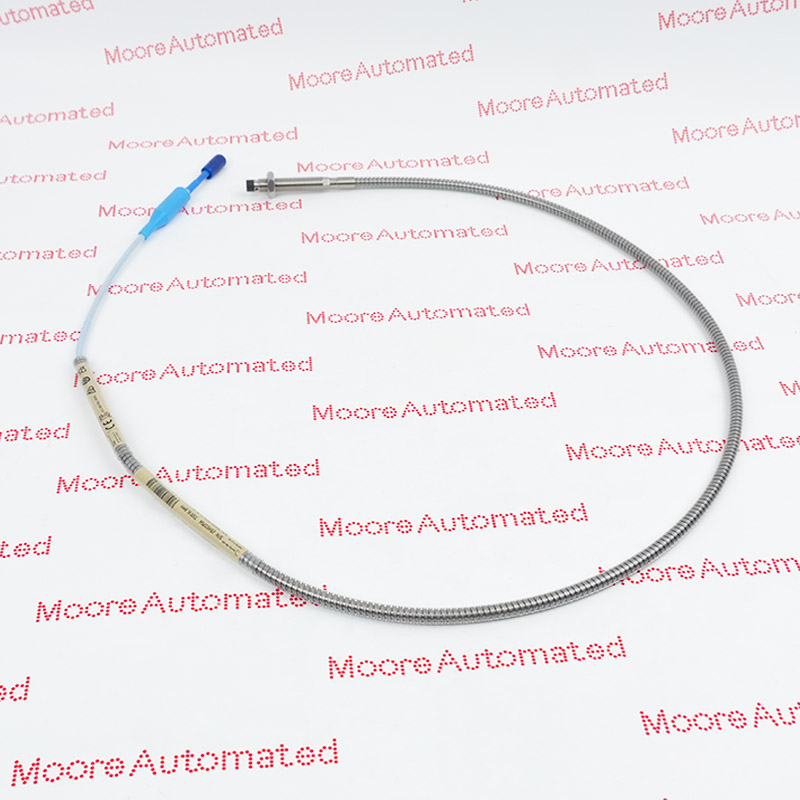

- 330104 3300 XL 8 mm Probe, M10 x 1 thread,with armor
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable4 with other nonXL 3300 series 5 mm and 8 mm transducer system components. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.
The 330104-00-05-10-01-00 Bently Nevada 3300 XL 8 mm Proximity Probes may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330104-00-05-10-01-00 3300 XL 8 mm Proximity Probes Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

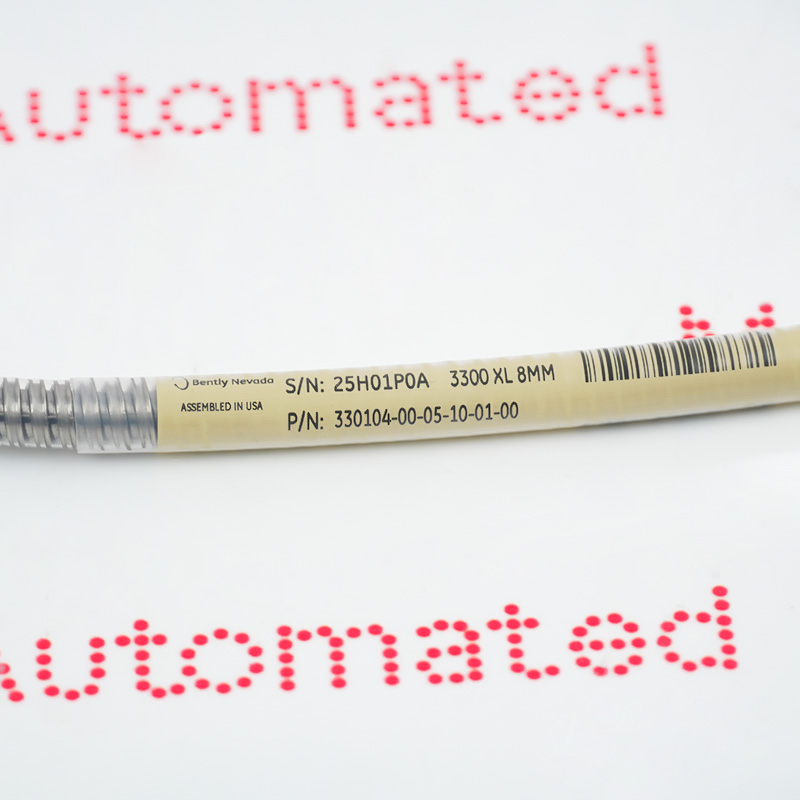

- Model: 330104-00-05-10-01-00
- Warranty: One-year warranty
- Condition: Brand new, original, in stock
- Product Family: 3300 XL 8 mm Proximity Transducer System
3300 XL 8 mm Proximity Probes, Metric:330104 3300 XL 8 mm Probe, M10 x 1 thread,with armor
330104-Axx-Bxx-Cxx-Dxx-Exx
A: Unthreaded Length Option
Order in increments of 10 mm Length configurations:
Maximum unthreaded length: 230 mm
Minimum unthreaded length: 0 mm
B: Overall Case Length Option
Order in increments of 10 mm Metric thread configurations:
Maximum case length: 250 mm
Minimum case length: 20 mm
C: Total Length Option
05 0.5 meter (1.6 feet)
10 1.0 meter (3.3 feet)
15 1.5 meter (4.9 feet)
20 2.0 meters (6.6 feet)
50 5.0 meters (16.4 feet)
90 9.0 meters (29.5 feet)
D: Connector and Cable-Type Option
01: Miniature coaxial ClickLoc connector with connector protector, standard cable
02: Miniature coaxial ClickLoc connector, standard cable
11: Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable
12: Miniature coaxial ClickLoc connector, FluidLoc cable
E: Agency Approval Option
00: Not required
05: CSA, ATEX, IECEx Approvals
Standard Scale Factor (SSF): Calibrated against standard AISI 4140 steel, with a calibration value of 200 mV/mil (7.87 V/mm).
Linear Measurement Range: Effective operating range of 80 mil, corresponding to a total physical gap displacement of 2.0 mm.
Material Composition: The probe body is machined from AISI 304 stainless steel, and the sensing tip is molded from high-performance polyphenylene sulfide (PPS), resistant to corrosion from high-temperature turbine oil and industrial solvents.
Interchangeability: The 1.0-meter total length option requires a 4.0-meter extension cable (e.g., unarmored cable 330130-040-00-00) to achieve the standard 5.0-meter total system length. Changing these pairing ratios will result in deviations from the calibration curves and linear range specifications.
