Features:
- SVM1-130L utilizing a high-speed FSSB (FANUC Servo Serial Bus) optical fiber linkage for synchronous command processing
- Accepts standard high-voltage 283V to 325V DC input paths

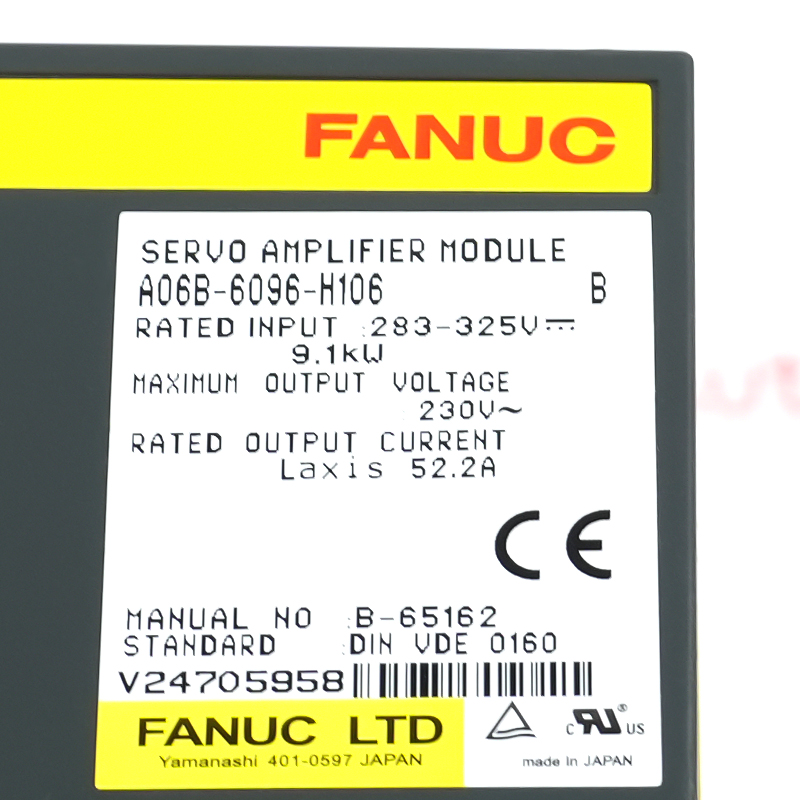

- Rated for 230V AC multi-phase output, delivering a continuous rated current of 52.5 Amps

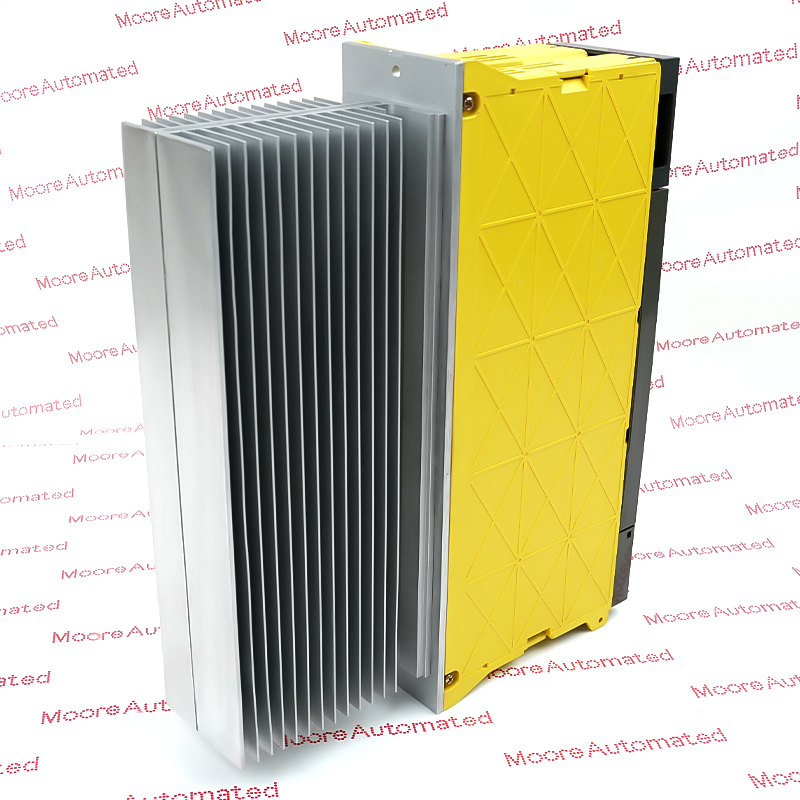

The FANUC A06B-6096-H106 servo amplifier is a high-efficiency single-axis servo amplifier. With a rated output power of 9.1 kW, it is suitable for a wide range of automation applications. The output voltage is 230 volts, supporting various applications. The input voltage range is 283 to 325 volts, allowing for easy installation in standard equipment environments. The amplifier operates within a temperature range of 0 to 40 degrees Celsius, enabling it to adapt to diverse application environments.
Furthermore, this servo amplifier can withstand vibrations up to 5G, adapting to dynamic conditions in the working environment. Moreover, it can operate effectively at altitudes up to 1000 meters, ensuring stable operation in various environments. Designed specifically for CNC applications, this product is a reliable choice for precision motion control tasks.
The A06B-6096-H106 General Electric AC servo amplifier module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
General Electric A06B-6096-H106 AC servo amplifier module (manual), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Fault status is displayed on a single-segment seven-segment LED display located behind the top cover. Referring to the FANUC Alpha servo amplifier official maintenance manual, the following main fault codes can be identified:
Alarm 1 (AL-1): Internal or external radiator cooling fan failure or reduced speed.
Alarm 2 (AL-2): Control circuit voltage too low. Insufficient logic power supply to the internal control power board.
Alarm 5 (AL-5): Main DC bus voltage too low. The shared DC bus voltage has dropped below the safe operating threshold.
Alarm 8 (AL-8): Excessive current flowing into the L-axis motor circuit. This indicates a short circuit in the motor power supply line, a burnt-out internal IGBT module, or a burnt-out motor winding.
1.Large Gantry Milling Machine X/Y Axes: Used to drive the main column or long worktable of heavy-duty bridge milling machines, requiring smooth movement of several tons of steel and iron materials under strict tolerance control.
2.Heavy-Duty Slant Bed CNC Lathe (Z-Axis): Directly applied to the Z-axis (longitudinal feed) of heavy-duty industrial lathes. This axis controls a large turret equipped with a heavy-duty tool post, capable of withstanding the high reaction forces generated by deep groove metal cutting.
3.Boiling Machine Column: Heavy-duty column (W-axis or Y-axis) used to drive horizontal boring machines (HBMs) for machining large engine blocks or wind turbine hubs.
4.Aerospace Skin Milling: High-precision axes used to drive large five-axis gantry milling machines for machining large aircraft wing skins and fuselage panels.
5.Automated Truss Welding Positioner: Used to operate heavy-duty rotary or linear positioning platforms to move structural steel frames during automated robotic welding processes.
6.FANUC α30/2000 and α30/3000 series: Heavy-duty industrial motors providing up to 30 Nm of stall torque.
7.FANUC α40/2000 series: Extra-large motors providing up to 40 Nm of continuous stall torque, typically used in deep-cut milling machine spindles or heavy-duty structural machinery.
8.FANUC αL26/3000 series: High-acceleration linear/compact high-torque motors designed for instantaneous high feed rates under load.
