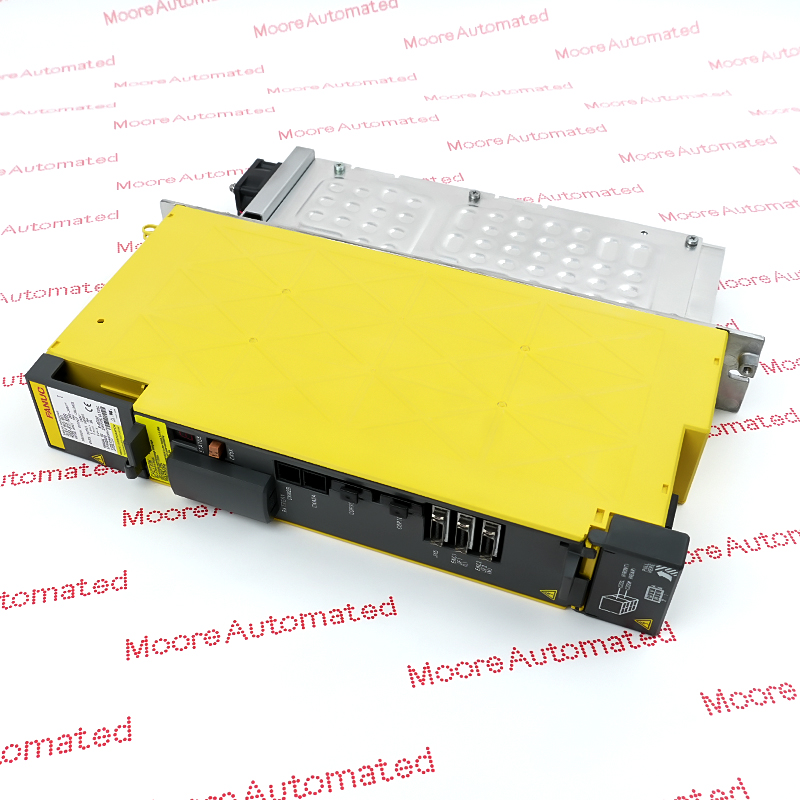

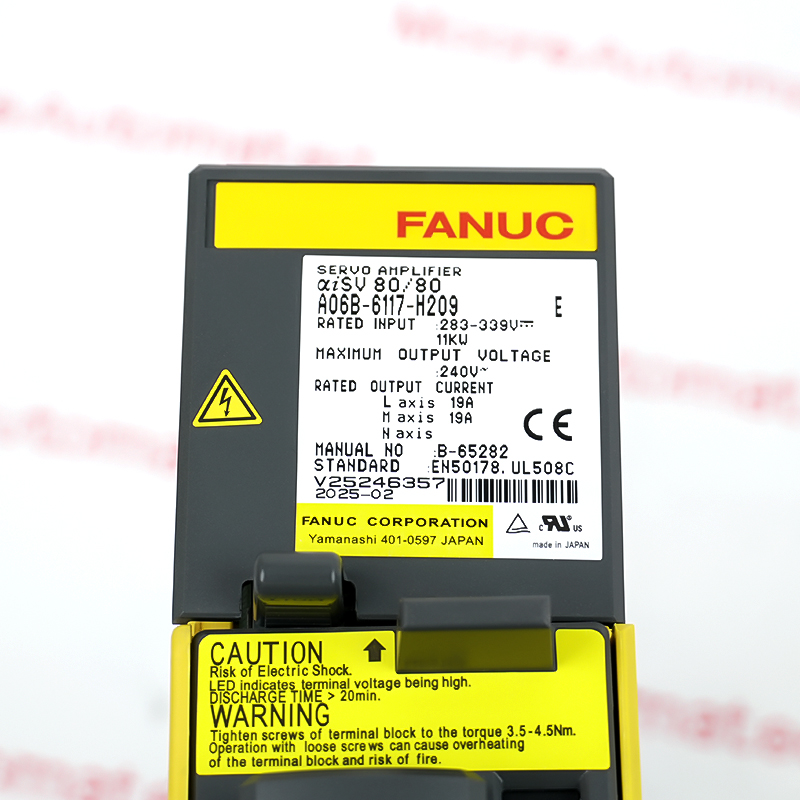

Features:
- Dual-Channel Motor Management: Drives two completely independent movement axes simultaneously from a single module footprint to minimize total enclosure space requirements.
- High-Speed Noise-Immune Communication: Employs specialized FSSB optical links to achieve instantaneous command-and-response processing without risking signal distortion.
- Industrial-Grade Power Capacity: Achieves a massive 80A current peak per axis to accommodate fast acceleration and deceleration demands in high-inertia operations.
The implementation of the A06B-6117-H209 represents a foundational step up in modern industrial production facility management. Factories requiring pinpoint accuracy under harsh, fast-paced processing schedules count on this type of dual-axis power electronics infrastructure to maintain assembly line cadence. By consolidating power delivery mechanisms for multiple axes into one tightly managed assembly, it streamlines electrical layouts, eliminates excessive wiring clutter, and fundamentally drives down operational overhead.
From heavy machinery execution to complex, multi-joint robotic maneuvers, the A06B-6117-H209 provides the essential electrical muscle and intelligence needed for high-tier automation. It receives direct commands from central control hubs and regulates energy feed down to individual motor coils with micron-level responsiveness. Whether deployed in automated milling centers, high-volume automotive plants, or specialized packaging lines, this unit safeguards system uptime and ensures long-term operational repeatability.
The A06B-6117-H209 General Electric 2-axis amplifier may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Schneider Electric 490NAA27103 Modbus Plus trunk cable manual(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 7-segment status indicator on the face of the module displays critical diagnostic codes:
01 (Inverter Overcurrent): Excessive current detected in the main circuit. Check for motor short circuits, grounding faults, or degraded internal insulation.
02 (Inverter Overvolt): DC link voltage exceeded safe operational thresholds. Often triggered by aggressive deceleration cycles; verify external dynamic braking resistors.
05 (DC Link Undervolt): Main power drop or failing input supply module. Inspect upstream power source contacts and the structural line voltage.
08 (FSSB Communication Error): Optical fiber network link severed or distorted. Inspect fiber optic cables for tight bend radii, scratches, or dust on the optical eyes.
Active Maintenance Tracking
Intermittent Fault Isolation: Connect a dedicated FANUC check-board into the hardware test points to graph current and speed command waveforms using an oscilloscope.
Thermal Performance Audits: Monitor internal heat-sink temperatures via the CNC diagnostic display screen to catch failing cooling fans before a thermal shutdown occurs.
The General Electric A06B-6117-H209 dual-axis servo module is deployed across complex high-precision automation systems requiring synchronized multi-axis control. It regularly serves as the primary drive for X-Y feed axes in high-volume CNC milling machines, vertical machining centers, and automated industrial lathes. Additionally, this module plays a critical role in heavy industrial robotics, driving coordinated joint movements within automotive welding cells and high-speed pick-and-place packaging lines.
