Features:
- Expands compatible terminal boards with enhanced relay output functionality for simplex and TMR systems.
- Provides 12 powered output circuits with individual fused relay protection and dedicated power distribution.
- Supports reliable industrial operation with surface-mount construction, wide environmental tolerance, and convection cooling.

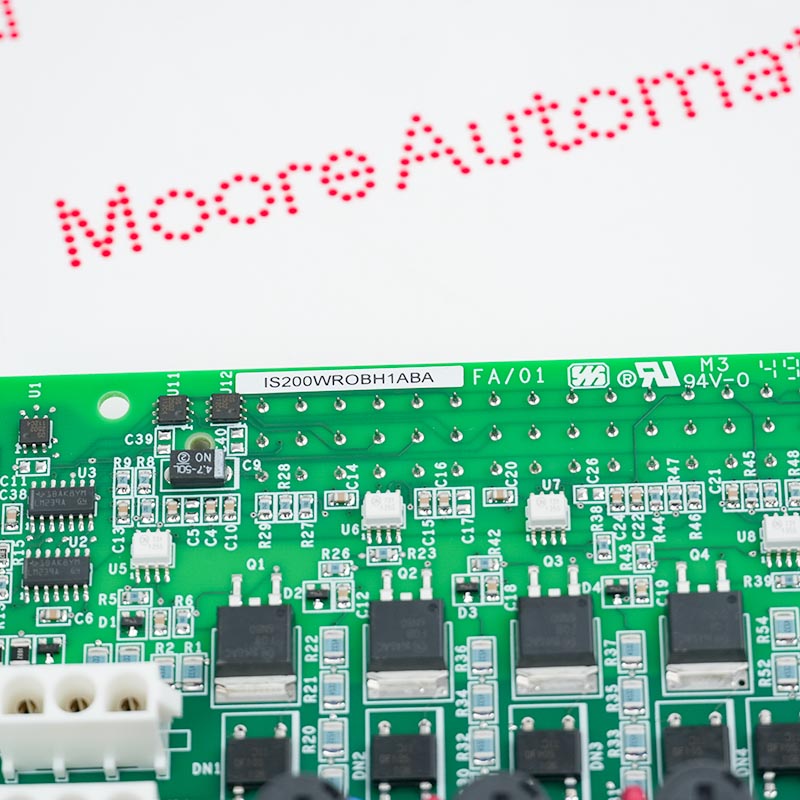

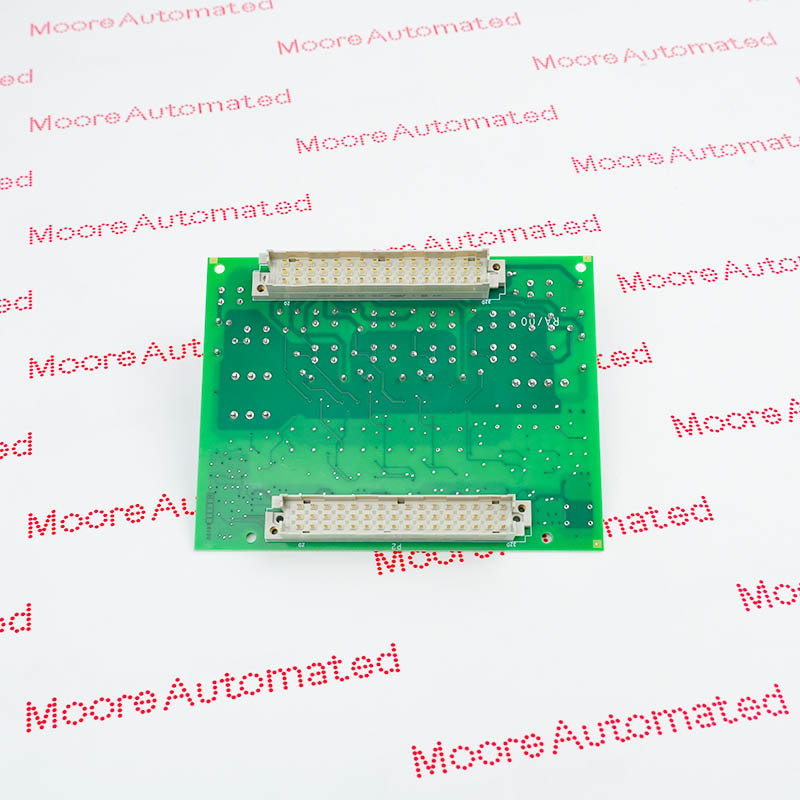

GE IS200WROBH1AAA Option board provides an effective method for extending relay output capabilities within compatible GE control platforms. The board supports both simplex and TMR system architectures by delivering the required relay power distribution arrangement while maintaining dependable electrical performance. Its powered output design contributes to consistent relay operation across multiple industrial applications. The compact dimensions also simplify installation where cabinet space is limited.
Built with surface-mount technology, GE IS200WROBH1AAA Option board is intended for continuous operation in demanding industrial environments. The combination of fused output circuits, specified operating temperatures from -30°C to 65°C, and free air convection cooling supports long-term reliability without additional cooling equipment. Operating humidity from 5% to 95% non-condensing further broadens installation flexibility across various automation and process control applications.
The IS200WROBH1AAA GE Option board may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE IS200WROBH1AAA Option board manual(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
GE IS200WROBH1AAA Option board is designed to expand compatible TDBS and TDBT terminal boards by providing enhanced relay output functionality for both simplex and TMR system architectures. The board integrates 12 powered fused output circuits, surface-mount technology, and dedicated relay power distribution to support reliable operation across compatible GE industrial control platforms.
Relay Output Configuration: Provides 12 powered output circuits with one fused circuit associated with each relay. Power input on JF1 pin 1 is fused, while the return path through JF1 pin 3 remains unfused.
Hardware Design: Built using surface-mount technology with compact dimensions of 15.9 × 17.8 cm, allowing seamless integration into compatible industrial control systems.
Environmental Performance: Operates reliably from -30°C to 65°C in 5% to 95% non-condensing humidity, with free air convection providing efficient cooling without additional hardware.
