Features:
- Product Type: High-Performance Communications/Control card
- HPM Assembly: HPMM card set
- Communications Processor: Motorola 68LC040

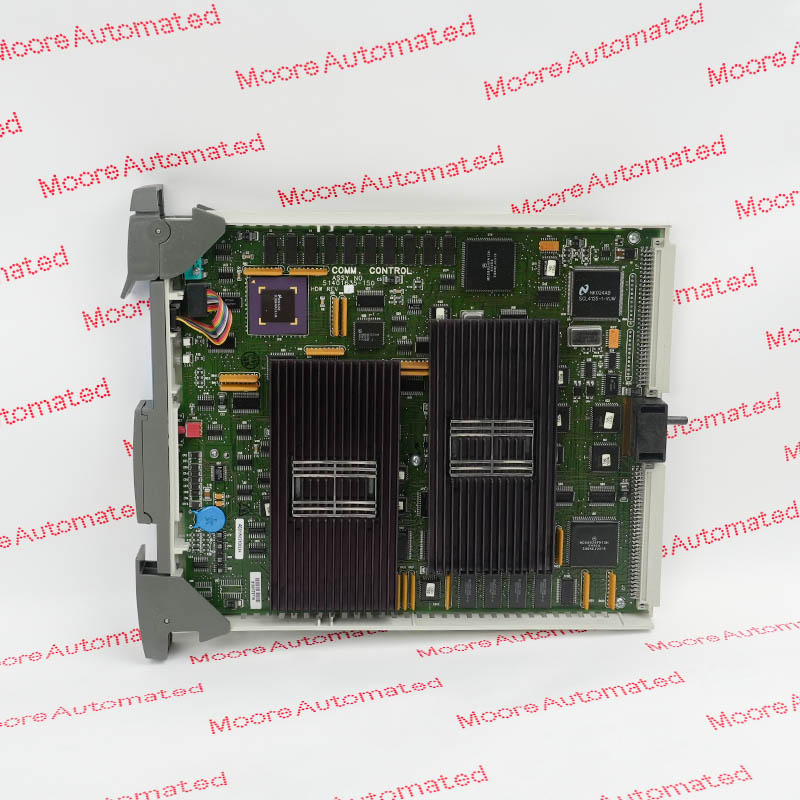

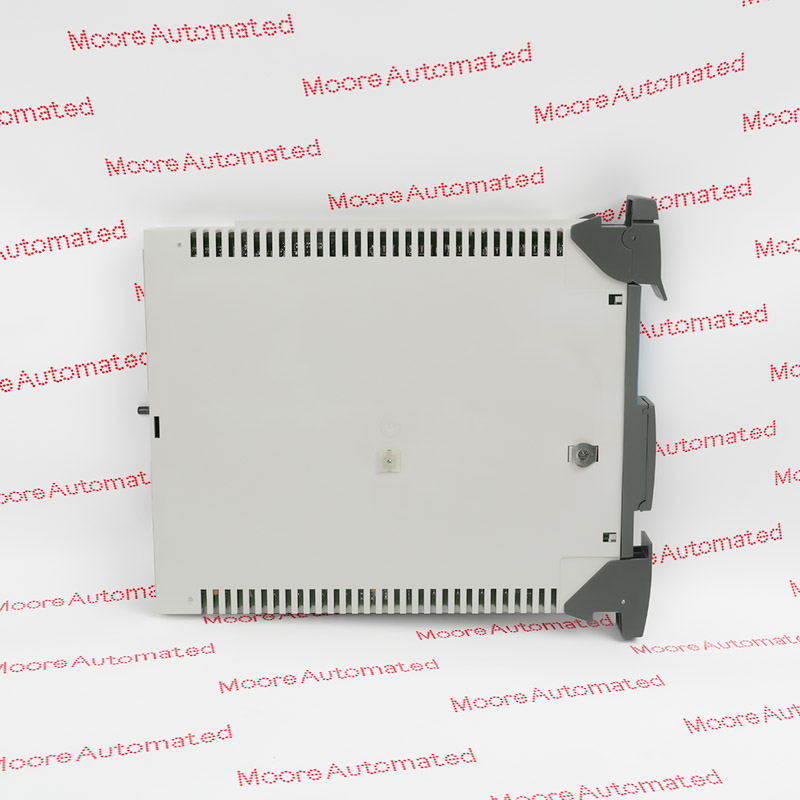

Honeywell 51401635-150 is a conformally coated High-Performance Communications/Control card for the Honeywell High-Performance Process Manager (HPMM). It combines the communication processor, control processor, processor memory, HPMM global-bus interface, redundancy interface, UCN interface connection and front-panel diagnostics required by the HPM card set.
In an HPMM card file, the Communications/Control card works with the High-Performance I/O Link card and the HPM UCN Interface module. Honeywell specifies communications with the Local Control Network through the Universal Control Network, communications with I/O Processors through the I/O Link, separate and shared processor memory, and HPMM redundancy control.
The Honeywell 51401635-150 occupies the first left-most HPMM card-file position, with the UCN Interface module mounted in the connector beneath it. Front indications include power and status LEDs, UCN A/B activity indications and a four-character diagnostic display. Honeywell identifies this card as obsolete and lists 51403988-150 as the replacement.
The Honeywell 51401635-150 may be supplied and supported by Moore Automated according to the official product lifecycle: Obsolete/Discontinued by OEM.
Honeywell 51401635-150 HPM High-Performance Communication/Control Card Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, licenses and related items are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Technical details:
- Product Type: High-Performance Communications/Control card
- HPM Assembly: HPMM card set
- Communications Processor: Motorola 68LC040
- Control Processor: Motorola 68040
- Network Interface: Universal Control Network through HPM UCN Interface module
- I/O Communications: I/O Link Interface to IOPs and I/O Link Extenders

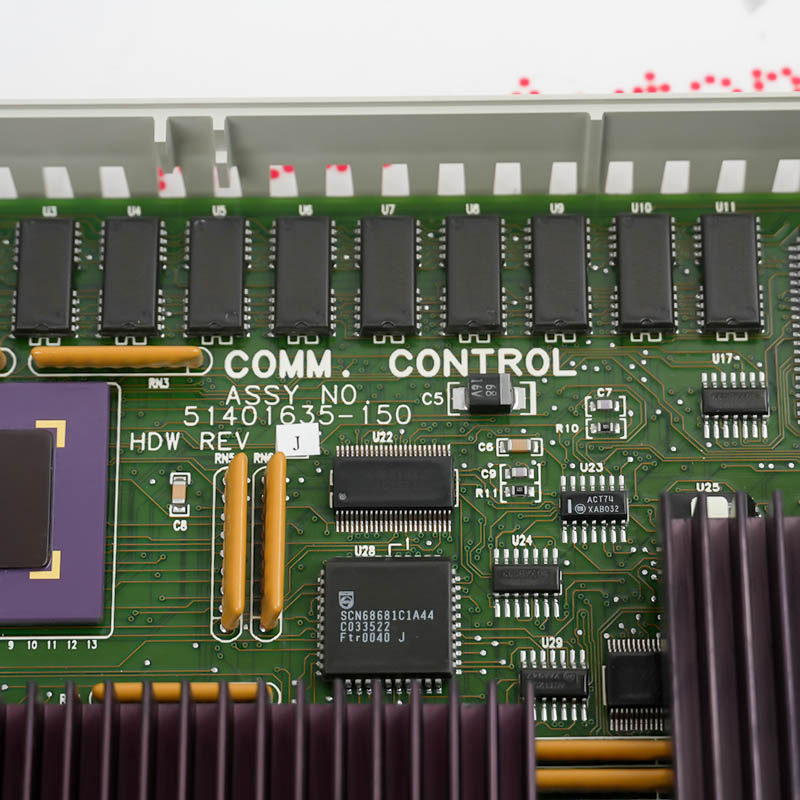

Honeywell 51401635-150 is the conformally coated High-Performance Communications/Control card used in an HPMM card set. The card contains Motorola 68LC040 communications and Motorola 68040 control processors, separate and shared memory, an HPMM global-bus interface, a redundancy interface, a connection to the HPM UCN Interface module, power and status LEDs, UCN A/B activity indications, and a four-character diagnostic display. It operates with the High-Performance I/O Link card and HPM UCN Interface module in the two left-most HPMM positions. Honeywell marks 51401635-150 obsolete and lists 51403988-150 as its replacement, so system release, coating, companion cards, UCN cabling and redundancy configuration must be checked before substitution.
Compatibility: It is designed for the High-Performance Process Manager card file used in Honeywell TDC 3000 and UCN-based control architecture. Compatibility must include the matching HPM I/O Link card, HPM UCN Interface module, card file and system release.
Configuration: Confirm the HPMM card-file type and slot, disconnect power according to site procedures, use a properly connected ESD wrist strap, and verify the matching I/O Link and UCN Interface assemblies before inserting the card.
Installation: Before replacing the card, verify the complete part number, the conformally coated configuration, the HPM card file and the matching I/O Link and UCN Interface assemblies. Follow Honeywell power-down and electrostatic-discharge procedures, then seat the card and connectors without forcing the backplane connection.
Commissioning: After installation, check the power and status indicators, the UCN A and B communication indications and the four-character diagnostic display. For redundant HPMM configurations, confirm synchronization and normal control operation before returning the process to service.
