Features:
- 1.0 kW High-Performance Programmable Switching DC Power Supply
- DCS Series - Switched Mode DC Power Supply
- Dual 10-turn potentiometers on the front panel permit high-resolution local tuning
This power supply has an output voltage range of 0-50VDC and an output current adjustment range of 0-20A. It is primarily used to provide a highly stable and continuously adjustable low-ripple DC power supply for semiconductor manufacturing, automotive electronic component aging testing, avionics equipment testing, communication equipment testing, and laboratory research and development.
The module's front panel features an intuitive dual digital display and a high-resolution 10-turn potentiometer, allowing users to simultaneously monitor voltage and current parameters. It also features automatic mode switching, seamlessly switching between constant voltage (CV) and constant current (CC) modes according to load changes.

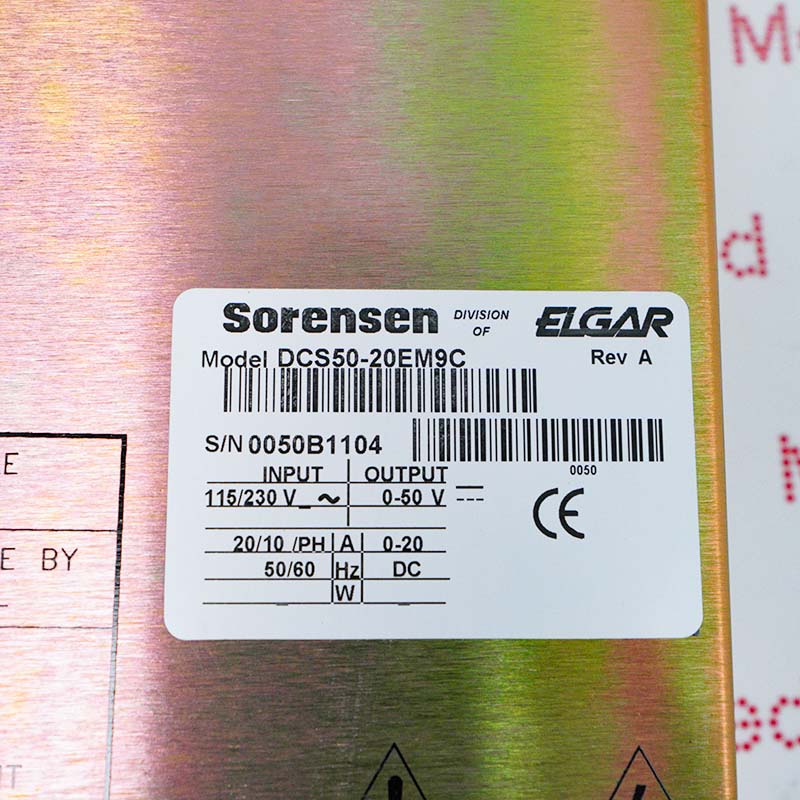

The DCS50-20EM9C DCS50-20E SORENSEN Switching DC Power Supply Module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
SORENSEN DCS50-20EM9C DCS50-20E Switching DC Power Supply Module INFO(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Due to their high power density and extremely low ripple/noise tracking capability, these devices are widely used in standard B2B automation systems:
Automotive Component Aging Testing: Simulates automotive battery voltage fluctuations (0-50V range, suitable for 12V, 24V, and 42V architectures) for stress testing of sensors, modules, and sub-assemblies.
Aerospace and Avionics Testing: Provides clean, stable power rails for component verification benches.
Battery Charging and Simulation: Used as a current-limiting power supply for safely charging lithium-ion battery packs or analyzing discharge characteristics.
Laboratory R&D and Process Control: Used as a base bench power supply for semiconductor development, beam control, and automated manufacturing quality assurance systems.
